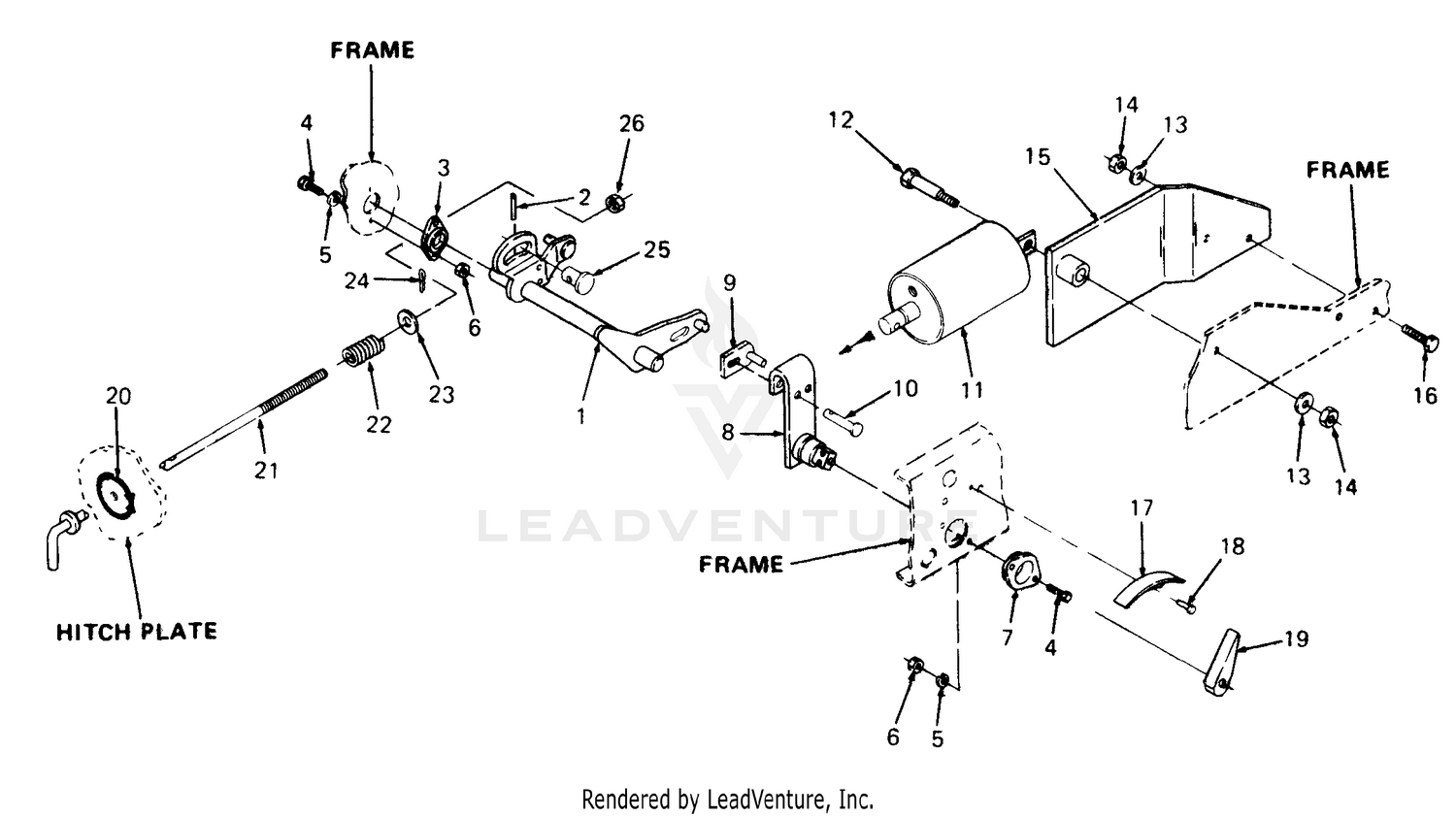

| Ref | Part Number | Description |
|---|
| 1 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 1 |
703-2001 |
SHAFT ASSY, LIFT Not Available Price: |
| 1 |
94-1257 |
DISCONTINUED Price: Call Us |
| 2 |
107-4803 |
CAP-SEALING This part replaces 42-7080. Price: $14.47 |
| 2 |
532440452 |
SHIELD.PNT.SIDE.OUTER.LH.ORANG This part replaces 532162952. Price: $17.99 |
| 2 |
715-0114 |
Pin, Spiral Spring, 1/4 Dia X 1.50 Lg Price: $8.68 |
| 3 |
532008393 |
STAKE PIN TI Price: $19.99 |
| 3 |
748-3041 |
BUSHING (LH) LIFT Not Available Price: |
| 3 |
75-4900 |
BRG SET, CRANKSHAFT STD Price: $187.56 |
| 4 |
67-2200 |
SEAL Price: $11.20 |
| 4 |
710-3015 |
Screw, Hex Cap, 1/4-20 X .75 lg GR5 Price: $3.65 |
| 4 |
812000035 |
RING, KLIP Price: $3.99 |
| 5 |
595901601 |
GSPW Bolts This part replaces 532180847. Price: $2.99 |
| 5 |
67-2250 |
DISCONTINUED Price: Call Us |
| 5 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 6 |
532008394 |
SPRING TI Price: $7.99 |
| 6 |
712-3006 |
HEX NUT Price: $4.05 |
| 7 |
532008392 |
BRACKET.LATCH.STAKE.3.20.BLACK Price: $4.99 |
| 7 |
67-3010 |
CAM SHAFT Price: $1,102.40 |
| 7 |
748-3040 |
BUSHING (RH) Not Available Price: |
| 8 |
532109230 |
SPRING CRT Price: $4.99 |
| 8 |
56-0480 |
WOODRUFF KEY Price: $3.88 |
| 8 |
703-2006 |
LIFT BRACKET ASSEMBLY Not Available Price: |
| 9 |
532440444 |
SHIELD.TINE.DRT17.TILLER.ORANG This part replaces 532403889. Price: $49.99 |
| 9 |
67-3030 |
DISCONTINUED Price: Call Us |
| 9 |
703-0176 |
PIN ASSEMBLY-LIFT Not Available Price: |
| 10 |
67-3000 |
DISCONTINUED Price: Call Us |
| 10 |
711-3030 |
CLEVIS PIN 1/2X2.1 Not Available Price: |
| 11 |
42-9490 |
SCREW - CAP Price: $0.30 |
| 11 |
596436301 |
Nuts This part replaces 873220500. Price: $2.99 |
| 12 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040500. Price: $2.99 |
| 12 |
67-3020 |
GEAR Price: $533.60 |
| 12 |
738-3008 |
SHOULDER BOLT Not Available Price: |
| 13 |
67-3090 |
GEAR ASSEMBLY Price: $393.33 |
| 13 |
736-3019 |
Washer, Flat, .531 X 1.06 X .134 Thk Price: $5.45 |
| 13 |
872110510 |
BOLT.CARRIAGE.5/16-18 Price: $4.99 |
| 14 |
584459301 |
BRACKET.TINE.SHIELD.BLACK This part replaces 532124343. Price: $32.99 |
| 14 |
67-3040 |
PLATE Price: $13.46 |
| 14 |
712-3022 |
Nut, Hex Center Lock, 1/2-13 GR5 Price: $3.61 |
| 15 |
532440450 |
SHIELD.SIDE OUTER.RH.ORANGE This part replaces 532162953. Price: $17.99 |
| 15 |
56-1060 |
DISCONTINUED Price: Call Us |
| 15 |
703-0174 |
BRACKET ASSEMBLY-CYLINDER Not Available Price: |
| 16 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873900400. Price: $3.99 |
| 16 |
710-3032 |
Screw, Hex Cap, 1/2-13 X 1.25 Lg GR5 Price: $5.66 |
| 17 |
67-3070 |
GEAR Price: $237.67 |
| 17 |
703-0828 |
Bracket, Height Indicator Price: Call Us |
| 18 |
728-0141 |
POP RIVET Not Available Price: |
| 18 |
872040410 |
BOLT Price: $3.99 |
| 19 |
532102701 |
GRIP CRT Price: $9.99 |
| 19 |
731-3114 |
INDICATOR-HEIGHT Not Available Price: |
| 20 |
42-7840 |
SUNK KEY Price: $9.67 |
| 20 |
779-3563 |
LABEL-DOWN STOP Not Available Price: |
| 20 |
873220600 |
NUT.HEX.3/8-16UNC Price: $4.99 |
| 21 |
531154801 |
SERVICE KIT STAKE STAKE.DEPTH. This part replaces 532102156. Price: $8.99 |
| 21 |
67-3060 |
SHAFT Price: $394.25 |
| 21 |
747-3158 |
STOP ADJUSTMENT ROD Not Available Price: |
| 22 |
67-3050 |
BEARING Price: $29.09 |
| 22 |
874930632 |
BOLT.375-16 Price: $5.99 |
| 22 |
932-0645 |
SPRING .50IDX 1.00 Not Available This part replaces 732-0645. Price: |
| 23 |
532004440 |
HINGE CRT Price: $3.99 |
| 23 |
67-3080 |
SNAP RING Price: $1.67 |
| 23 |
736-3064 |
FLAT WASHER .656 x 1.312 X.074 Not Available Price: |
| 24 |
596133401 |
Bolts This part replaces 872140404. Price: $1.99 |
| 24 |
715-0104 |
PIN, INTERNAL COTTER Not Available Price: |
| 25 |
532006712 |
VINYL CAP Price: $3.99 |
| 25 |
711-3317 |
CLEVIS, .750 x 1.00 LG Not Available Price: |
| 26 |
532109227 |
PAD IDLER TI Price: $3.99 |
| 27 |
532440448 |
SHIELD.LEVELING.17".ORANGE This part replaces 532125016. Price: $69.99 |
| 28 |
532120588 |
PIN.HINGE.TILLER Price: $6.99 |
| 29 |
585414301 |
KIT.TILLER.SIDE.SHIELD.BLACK This part replaces 532403960. Price: $37.99 |
| 31 |
532423463 |
RP.STAKE.DEPTH.DRAG.TILLR.GREY This part replaces 532403987. Price: $11.99 |
| 32 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $2.99 |
| 33 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
