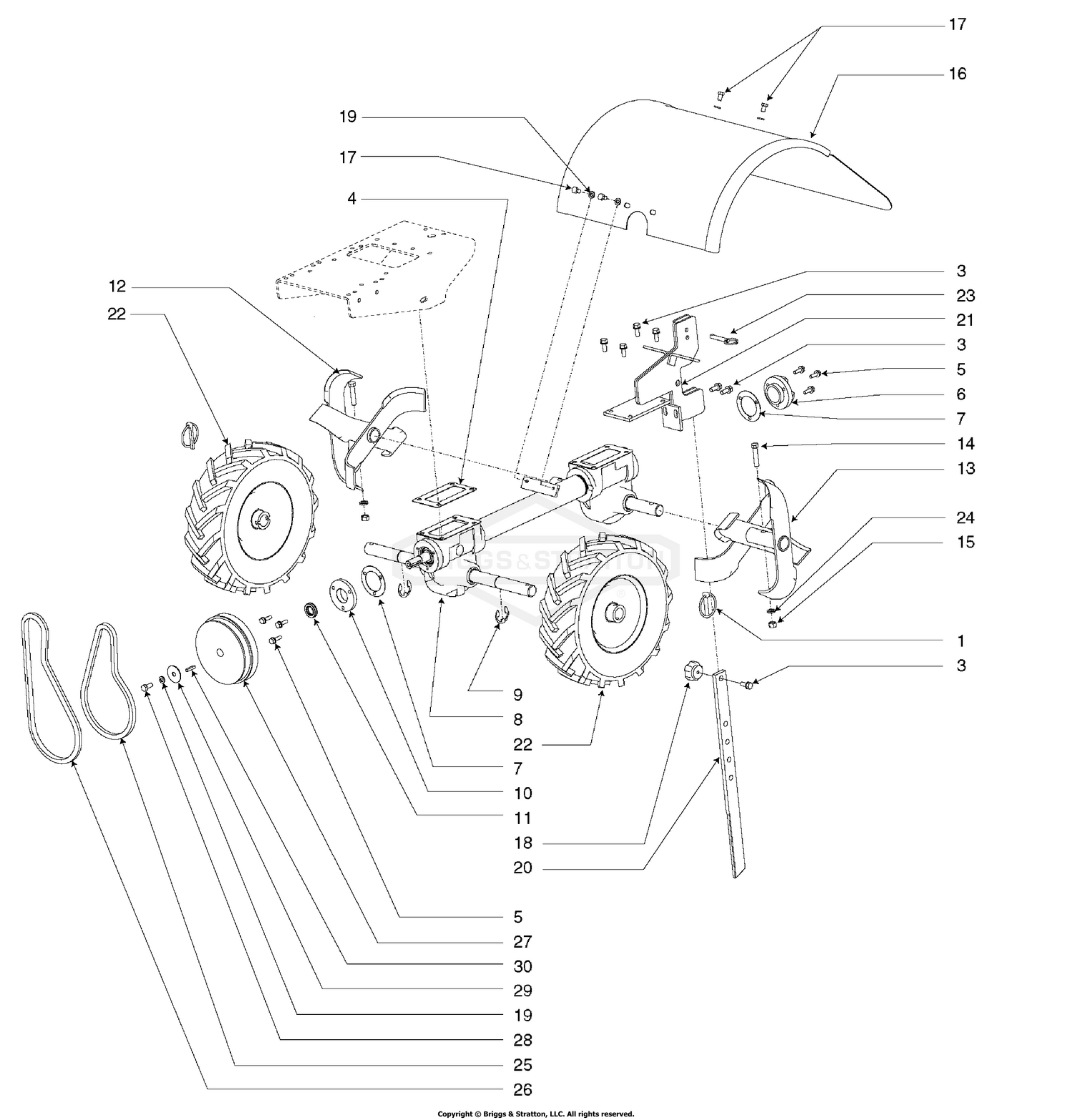

| Ref | Part Number | Description |
|---|
| 1 |
703160 |
PIN This part replaces 1716776. Price: $4.75 |
| 2 |
1738764YP |
ASMY TRANSMISSION This part replaces 1738764. Price: $1,399.99 |
| 3 |
5025011X6SM |
BOLT, 5/16-18 X 3/4" This part replaces 1716780. Price: $3.19 |
| 4 |
1716789SM |
GASKET, Tiller Housing & Transmission Cover This part replaces 1716789. Price: $14.01 |
| 5 |
1738765YP |
SCREW, M6 X 25MM This part replaces 1738765. Price: $11.99 |
| 6 |
1738766YP |
COVER REAR This part replaces 1738766. Price: $65.99 |
| 7 |
1716792SM |
GASKET, Front Rear Bearing Cap This part replaces 1738767. Price: $14.01 |
| 9 |
1738768 |
E-CLIP Price: Call Us |
| 10 |
1738769YP |
COVER FRONT TRANS This part replaces 1738769. Price: $65.99 |
| 11 |
1738770YP |
SEAL, OIL DRIVESHAFT This part replaces 1738770. Price: $27.49 |
| 12 |
1721514SM |
TINE ASSEMBLY, RH This part replaces 1721514. Price: $153.11 |
| 13 |
1721513SM |
TINE ASSEMBLY, LH This part replaces 1721513. Price: $153.11 |
| 14 |
1921971 |
BOLT, 3/8-16 x 1-3/4 Price: Call Us |
| 15 |
703347 |
NUT, 3/8-16 This part replaces 7091585. Price: $4.26 |
| 16 |
1721512SM |
HOOD 616RT This part replaces 1721512. Price: $176.54 |
| 17 |
704317 |
SCREW, 5/16-18X1/2 This part replaces 1920787. Price: $3.94 |
| 18 |
1733098SM |
KNOB, Internal, 5/16 This part replaces 1733098. Price: $8.84 |
| 19 |
7090187 |
WASHER, Locking, Spring, 5/16 Price: Call Us |
| 20 |
1738652YP |
STAKE DRAG This part replaces 1738652. Price: $83.99 |
| 21 |
1738670YP |
TAIL MOUNT This part replaces 1738670. Price: $164.99 |
| 22 |
1721525SM |
WHEEL, Tire Assembly, Left This part replaces 1721525. Price: $117.86 |
| 23 |
1738771YP |
PIN DETENT 5/16 X 2 This part replaces 1738771. Price: $30.49 |
| 24 |
018X31MA |
WASHER, Spring Lock, 3/8 This part replaces 720178. Price: $3.73 |
| 25 |
1716766SM |
BELT, Forward This part replaces 1716766. Price: $21.10 |
| 26 |
37X139MA |
BELT 3/8 X 31 G PWR This part replaces 1722144. Price: $20.47 |
| 27 |
1722163SM |
PULLEY, Transmission 2 Groove This part replaces 1722163. Price: $109.99 |
| 28 |
703336 |
CAPSCREW, 5/16-24X.75 This part replaces 1921515. Price: $3.95 |
| 29 |
1716770SM |
WASHER This part replaces 1716770. Price: $5.89 |
