Home / OPE / *MTD Legacy 1985-2005 / Coast to Coast / 14-Garden Tractors / 1985 Models / 045-0809 (1985) / Parts

Parts

Parts

Parts (94)

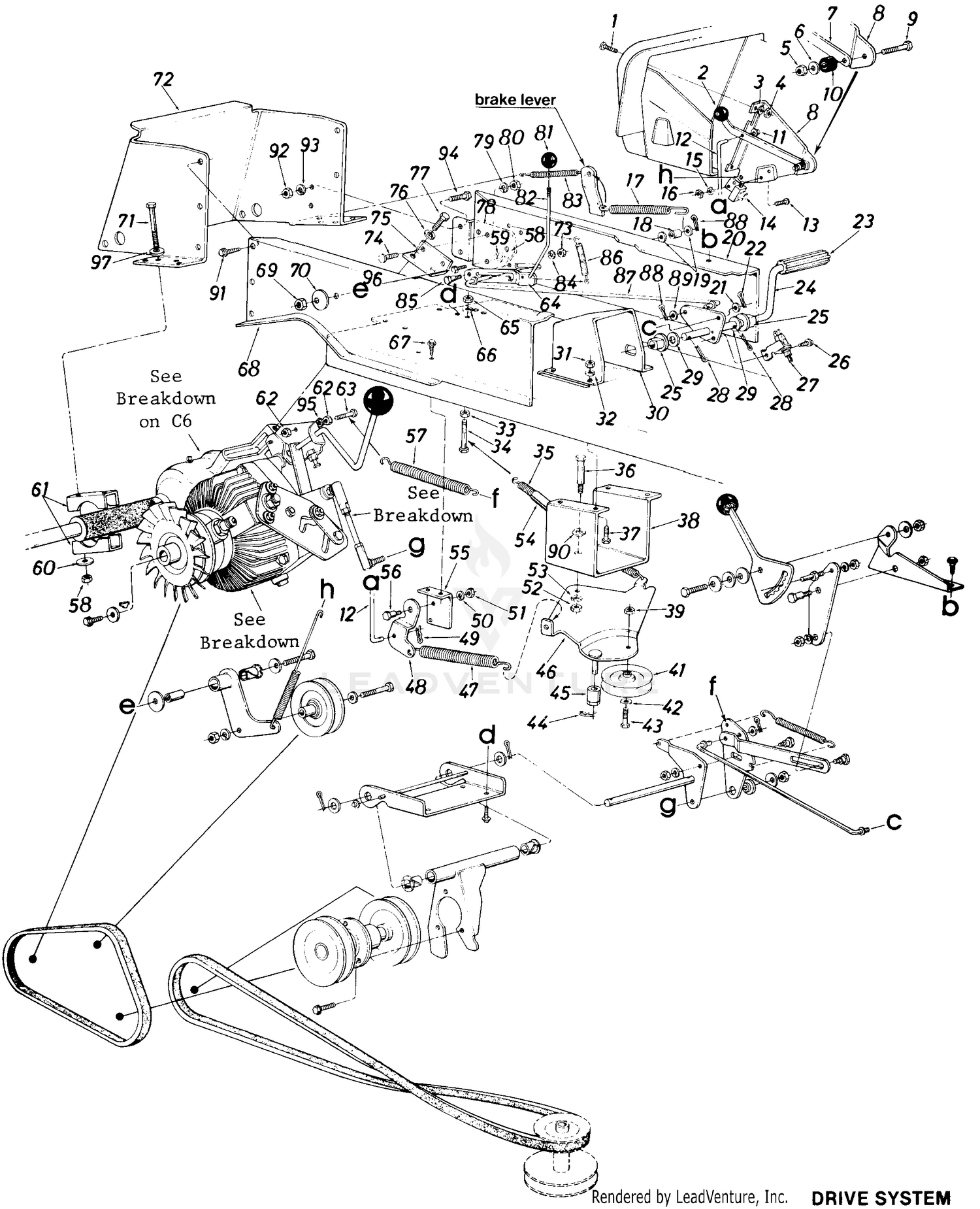

RefPart NumberDescription
1 710-0286 Truss Mach. Scr. 1/4-20 x .50" Lg. Price: $3.86
2 920-0232 Knob This part replaces 720-0165. Price: $9.11
3 N/A UNKNOWN
4 712-0271 Hex Sems Nut 1/4-20 Thd. Price: $3.78
5 912-0107 Hex L-Nut 1/4-20 Thd This part replaces 712-0107. Price: $4.06
6 736-0173 Fl-Wash. 1/4" I.D. x .75" O.D. Price: $3.76
7 747-0513 BLADE CLUTCH LEVER Not Available Price:
8 13950 DECK CLTCH CONT. BRKT. Not Available Price:
9 710-0106 Hex Bolt 1/4-20 x .75" Lg. Price: $3.66
10 735-0126A RUBBER WASHER Not Available This part replaces 735-0126. Price:
11 726-0106 PUSH NUT This part replaces 7260106. Price: $3.37
12 747-0307 DECK CONTROL ROD Not Available Price:
13 710-0473 Truss Mach. Scr. #10-24 x .50" Lg.* Price: $3.90
15 936-0147 EXTERNAL WASHER #10 Not Available This part replaces 736-0147. Price:
16 712-0121 Hex Nut #10-24 Thd.* Price: $3.75
17 732-0475 Extension Spring .75" O.D. x 5.56" Lg. Price: Call Us
18 750-0497 Spacer.375" I.D. x .625" O.D. x .445" Lg. Price: $9.24
19 736-0267 FLAT WASHER .38X.88 Price: $3.90
20 13847 Side Panel Upper Frame-L.H. Price: Call Us
21 736-0267 FLAT WASHER .38X.88 Price: $3.90
22 714-0507 Cotter Pin 3/32" Dia. x .75" Lg. * Price: $3.93
23 735-0239A FOOT PAD This part replaces 735-0196. Price: $10.76
24 16164 Foot Pedal Brkt. Ass'y. Price: Call Us
25 948-0209 FLANGE BEARING This part replaces 748-0209. Price: $19.32
26 710-0599 Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86
27 925-0268 SWITCH Not Available This part replaces 725-0268. Price:
28 714-0115 Cotter Pin 1/8" Dia. x 1.00" Lg . Price: $3.48
29 736-0187 Fl-Wash. .640" I.D. x .24"O.D. Price: $4.02
30 12850 SUPPORT-ST Not Available Price:
31 712-3010 HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89
32 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
33 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
34 710-0510 Hex Bolt 1/4-20 x 2.0" Lg.* Price: $9.78
35 732-0308A Spring, Extension, .50 Dia. x 6.37 This part replaces 732-0308. Price: $10.50
36 938-0155 Shoulder Bolt This part replaces 738-0155. Price: $6.01
37 710-0376 Hex Bolt 5/16-18 x 1.00" Price: $3.66
38 13826 BRACKET-ID Not Available Price:
39 712-0181 Hex L-Nut 3/8-16 Thd. Price: $3.90
41 756-0487 Idler Pulley This part replaces 756-0293. Price: $45.43
42 736-0300 Fl-Wash. 3/8" I.D. Price: $3.93
43 710-3005 Hex Bolt 3/8-16 x 1.25" Lg. This part replaces 710-0342. Price: $3.61
44 714-0104 Cotter Pin 5/16" Rod Price: $3.90
45 748-0287 Spacer Price: Call Us
46 13893 Idler Brkt. Ass'y. Price: Call Us
47 932-0478 Spring, Extension This part replaces 732-0478. Price: $11.56
48 13887A BRACKET-DECK CONTROL Not Available This part replaces 13887. Price:
49 714-0104 Cotter Pin 5/16" Rod Price: $3.90
50 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
51 712-3010 HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89
52 712-3010 HEX NUT 5/16-18 This part replaces 712-0267. Price: $3.89
53 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
54 731-0757-4 CONVOLUTED CONDUIT Not Available This part replaces 731-0483. Price:
55 13833 PARKING BRAKE CAM MTG. BRKT. Not Available Price:
56 938-0155 Shoulder Bolt This part replaces 738-0155. Price: $6.01
57 932-0384 EXTENSION SPRING Not Available This part replaces 732-0384. Price:
58 712-0798 Hex Nut 3/8-16 Thd. Price: $3.86
59 736-0169 L-Wash. 3/8" I.D. Price: $3.33
60 736-0331 Bell-Wash. .39" I.D. x 1.13" O.D. Price: $3.50
61 13892 BRACKET-AX Not Available Price:
62 912-3057 Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94
63 710-0624 Hex Self-Tap Scr. 5/16-24 x 1.5 " Price: $5.37
64 16170 Parking Brake Cam Price: Call Us
65 912-0287 HEX NUT 1/4-20 Not Available This part replaces 7120287. Price:
66 936-0329 L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90
67 710-0599 Hex Wash. Hd. S-Tap Scr. 1/4-20 x .50" Lg. Price: $3.86
68 16150 Side Panel Upper Frame-R.H. Price: Call Us
69 712-0241 Hex Nut 3/8-24 Thd. Price: $3.86
70 736-0227 Fl-Wash. .39" I.D. x 1.5" O.D. Price: $5.78
71 710-0316 HEX SCREW 3/8-16 x 3.50 G22 Not Available Price:
72 13813 HITCH PIATE Not Available Price:
73 712-0798 Hex Nut 3/8-16 Thd. Price: $3.86
74 710-0617 Rib Neck Scr. 3/8-24 x 1.0" Price: $3.76
75 16152 Mounting Brkt. Transaxle Price: Call Us
76 736-0169 L-Wash. 3/8" I.D. Price: $3.33
77 710-0514 Hex Bolt 3/8-16 x 1.00" Lg. (Grade 5) Price: $3.78
78 16169 PLATE-REIN Not Available Price:
79 736-0169 L-Wash. 3/8" I.D. Price: $3.33
80 712-0241 Hex Nut 3/8-24 Thd. Price: $3.86
81 720-0166 THROTTLE KNOB Not Available Price:
82 747-0672 LINK-PARKING Not Available Price:
83 932-0409 EXTENSION SPRING Not Available This part replaces 732-0409. Price:
84 712-0798 Hex Nut 3/8-16 Thd. Price: $3.86
85 738-0147 SHOULDER SCREW .500 DIA x .170 Not Available Price:
86 932-0409 EXTENSION SPRING Not Available This part replaces 732-0409. Price:
87 747-0505 BRAKE ROD Not Available Price:
88 714-0507 Cotter Pin 3/32" Dia. x .75" Lg . Price: $3.93
89 736-0267 FLAT WASHER .38X.88 Price: $3.90
90 936-0141 Spr. Wash. 7/16" I.D. This part replaces 736-0141. Price: $6.01
91 710-0726 Hex AB-Tap Scr. 5/16 x .75" Lg . Price: $3.82
92 912-3057 Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94
93 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
94 710-0157 Hex Bolt 5/16-24 x .75" Lg. Price: $3.90
95 936-0119 Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29
96 710-0216 Hex Bolt 3/8-16 x .75" Lg.* Price: $3.93
