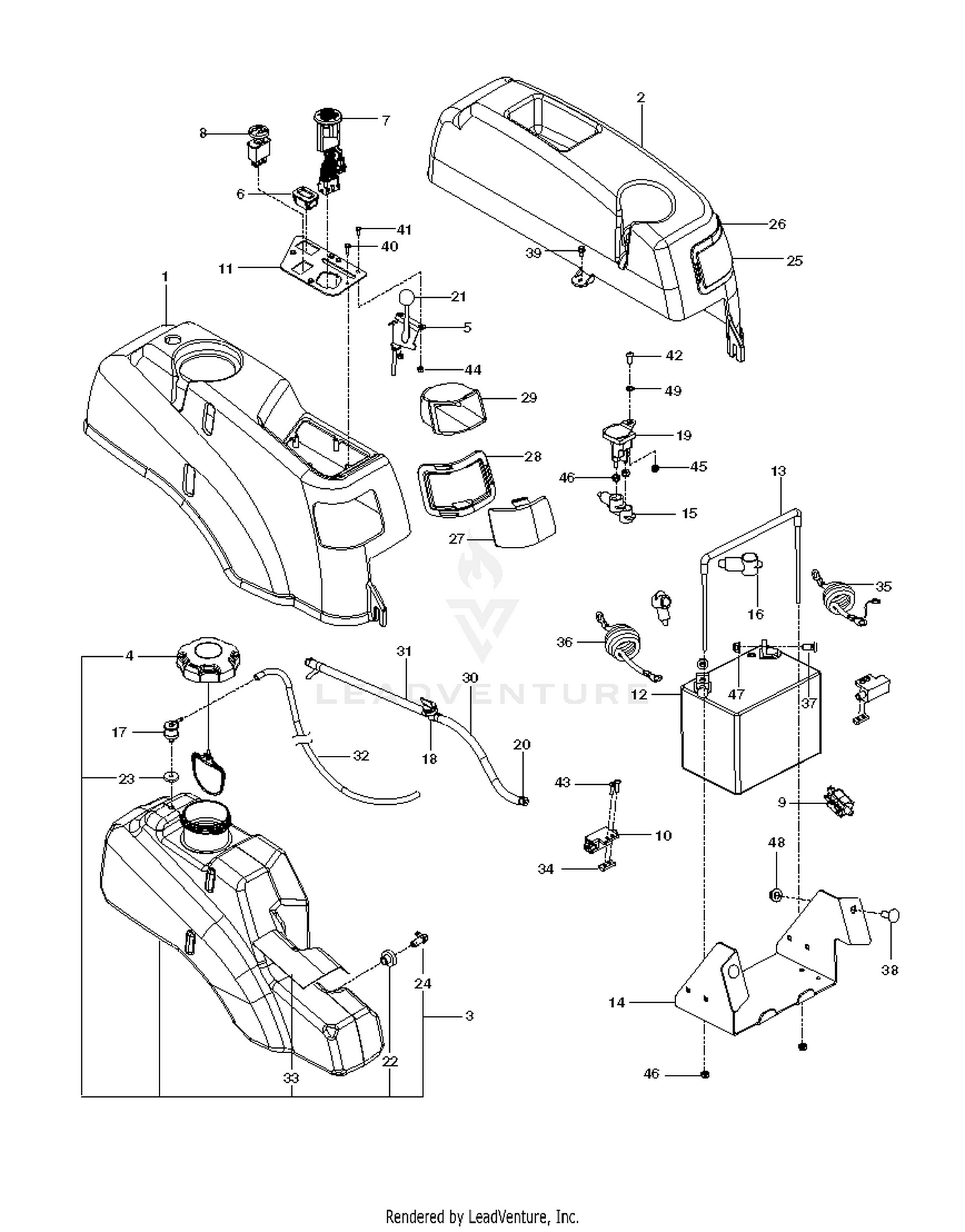

| Ref | Part Number | Description |
|---|
| 1 |
578178901 |
FENDER RT, GRAY Price: $99.99 |
| 1 |
70-3880 |
PLATE Price: $15.80 |
| 2 |
539130374 |
FENDER, LT Price: $74.99 |
| 2 |
99-2233 |
RACK - CONTROL This part replaces 70-3840. Price: $85.34 |
| 3 |
599306304 |
FUEL TANK, RZ, 2.25" NECK, 202 This part replaces 578180601. Price: $229.99 |
| 3 |
70-3860 |
WASHER Price: $4.57 |
| 4 |
575018103 |
CAP 3.5IN SEALED This part replaces 575018101. Price: $27.99 |
| 4 |
70-3960 |
DISCONTINUED Price: Call Us |
| 5 |
597524002 |
THROTTLE This part replaces 539102732. Price: $37.99 |
| 5 |
70-3930 |
GASKET Price: $11.43 |
| 6 |
594919101 |
GUAGE.SRVCMNDR.HRMTR. This part replaces 532401763. Price: $19.99 |
| 6 |
70-6850 |
BEARING Price: $67.75 |
| 7 |
586590703 |
KIT.SMART.SWITCH.MY13.ZTR This part replaces 581420402. Price: $299.99 |
| 7 |
70-3710 |
PLATE Price: $2.92 |
| 8 |
582107601 |
SWITCH.PTO.8TERMINAL.STD.BLK This part replaces 532174652. Price: $24.99 |
| 8 |
70-3690 |
RING Price: $2.29 |
| 9 |
539113792 |
SWITCH, BRAKE 3P Price: $14.99 |
| 9 |
70-3900 |
PACKING Price: $1.27 |
| 10 |
539101080 |
SWITCH, INTERLOCK This part replaces 532109553. Price: $14.99 |
| 10 |
70-3950 |
SCREW Price: $4.71 |
| 11 |
581826101 |
Price: Call Us |
| 11 |
70-3570 |
SCREW Price: $0.94 |
| 12 |
579411601 |
BATTERY, 12 V 300 AMP DRY This part replaces 539102436. Price: $129.99 |
| 12 |
70-3560 |
PINION Price: $26.27 |
| 13 |
539131209 |
BATTERY TIE DOWN ASSEMBLY Price: $27.99 |
| 13 |
70-3580 |
SLEEVE Price: $24.16 |
| 14 |
510231302 |
BOX, BATTERY, BLACK Price: $89.99 |
| 14 |
70-3590 |
DISCONTINUED Price: Call Us |
| 15 |
539116400 |
TERMINAL COVER-SM Price: $2.99 |
| 15 |
70-3600 |
SPRING Price: $12.73 |
| 16 |
539102759 |
INSULATOR Price: $3.99 |
| 16 |
70-3610 |
SEAT Price: $13.09 |
| 17 |
576618101 |
VALVE.FUEL.CHECK Price: $14.99 |
| 17 |
70-3970 |
PLATE Price: $3.66 |
| 18 |
539916325 |
FUEL VALVE Price: $9.99 |
| 18 |
70-3640 |
PIN Price: $5.43 |
| 19 |
582042802 |
Solenoids This part replaces 532192507. Price: $22.99 |
| 19 |
70-3620 |
BODY Price: $91.31 |
| 20 |
539912222 |
HOSE CLAMP Price: $2.99 |
| 20 |
70-3650 |
BUSHING Price: $13.26 |
| 21 |
539133049 |
KNOB.ROUND.BALL.BLACK Price: $5.99 |
| 21 |
70-3660 |
ROLLER Price: $13.46 |
| 22 |
539105245 |
RUBBER GROMMET Price: $3.99 |
| 22 |
70-3670 |
PLUG Price: $9.07 |
| 23 |
584648201 |
GROMMET.CHECK.FUEL This part replaces 576618201. Price: $3.99 |
| 23 |
70-6800 |
E-RING Price: $2.69 |
| 24 |
532139277 |
STEM FUEL TANK This part replaces 539110432. Price: $6.99 |
| 24 |
70-6930 |
SCREW Price: $8.71 |
| 25 |
539110457 |
LEFT HEADLIGHT LENS This part replaces 539110056. Price: $4.99 |
| 25 |
70-3910 |
WASHER Price: $3.15 |
| 26 |
539110455 |
LEFT HEADLIGHT RIM GREY Price: $4.99 |
| 26 |
70-6900 |
O-RING Price: $12.17 |
| 27 |
539110453 |
RT HEADLIGHT LENS This part replaces 539110057. Price: $4.99 |
| 27 |
70-6720 |
STUD Price: $6.81 |
| 28 |
539110451 |
RT HEADLIGHT RIM GREY Price: $4.99 |
| 28 |
70-3940 |
PLATE Price: $58.51 |
| 29 |
539130671 |
REFLECTOR, HEADLIGHT RT Price: $17.99 |
| 29 |
539130672 |
REFLECTOR, LEFT HEAD LIGHT Price: $22.99 |
| 29 |
70-6880 |
KEY Price: $10.91 |
| 30 |
539932956 |
GAS LINE 10" Price: $6.99 |
| 30 |
70-3680 |
CAMSHAFT Price: $673.68 |
| 31 |
505215101 |
FUEL LINE 3" Price: $2.99 |
| 31 |
70-3830 |
GASKET Price: $3.34 |
| 32 |
576660605 |
HOSE, VAPOR 3/16 X 15" Price: $5.99 |
| 32 |
70-6540 |
BOLT Price: $3.73 |
| 33 |
522559101 |
SHIELD, HEAT Price: $32.99 |
| 33 |
70-6780 |
NUT Price: $3.97 |
| 34 |
539102678 |
TAPPED PLATE Price: $12.99 |
| 34 |
70-6680 |
WASHER Price: $1.91 |
| 35 |
586108201 |
CABLE BATTERY POS RZ This part replaces 539103306. Price: $8.99 |
| 35 |
70-3820 |
COVER Price: $127.40 |
| 36 |
539110068 |
BATTERY CABLE, NEGATIVE Price: $7.99 |
| 36 |
70-6840 |
SCREW Price: $50.06 |
| 37 |
595901601 |
GSPW Bolts This part replaces 539990316. Price: $2.99 |
| 37 |
70-3780 |
PLATE Price: $1.79 |
| 38 |
595316801 |
Bolts This part replaces 539990645. Price: $3.99 |
| 38 |
70-3700 |
RING Price: $4.85 |
| 39 |
539108461 |
BOLT 1/4-20 X 1/2 HWST Price: $2.99 |
| 39 |
70-6940 |
SCREW Price: $20.10 |
| 40 |
596917001 |
Screws This part replaces 539110673. Price: $2.99 |
| 41 |
596582801 |
Screws This part replaces 539990411. Price: $2.99 |
| 41 |
70-3490 |
COVER Price: $14.21 |
| 42 |
596789701 |
Screws This part replaces 539111229. Price: $1.99 |
| 42 |
70-3850 |
SCREW Price: $4.14 |
| 43 |
574822701 |
SCR #10-24 X .75 SKT HD BLK Price: $2.99 |
| 43 |
70-4940 |
HOUSING KIT Price: $2,240.01 |
| 44 |
596040801 |
Hardware This part replaces 539976977. Price: $2.99 |
| 44 |
70-3550 |
DISCONTINUED Price: Call Us |
| 45 |
539108520 |
HCS M5-0.8 X 16MM GR 8.8 ZD Price: $2.99 |
| 45 |
70-3540 |
VALVE SUB ASSEMBLY Price: $75.51 |
| 46 |
582478602 |
NUT FLG, NYLOCK, 1/4-20 GR G C This part replaces 539976978. Price: $1.99 |
| 46 |
70-3530 |
GASKET Price: $1.24 |
| 47 |
594944401 |
NUT HEXAGON FLANGE 5/16-18 ST This part replaces 539112899. Price: $5.99 |
| 47 |
70-6910 |
O-RING Price: $2.00 |
| 48 |
521996502 |
GSPW Nuts This part replaces 521996501. Price: $2.99 |
| 48 |
70-3520 |
DISCONTINUED Price: Call Us |
| 49 |
539990053 |
WASHER 1/4 INT TOOTH Price: $2.99 |
| 49 |
70-3510 |
DISCONTINUED Price: Call Us |
| 50 |
70-3500 |
DISCONTINUED Price: Call Us |
| 581606701 |
| |
NOT SHOWN Price: Call Us 581606701 |
