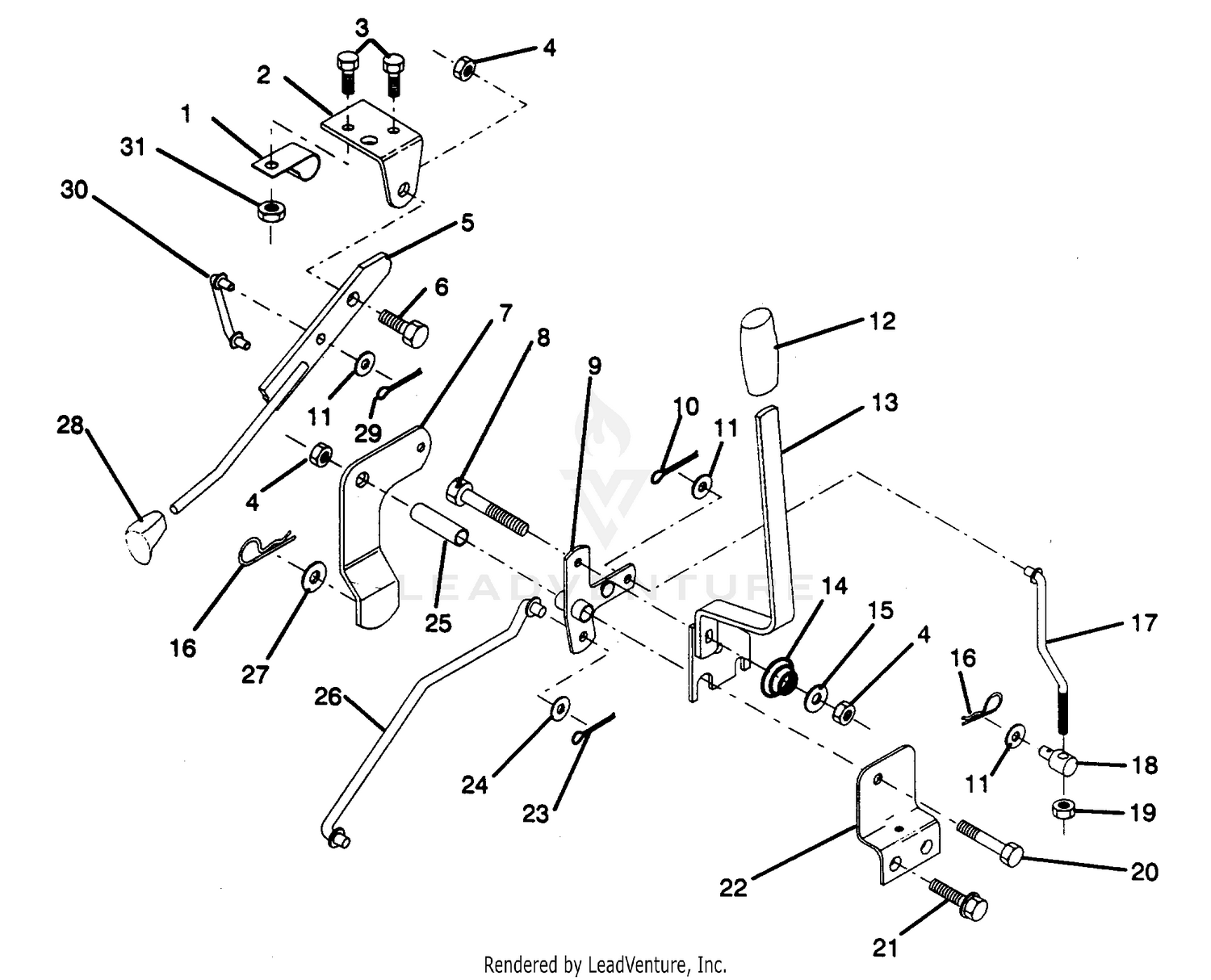

| Ref | Part Number | Description |
|---|
| 1 |
532126470 |
Clip, Insulated Price: $3.99 |
| 2 |
532122018 |
Bracket, Mower Clutch Price: $2.38 |
| 3 |
539990071 |
HCS.1/4-20.X1/2 This part replaces 874780408. Price: $1.99 |
| 4 |
873680600 |
Nut, Crownlock 3/8-16 UNC Price: $1.99 |
| 5 |
532145187 |
Assembly, Clutch Lever This part replaces 532123417. Price: $5.69 |
| 6 |
532106451 |
Bolt, Shoulder Price: $2.99 |
| 7 |
532123491 |
Assembly, Mower Clutch Arm Price: $6.49 |
| 8 |
874760636 |
Bolt, Hex 3/8-16 UNC x 2 1/4 Price: $2.99 |
| 9 |
532121930 |
Assembly, Bellcrank Lift Price: $10.99 |
| 010 |
98-9713 |
WATER FLANGE ASM Price: $199.09 |
| 10 |
876020412 |
Pin, Cotter 1/8 x 3/4 Price: $3.99 |
| 11 |
819131316 |
Washer, 13/32 x 13/16 x 16 Ga. Price: $2.99 |
| 12 |
532122027 |
Grip, Handle Price: $5.72 |
| 13 |
532127028 |
Assembly, Lift Handle Price: $19.37 |
| 14 |
532123496 |
Spring, Compression Price: $2.99 |
| 15 |
734117201 |
WASHER This part replaces 819131212. Price: $1.99 |
| 16 |
532004921 |
Retainer, Spring Price: $3.99 |
| 17 |
532123654 |
Link, Front Lift Price: $28.99 |
| 18 |
532142028 |
Trunnion Adj 94 This part replaces 532007078. Price: $2.99 |
| 19 |
873220600 |
Nut, Hex 3/8-16 This part replaces 873350600. Price: $3.99 |
| 020 |
98-9580 |
PIPE-RETURN, WATER Price: $4.01 |
| 20 |
874760644 |
Bolt, Fin. Hex 3/8-16 UNC x 2 3/4 Price: $3.99 |
| 21 |
817490508 |
Screw, Hex Washer Head Threaded, Rolling 5/16-18 x 1/2 Price: $3.99 |
| 22 |
532121929 |
Bracket, Mower Height Price: $2.38 |
| 23 |
876020416 |
Pin, Cotter 1/8 x 1 Price: $3.99 |
| 24 |
532052160 |
Washer This part replaces 819171616. Price: $3.99 |
| 25 |
532121933 |
Tube, Spacer Price: $4.28 |
| 26 |
532141470 |
Rod, Mower Lift This part replaces 532121934. Price: $14.65 |
| 27 |
819131316 |
Washer, 13/32 x 13/32 x 16 Ga. Price: $2.99 |
| 28 |
532106932 |
Knob Price: $2.99 |
| 29 |
532003145 |
COTTER PIN This part replaces 876020312. Price: $1.40 |
| 30 |
532123671 |
Link, Mower Clutch Price: $7.99 |
| 050 |
98-9638 |
GASKET-FLANGE, WATER Price: $3.74 |
| 060 |
98-7692 |
BOLT Price: $0.92 |
| 070 |
98-9356 |
BOLT Price: $2.06 |
| 080 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 090 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 100 |
98-9719 |
THERMOSWITCH Price: $98.79 |
| 110 |
98-7778 |
THERMOSTAT ASM Price: $61.89 |
| 120 |
98-9471 |
COVER-THERMOSTAT Price: $34.62 |
| 130 |
105-3748 |
GASKET-THERMOSTAT Price: $4.31 |
