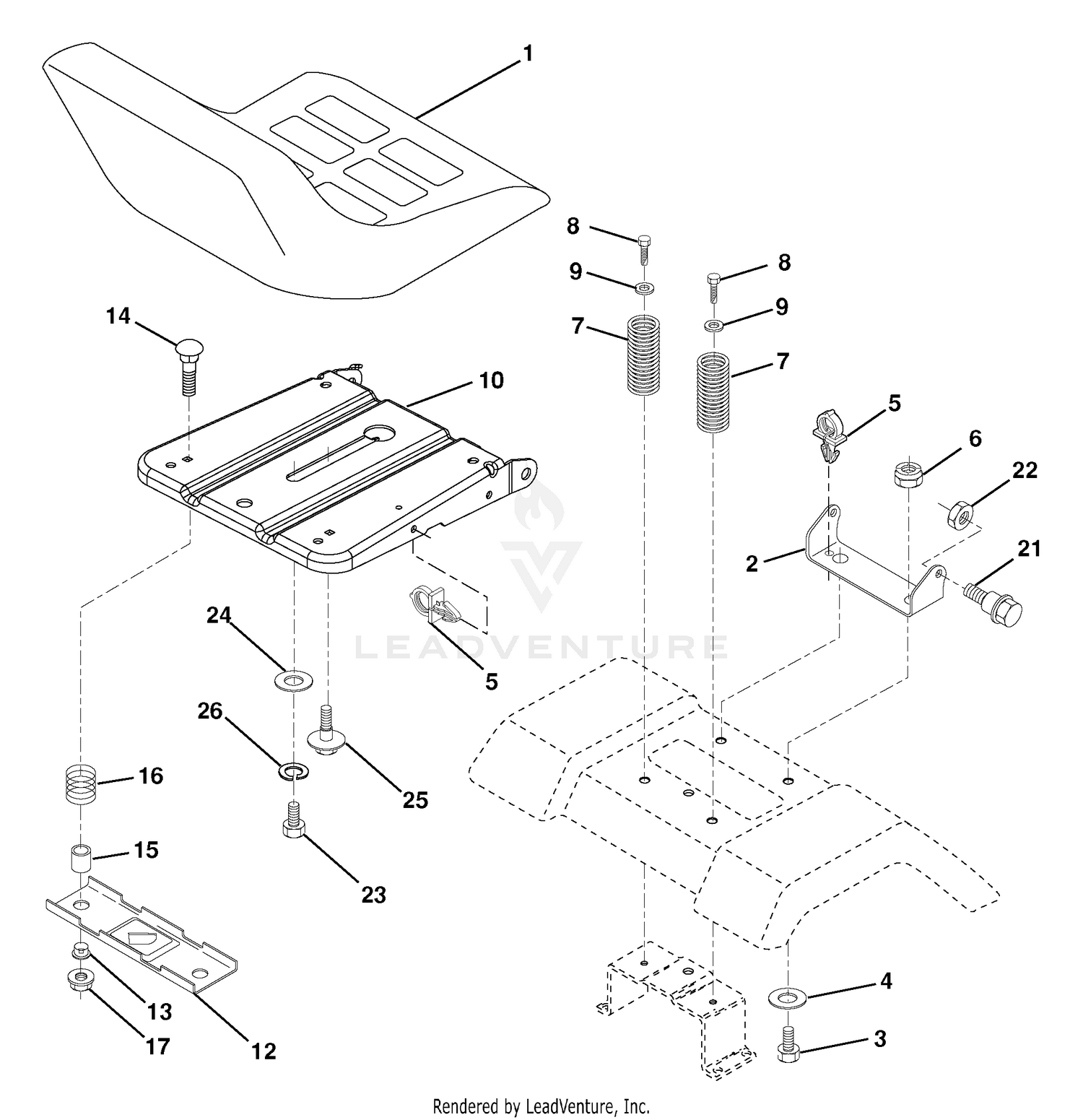

| Ref | Part Number | Description |
|---|
| 1 |
188712 |
Seat Price: Call Us |
| 2 |
140551 |
Bracket Pnt Pivot Seat (blk) Price: Call Us |
| 3 |
71110616 |
Bolt Price: Call Us |
| 4 |
19131610 |
Washer 13/32 x 1 x 10 Ga. Price: Call Us |
| 5 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 6 |
73800600 |
Nut Price: Call Us |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 8 |
17000616 |
Screw 3/8-16 x 1.5 Price: Call Us |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga. Price: Call Us |
| 10 |
195530 |
Pan Pnt Seat (blk ) Price: Call Us |
| 10 |
98-9705 |
STARTER ASM Price: $663.57 |
| 12 |
174648 |
Bracket Pnt Mounting Switch Price: Call Us |
| 13 |
121248X |
Bushing Snap Blk Nyl 50 Id Price: Call Us |
| 14 |
72050412 |
Bolt Rdhd Sht Nk 1/4-20 x 1-1/2 Price: Call Us |
| 15 |
134300 |
Spacer Split 28 x 96 Yel Zinc Price: Call Us |
| 16 |
121250X |
Spring Cprsn 1 27 Blk Pnt Price: Call Us |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Gr. 5 Zinc Price: Call Us |
| 20 |
104-8608 |
YOKE ASM Price: $437.88 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 unc Blkz-2A Price: Call Us |
| 22 |
73800500 |
Nut Price: Call Us |
| 23 |
71110814 |
Bolt Hex Black Price: Call Us |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x 12 Ga. Price: Call Us |
| 25 |
127018X |
Bolt Shoulder 5/16-18 x 62 Price: Call Us |
| 30 |
98-7742 |
ARMATURE ASM Price: $819.15 |
| 40 |
98-7744 |
BEARING Price: $35.64 |
| 50 |
98-7743 |
BEARING Price: $37.48 |
| 60 |
99-8373 |
CLUTCH-RUNNING, OVER Price: $691.80 |
| 70 |
99-8374 |
FRAME-END, DRIVE Price: $73.04 |
| 80 |
105-3746 |
MAGNETIC SWITCH ASM Price: $689.29 |
| 90 |
98-7748 |
FRAME-END Price: $82.65 |
| 100 |
98-7749 |
BRUSH HOLDER ASM Price: $91.05 |
| 110 |
98-7750 |
SPRING-BRUSH Price: $2.38 |
| 120 |
98-7751 |
GEAR Price: $43.51 |
| 130 |
98-7752 |
RETAINER Price: $4.35 |
| 140 |
98-7753 |
ROLLER Price: $1.00 |
| 150 |
98-7754 |
SPRING Price: $4.70 |
| 160 |
98-7755 |
BALL Price: $0.42 |
| 170 |
98-7756 |
BOLT Price: $2.64 |
| 180 |
98-7757 |
O-RING Price: $24.98 |
| 190 |
100-9240 |
BOLT Price: $7.23 |
| 200 |
98-7758 |
BOLT ASM Price: $4.90 |
| 210 |
99-8375 |
COVER Price: $24.86 |
| 220 |
99-8371 |
NUT-HEX Price: $3.75 |
| 230 |
98-9711 |
CORD-SOLENOID, STOP Price: $12.05 |
| 240 |
99-8376 |
NUT-HEX Price: $7.28 |
| 250 |
98-7759 |
PIPE-DRAIN Price: $28.84 |
| 260 |
250-4 |
TIE-CABLE This part replaces 98-9712. Price: $0.61 |
