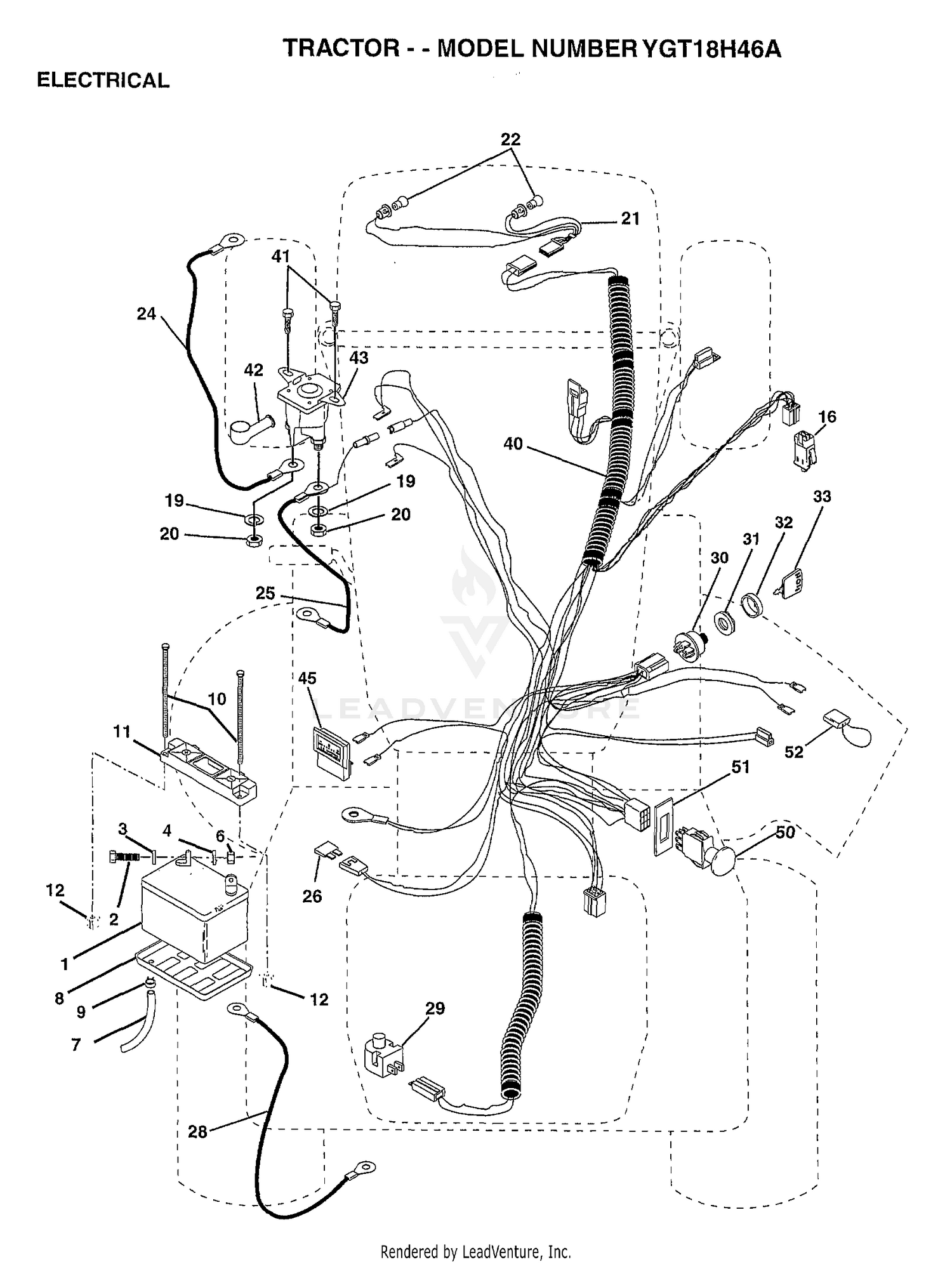

| Ref | Part Number | Description |
|---|
| 1 |
144927 |
SUB= 125603X Price: Call Us |
| 1 |
98-9339 |
GAUGE-FUEL Price: $115.28 |
| 2 |
3258-166 |
SCREW-PRH Price: $0.28 |
| 2 |
74760412 |
BOLT LT Price: Call Us |
| 3 |
10040400 |
LOCKWASHER Price: Call Us |
| 3 |
233-42 |
KNOB Price: $12.88 |
| 4 |
19091016 |
WASHER Price: Call Us |
| 4 |
94-5626 |
FLEXIBLE DRAW LATCH ASM Price: $42.59 |
| 5 |
112-6561 |
WARNING LIGHT ASM This part replaces 98-9306. Price: $121.84 |
| 6 |
73220400 |
SUB= 50675 Price: Call Us |
| 6 |
98-9308 |
GAUGE-TEMPERATURE Price: $112.90 |
| 7 |
93-5961 |
BOOT-LEVER Price: $56.35 |
| 8 |
32144-1 |
SCREW-TAPTITE Price: $3.19 |
| 9 |
105-7508 |
LEVER-JOYSTICK Price: $53.02 |
| 9 |
109596X |
HOSE CLAMP T Price: Call Us |
| 10 |
104-9296 |
DECAL-CONTROL Price: $27.94 |
| 10 |
145211 |
SUB= 150177 Price: Call Us |
| 11 |
104-9251-03 |
PLATE-INSTRUMENT Price: $95.17 |
| 11 |
150109 |
HOLDDOWN BATTERY Price: Call Us |
| 12 |
145769 |
SUB= 150177 Price: Call Us |
| 12 |
99-8352 |
SWITCH-BACKLAP, MASTER Price: $91.81 |
| 13 |
106-4167 |
JOYSTICK BRACKET ASM Price: $202.74 |
| 14 |
32105-13 |
SCREW-HWH Price: $1.59 |
| 16 |
104-1499-03 |
BRACKET-BLOCK, FUSE Price: $43.35 |
| 16 |
153664 |
SWITCH INTERLOCK Price: Call Us |
| 17 |
32144-18 |
SCREW-HWH Price: $1.80 |
| 18 |
120-2244 |
HOURMETER This part replaces 75-6820. Price: $48.06 |
| 19 |
10090400 |
SUB= 10040400 Price: Call Us |
| 19 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 20 |
104-0027 |
BOX-CONTROL Price: $196.04 |
| 20 |
73350400 |
NUT Price: Call Us |
| 22 |
4152J |
HEADLAMP BULB Price: Call Us |
| 22 |
94-6767 |
DECAL-FUSES Price: $11.45 |
| 23 |
104-9298 |
DECAL-CONTROLLER Price: $6.16 |
| 24 |
104-1496 |
HINGE-PIN Price: $13.22 |
| 24 |
4014J |
CABLE.BATY.22.RED Price: Call Us |
| 25 |
104-1497 |
HINGE-RECEIVER Price: $13.90 |
| 25 |
146686 |
CABLE.BATRY.4GA. Price: Call Us |
| 26 |
108824X |
FUSE HYT Price: Call Us |
| 26 |
139-5984 |
CONTROLLER-ELECTRONIC This part replaces 92-5720. Price: $2,183.63 |
| 27 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 28 |
321-14 |
SCREW-HH Price: $0.55 |
| 29 |
121305X |
SWITCH SEAT Price: Call Us |
| 29 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 30 |
140302 |
BEARING PVT LH Price: Call Us |
| 30 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 31 |
124211X |
NUT IGNITION Price: Call Us |
| 32 |
106-5971 |
HARNESS-WIRE Price: $1,405.26 |
| 32 |
141226 |
COVER KEY SWITCH Price: Call Us |
| 33 |
122147X |
KEY Price: Call Us |
| 33 |
94-6343 |
DECAL-IDENTIFICATION, WIRE Price: $6.86 |
| 34 |
3218-3 |
NUT-JAM Price: $0.25 |
| 40 |
156162 |
HARNESS IGNITION Price: Call Us |
| 41 |
17720408 |
SCREW Price: Call Us |
| 41 |
32128-33 |
NUT-HF Price: $0.25 |
| 42 |
131563 |
SUB= 154336 Price: Call Us |
| 43 |
145673 |
SUB= 146154 Price: Call Us |
| 44 |
105-7529 |
DECAL-DIAGNOSTIC Price: $26.76 |
| 45 |
122822X |
AMMETER Price: Call Us |
| 50 |
154959 |
PTO SWITCH.BLK Price: Call Us |
| 51 |
140405 |
RING RETAIN PTO Price: Call Us |
