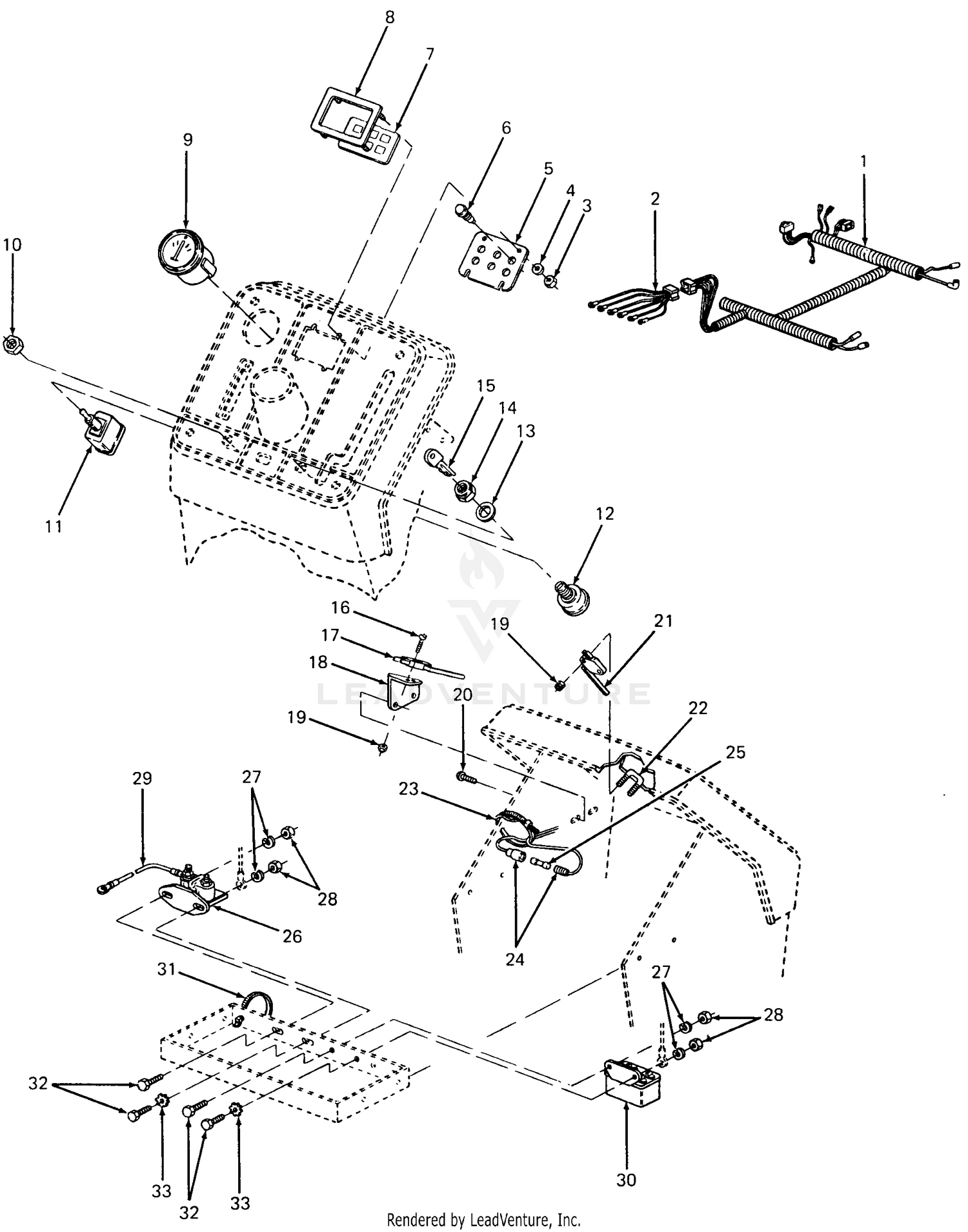

| Ref | Part Number | Description |
|---|
| 1 |
532106160 |
O-Ring Price: $3.99 |
| 1 |
725-3143 |
HARNESS,WIRE Not Available Price: |
| 2 |
539990118 |
WASHER.3/8 This part replaces 810040600. Price: $1.49 |
| 2 |
725-3115 |
HARNESS, INDICATOR Not Available Price: |
| 3 |
712-3060 |
NUT Not Available Price: |
| 3 |
873220600 |
Nut, Hex 3/8-16 Price: $3.99 |
| 4 |
735-0640 |
RUBBER WASHER Not Available Price: |
| 4 |
874930572 |
Bolt, Hex Head 5/16-18 x 4-1/2 Price: $1.99 |
| 5 |
532002882 |
DRIVE PIN This part replaces 532124963. Price: $2.99 |
| 5 |
703-1167 |
PLATE-INDICATOR Not Available Price: |
| 6 |
532110111 |
Lever, Shift Price: $11.99 |
| 6 |
725-3104 |
INDICATOR LAMP Not Available Price: |
| 7 |
779-3266 |
LABEL-INDICATOR Not Available Price: |
| 7 |
872110404 |
Bolt, Carriage 1/4-20 x 1/2 Grade 5 Price: $3.99 |
| 8 |
532008700 |
Plate, Shift Indicator Price: $2.99 |
| 8 |
731-3049 |
BEZEL Not Available Price: |
| 9 |
817021008 |
Screw Tap Hex #10-24unc X 1/2 This part replaces 532086777. Price: $1.99 |
| 9 |
925-3141 |
Ammeter This part replaces 725-3141. Price: $55.06 |
| 10 |
105-3727 |
INJECTION PUMP ASM Price: $2,972.62 |
| 10 |
532009484 |
Clip Price: $3.99 |
| 10 |
712-3014 |
HEX NUT 1/2-27 x .100 THK Not Available Price: |
| 11 |
810040400 |
Washer, Lock 1/4 Price: $3.99 |
| 11 |
925-0893 |
Switch, PTO This part replaces 725-0893. Price: $72.43 |
| 12 |
532050675 |
NUT.HEX..25-20.UNC This part replaces 873220400. Price: $3.99 |
| 12 |
925-3026 |
IGNITION SWITCH This part replaces 725-3026. Price: $38.18 |
| 13 |
736-0302 |
FLAT WASHER .632 ID x .935 ODX.048 Not Available Price: |
| 13 |
823230506 |
Screw, Set, Hex 5/16-18 x 3/8 Price: $2.99 |
| 14 |
532008382 |
Spacer, Split Price: $2.38 |
| 14 |
712-3013 |
NUT-IGNITION SWITCH Not Available Price: |
| 15 |
734116301 |
WASHER - 15X7.3X1.6 This part replaces 819111116. Price: $2.02 |
| 15 |
925-0201 |
Key This part replaces 759-3476. Price: $8.70 |
| 16 |
532100473 |
Sheave, Transmission Price: $30.75 |
| 16 |
710-3112 |
HEX SCREW HD MACH Not Available Price: |
| 17 |
725-3146 |
MICRO SWITCH Not Available Price: |
| 17 |
873220500 |
Nut, Hex 5/16-18 Price: $3.99 |
| 18 |
532008381 |
Spacer Price: $2.99 |
| 18 |
703-1606 |
PLATE-SWITCH Not Available Price: |
| 19 |
532002649 |
Key, Square 3/16 x 1-1/8 Price: $2.99 |
| 19 |
712-3052 |
LOCK NUT #4-40 Not Available Price: |
| 20 |
532004914 |
Key, Square Price: $2.99 |
| 20 |
710-0896 |
Hex Index Washer Screw, 1/4-14 x .0625 This part replaces 710-0776. Price: $3.86 |
| 20 |
98-9462 |
ELEMENT-PUMP Price: $282.73 |
| 21 |
532139155 |
Spacer, Split .523 x .718 x 2 Price: $2.99 |
| 21 |
725-3066 |
SWITCH Not Available Price: |
| 22 |
532104214 |
Nut, Cap 5/16-18 Price: $2.99 |
| 22 |
711-3259 |
SCREW-SWITCH Not Available Price: |
| 23 |
532005015 |
Tire Price: $97.99 |
| 23 |
726-3020 |
Tie, Cable Price: Call Us |
| 24 |
532004929 |
Rivet, Drilled Price: $3.99 |
| 24 |
729-0124 |
FUSE HOLDER Not Available Price: |
| 25 |
532004921 |
Retainer Spring This part replaces 532124961. Price: $3.99 |
| 25 |
925-3120 |
FUSE-20A SLO-BLOW Not Available This part replaces 725-3120. Price: |
| 26 |
532144565 |
Guard, Belt Price: Call Us |
| 26 |
925-0771 |
Solenoid This part replaces 725-0771. Price: $32.55 |
| 27 |
532138399 |
V-Belt Price: $35.99 |
| 27 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 28 |
532004371 |
PULLEY, IDLER This part replaces 532104680. Price: $11.49 |
| 28 |
712-3006 |
HEX NUT Price: $4.05 |
| 29 |
725-0423 |
WIRE Not Available Price: |
| 29 |
812000032 |
Ring, Klip Price: $3.99 |
| 30 |
532159229 |
BRACKET.ASM.IDLER This part replaces 532105611. Price: $18.99 |
| 30 |
925-0894 |
RELAY Not Available This part replaces 725-0894. Price: |
| 30 |
98-9421 |
VALVE-DELIVERY Price: $116.98 |
| 31 |
725-0157 |
Tie, Cable Price: $3.46 |
| 31 |
874770844 |
Bolt, Hex Head 1/2-20 x 2-3/4 Price: $2.99 |
| 32 |
532139401 |
Shaft, Idler Arm Price: $4.99 |
| 32 |
710-0751 |
SCREW 1/4-20 x .620 GR5 Price: $3.63 |
| 33 |
532052160 |
Washer This part replaces 819171616. Price: $3.99 |
| 34 |
532004368 |
Sheave, Engine Price: $13.99 |
| 40 |
98-9424 |
SPRING-VALVE, DELIVERY Price: $21.66 |
| 50 |
98-9425 |
GASKET-VALVE, DELIVERY Price: $10.58 |
| 60 |
98-9652 |
HOLDER-VALVE, DELIVERY Price: $111.74 |
| 70 |
98-9447 |
O-RING Price: $18.23 |
| 80 |
98-9434 |
FLANGE-SLEEVE Price: $17.25 |
| 90 |
98-9443 |
PIN-JOINT Price: $13.13 |
| 100 |
98-9423 |
O-RING Price: $6.07 |
| 110 |
98-9452 |
SCREW This part replaces 105-2892. Price: $7.23 |
| 130 |
98-9422 |
TAPPET ASM Price: $275.51 |
| 140 |
98-9426 |
PIN-GUIDE, TAPPET Price: $7.65 |
| 150 |
105-3732 |
PIN-CLAMP Price: $8.96 |
| 160 |
98-9428 |
SPRING-PLUNGER Price: $32.36 |
| 170 |
98-9427 |
SEAT-SPRING, UPPER Price: $16.02 |
| 180 |
98-9429 |
SEAT-SPRING, LOWER Price: $50.60 |
| 190 |
98-9433 |
SHIM Price: $2.13 |
| 200 |
105-3733 |
RACK-CONTROL Price: $54.30 |
| 210 |
105-3734 |
PLATE Price: $44.59 |
| 220 |
98-9442 |
SCREW Price: $26.58 |
| 230 |
98-9432 |
SLEEVE-CONTROL Price: $107.77 |
| 240 |
98-9464 |
BOLT-JOINT Price: $20.48 |
| 250 |
98-9445 |
GASKET Price: $1.84 |
| 260 |
98-9430 |
SCREW Price: $19.45 |
| 532005014 |
Rim |
Price: $122.99 532005014 |
| 532065139 |
Stem |
Valve This part replaces 532124718. Price: $5.99 532065139 |
