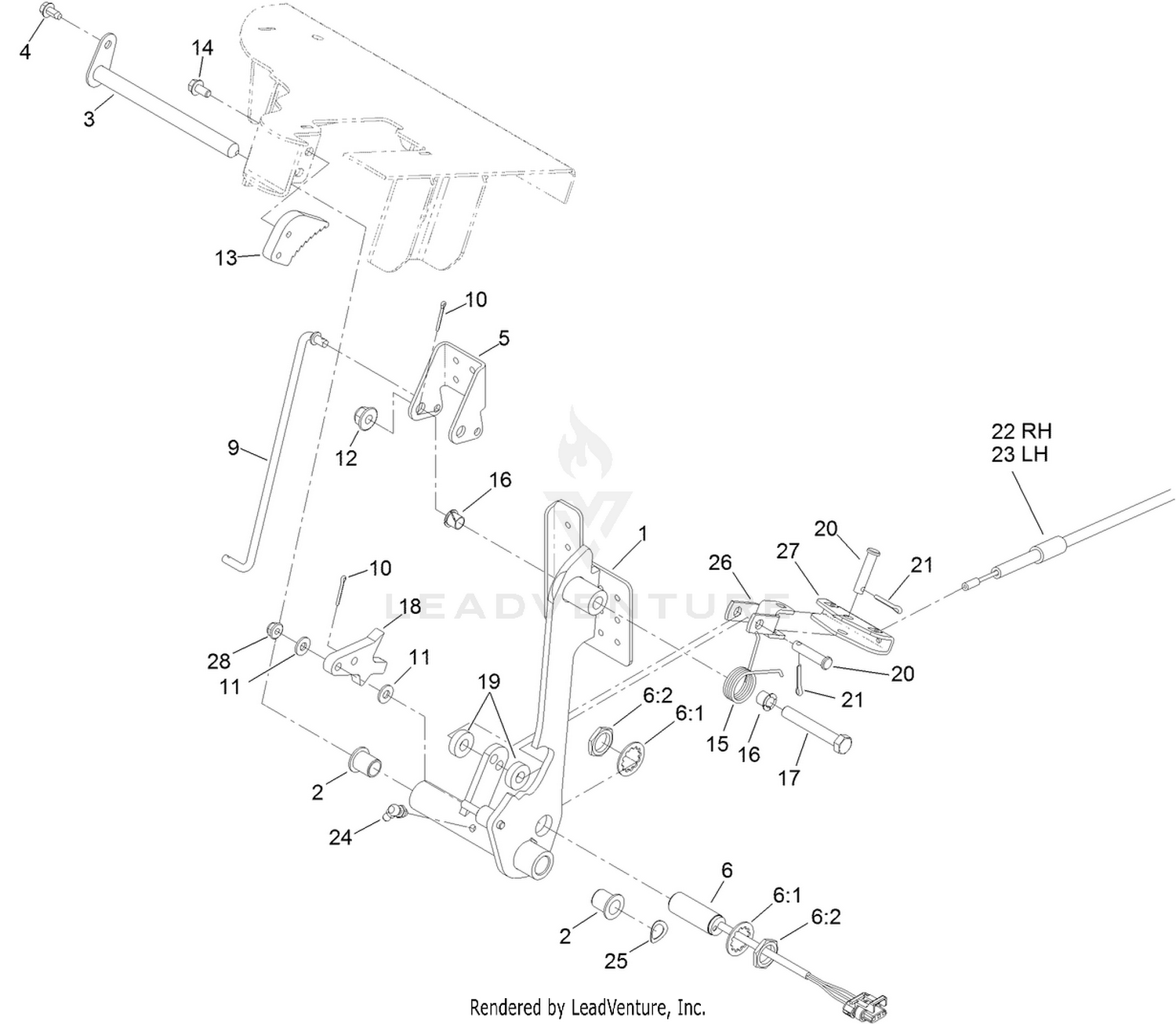

| Ref | Part Number | Description |
|---|
| 1 |
115-0120-03 |
PEDAL-BRAKE Price: $158.58 |
| 2 |
256-155 |
BUSHING-FLANGE Price: $1.76 |
| 3 |
104-7179 |
PIVOT-PEDAL Price: $43.97 |
| 4 |
32144-4 |
SCREW-HWH Price: $1.29 |
| 5 |
99-7963-03 |
PEDAL-PARK Price: $26.63 |
| 6 |
115-5300 |
PROXIMITY SWITCH ASM Price: $137.95 |
| 9 |
115-0129 |
ROD-PAWL, BRAKE Price: $29.11 |
| 10 |
3272-6 |
PIN-COTTER Price: $0.25 |
| 11 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 12 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 13 |
99-7214 |
PAWL-BRAKE Price: $28.35 |
| 14 |
3234-13 |
SCREW-HHF Price: $0.77 |
| 15 |
99-7140 |
SPRING-TORSION Price: $21.98 |
| 16 |
52-2891 |
BUSHING-FLANGED, NYLON Price: $3.19 |
| 17 |
323-12 |
SCREW-HH Price: $1.14 |
| 18 |
117-0238 |
DETENT Price: $11.85 |
| 19 |
5-0652 |
SPACER Price: $5.35 |
| 20 |
283-14 |
PIN-CLEVIS Price: $2.92 |
| 21 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 22 |
117-0106 |
CABLE-BRAKE, RH Price: $117.67 |
| 23 |
117-0107 |
CABLE-BRAKE, LH Price: $113.33 |
| 24 |
302-60 |
FITTING-GREASE Price: $2.26 |
| 25 |
110-8982 |
WASHER-SPRING Price: $2.71 |
| 26 |
115-8060 |
CLEVIS-DOUBLE Price: $15.64 |
| 27 |
115-8059 |
YOKE-CABLE Price: $11.28 |
