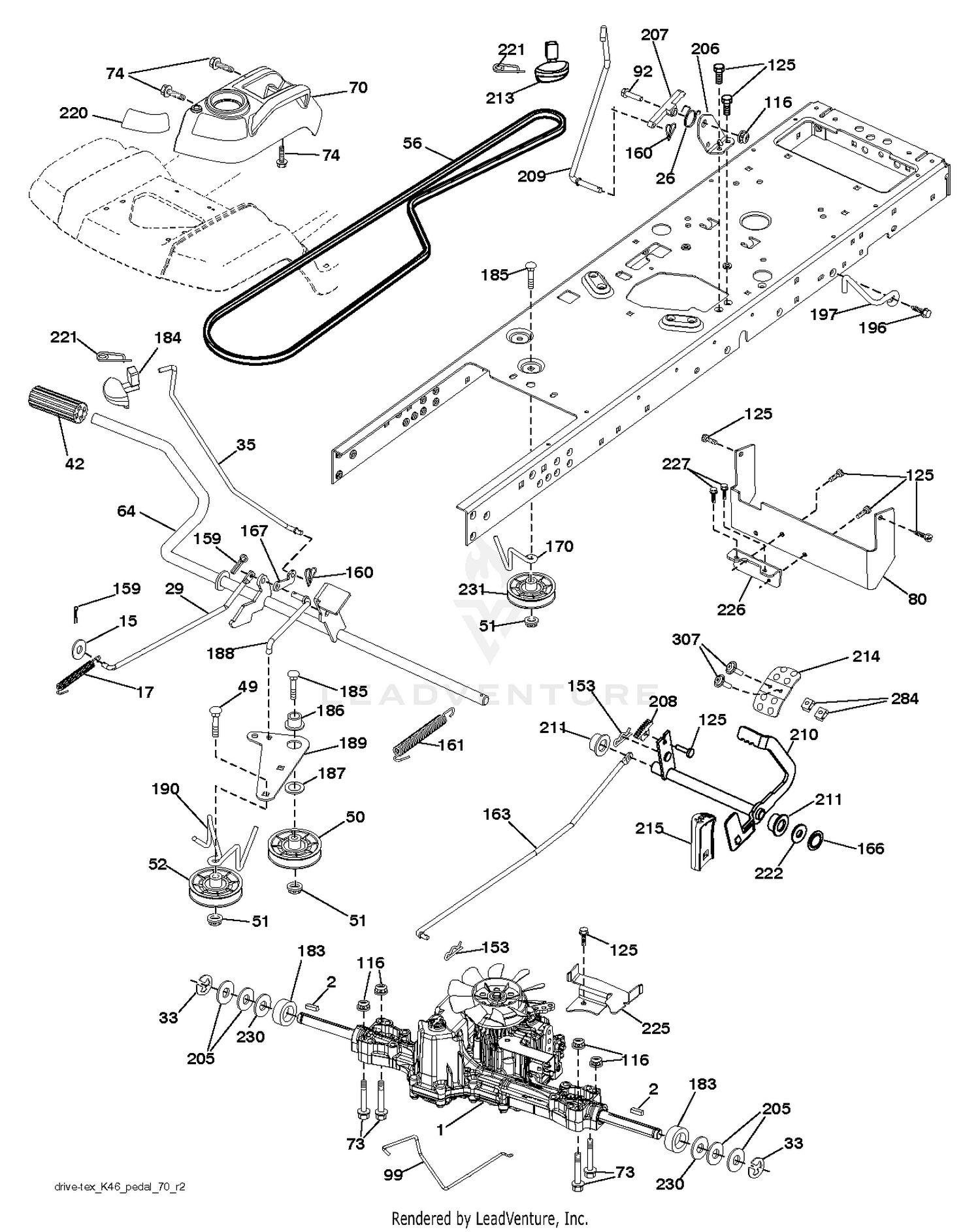

| Ref | Part Number | Description |
|---|
| 1 |
33013-00 |
NUT-HEX Price: $0.25 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
42-1720 |
CORE-FIELD, COIL Price: $387.41 |
| 4 |
144-6182 |
PLATE-CLUTCH This part replaces 43-6110-03. Price: $25.59 |
| 5 |
256-273 |
BUSHING-FLANGE Price: $4.55 |
| 6 |
43-6320 |
COLLAR Price: $24.71 |
| 7 |
69-9170 |
SHAFT-CRUISE Price: $17.03 |
| 8 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 9 |
3217-7 |
NUT-HEX Price: $0.28 |
| 10 |
321-3 |
SCREW-HH Price: $0.28 |
| 11 |
321-5 |
SCREW-HH Price: $0.22 |
| 12 |
3256-3 |
WASHER-FLAT Price: $0.49 |
| 13 |
3253-3 |
WASHER-LOCK Price: $0.31 |
| 14 |
3217-5 |
NUT-HEX Price: $0.25 |
| 15 |
43-6200 |
SPRING-COMPRESSION Price: $20.42 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 16 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 17 |
33093-00 |
WASHER-FLAT Price: $0.70 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
321-9 |
SCREW-HH Price: $0.27 |
| 19 |
2411-41 |
ROD END-BALL JOINT Price: $40.28 |
| 20 |
106-5233 |
CABLE-TRACTION Price: $132.81 |
| 21 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 22 |
119-9359 |
BRACKET-CABLE, REAR Price: $28.73 |
| 23 |
93-2092 |
CLAMP-CABLE Price: $3.46 |
| 24 |
322-3 |
SCREW-HH Price: $0.79 |
| 25 |
2412-93 |
CLAMP-R Price: $1.02 |
| 26 |
3245-32 |
SCREW-HSH Price: $3.59 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
32128-20 |
NUT-HF Price: $0.99 |
| 28 |
2412-102 |
CLAMP-R Price: $6.85 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
583864502 |
Rods This part replaces 583864501. Price: $6.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 73 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 74 |
596134101 |
Screws This part replaces 532142432. Price: $2.99 |
| 80 |
531064101 |
SERVICE KIT TORQUE STRAP BLACK This part replaces 532410024. Price: $19.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
532415742 |
ROD.SPRING.BYPASS.K46.LT.Z Price: $7.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532448275. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 170 |
532413430 |
KEEPER.CENTER SPAN.1.688 Price: $5.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 532403118. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG This part replaces 532194323. Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
532195804 |
LINK.CLUTCH.ANIT-ROTAT Price: $5.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH This part replaces 532197867. Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 532197868. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
596869801 |
Rods This part replaces 532199592. Price: $5.99 |
| 210 |
532197860 |
ROCKER.ASM.PEDAL.CONTR Price: $44.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532416863 |
PEDAL.FORWARD.HUSQVARNA.DEALER Price: $32.99 |
| 215 |
532401723 |
PEDAL.REVERSE.TEX.GT.4 Price: $12.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 226 |
531170501 |
SERVICE KIT BRACKET This part replaces 532401564. Price: $4.99 |
| 227 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 230 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
| 284 |
532417693 |
NUT.U-CHNL.1/4-20.550DP.350PNL Price: $3.99 |
| 307 |
874180412 |
SCREW.MACHINE.CR.1/4-20 Price: $3.99 |
