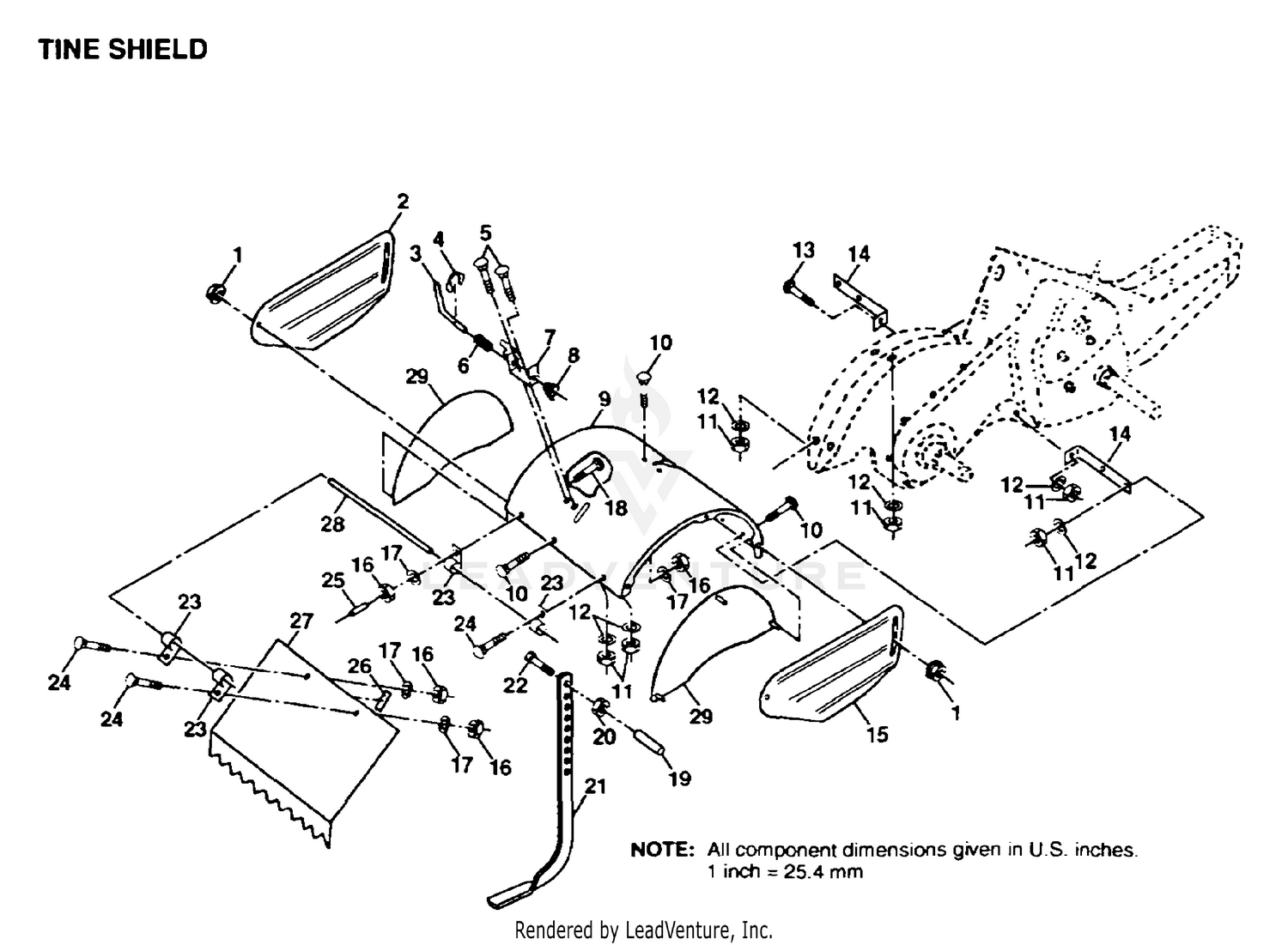

TINE SHIELD
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 58-6290 | POPPET Price: $47.04 |
| 1 | 98000129 | NUT Price: Call Us |
| 2 | 104086X473 | SHIELD.SD.OUT.LH Price: Call Us |
| 2 | 58-6310 | SPACER Price: $108.75 |
| 3 | 58-6320 | WIPER Price: $10.93 |
| 3 | 8393J | STAKE PIN TI Price: Call Us |
| 4 | 12000036 | KLIP RING TI Price: Call Us |
| 4 | 58-6330 | SEAT Price: $39.50 |
| 5 | 72110508 | BOLT CRT Price: Call Us |
| 6 | 58-6350 | PLUG Price: $36.88 |
| 6 | 8394J | SPRING TI Price: Call Us |
| 7 | 8392J | LATCH BRACKET TI Price: Call Us |
| 8 | 109230X | SPRING CRT Price: Call Us |
| 8 | 58-6400 | BUSHING Price: $37.39 |
| 9 | 58-6420 | CAP Price: $42.88 |
| 10 | 58-6440 | POPPET Price: $56.35 |
| 10 | 72140506 | BOLT Price: Call Us |
| 11 | 58-6450 | O-RING Price: $2.48 |
| 11 | 73220500 | NUT.HEX.5/16-18 Price: Call Us |
| 12 | 10040500 | LOCKWASHER Price: Call Us |
| 12 | 58-6460 | RING-RETAINING Price: $1.22 |
| 13 | 58-6470 | WASHER Price: $2.71 |
| 13 | 72110510 | BOLT Price: Call Us |
| 14 | 124343X | BRKT SHIELD TINE Price: Call Us |
| 14 | 58-6480 | WASHER Price: $1.57 |
| 15 | 104101X473 | SUB= 104101X421 Price: Call Us |
| 15 | 58-6490 | WASHER Price: $0.68 |
| 16 | 58-6700 | WASHER Price: $1.67 |
| 16 | 73220400 | SUB= 50675 Price: Call Us |
| 17 | 10040400 | LOCKWASHER Price: Call Us |
| 17 | 353-508 | PLUG-HH This part replaces 58-6710. Price: $7.96 |
| 18 | 58-6720 | O-RING Price: $1.30 |
| 18 | 72040410 | BOLT Price: Call Us |
| 19 | 102701X | GRIP CRT Price: Call Us |
| 19 | 58-6730 | SPRING Price: $13.26 |
| 20 | 73220600 | NUT.HEX.3/8-16UNC Price: Call Us |
| 21 | 102156X | SUB= 102156X500 Price: Call Us |
| 21 | 58-6760 | SPRING Price: $17.61 |
| 22 | 58-6770 | PLUNGER Price: $46.54 |
| 22 | 74930632 | BOLT Price: Call Us |
| 23 | 4440J | HINGE CRT Price: Call Us |
| 23 | 58-6780 | PLUG Price: $47.43 |
| 24 | 72140404 | BOLT Price: Call Us |
| 25 | 60-3780 | SEAL KIT Price: $134.23 |
| 25 | 6712 | J VINYL CAP TI Price: Call Us 6712 J |
| 26 | 109227X | PAD IDLER TI Price: Call Us |
| 27 | 60-6450 | DISC Price: $12.41 |
| 28 | 120588X | PIN HINGE Price: Call Us |
| 28 | 69-1790 | PLUNGER Price: $195.75 |
| 29 | 69-1800 | PLUG ASM Price: $79.15 |
| 30 | 69-1810 | SPRING Price: $6.09 |
| 31 | 69-1820 | SPRING Price: $41.27 |
| 32 | 69-1830 | PLUG ASM Price: $94.63 |
| 33 | 69-1840 | PLUNGER Price: $258.13 |
