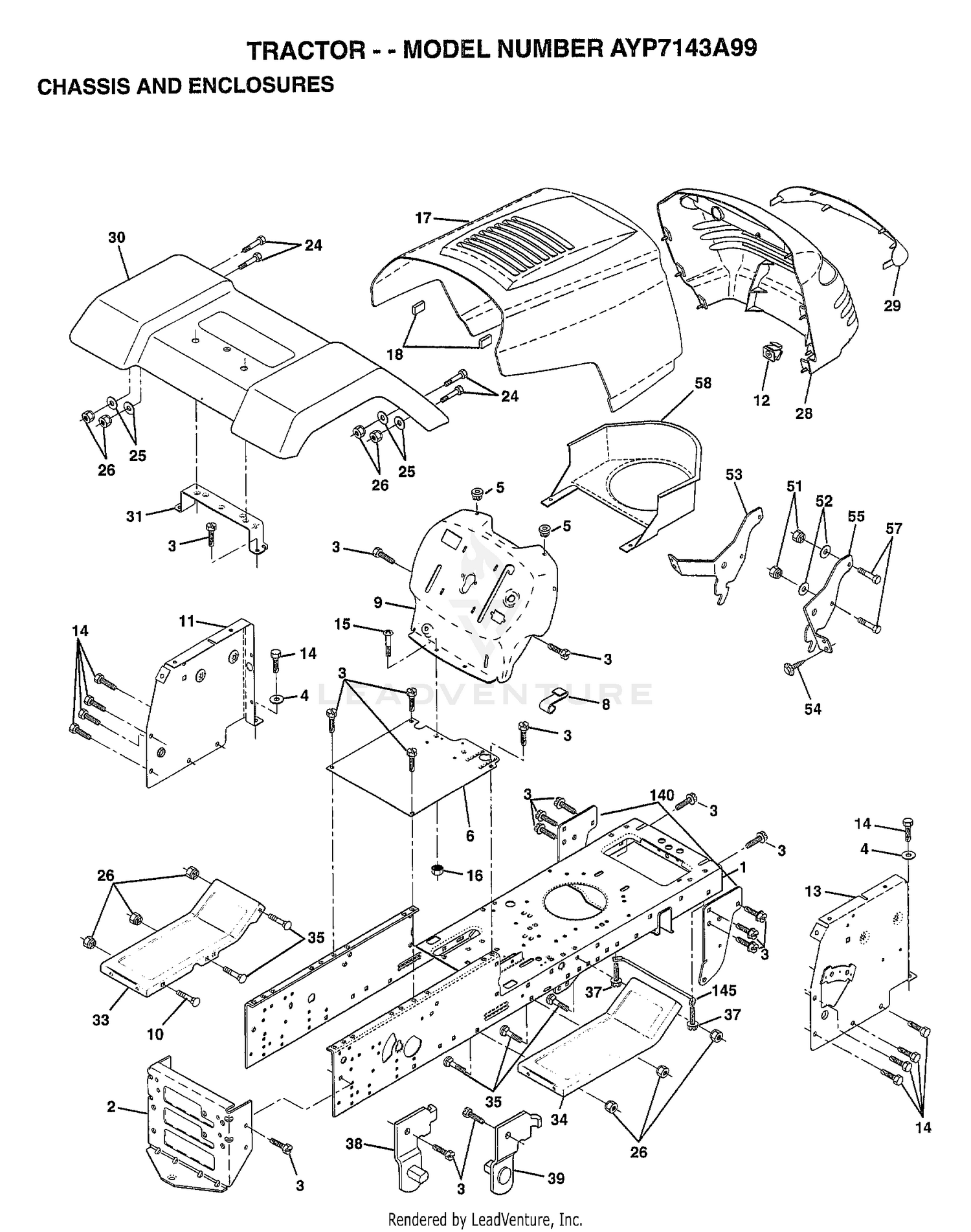

| Ref | Part Number | Description |
|---|
| 1 |
165480 |
CHASSIS.STAMPING Price: Call Us |
| 2 |
140356 |
SUB= 145009 Price: Call Us |
| 3 |
17490612 |
SCREW Price: Call Us |
| 4 |
19131216 |
WASHER Price: Call Us |
| 5 |
155272 |
BUMPER-HOOD/DASH Price: Call Us |
| 6 |
155924X011 |
SADDLE-SILKSCREEN Price: Call Us |
| 8 |
155138 |
CLIP.RETAINER Price: Call Us |
| 9 |
161937X011 |
DASH SILKSCREEN Price: Call Us |
| 010 |
105-3786 |
SPRING-START Price: $3.91 |
| 10 |
72140608 |
SUB= 72110608 Price: Call Us |
| 12 |
145660 |
CLIP.TINNERMAN Price: Call Us |
| 13 |
155934X010 |
SUB= 169117X010 Price: Call Us |
| 14 |
17490608 |
SCREW LT Price: Call Us |
| 15 |
74180512 |
SCREW Price: Call Us |
| 16 |
73510500 |
NUT Price: Call Us |
| 17 |
159639X505 |
HOOD.STEEL.ASSY Price: Call Us |
| 18 |
126938X |
SUB= 532126938 Price: Call Us |
| 020 |
98-9681 |
SPRING-GOVERNOR Price: $12.06 |
| 24 |
74780616 |
BOLT Price: Call Us |
| 25 |
19131312 |
WASHER Price: Call Us |
| 26 |
73800600 |
NUT Price: Call Us |
| 28 |
157373 |
GRILLE-MS428 Price: Call Us |
| 29 |
140273X599 |
LENS.GRILLE.PRIVATE LABEL Price: Call Us |
| 030 |
105-3787 |
FORK LEVER ASM Price: $220.75 |
| 30 |
157584X505 |
FENDER BRACKET Price: Call Us |
| 31 |
136619 |
BRKT FENDER Price: Call Us |
| 33 |
105476X505 |
FOOTREST LH Price: Call Us |
| 34 |
105475X505 |
FOOTREST RH Price: Call Us |
| 35 |
72110606 |
BOLT Price: Call Us |
| 37 |
17490508 |
SCREW LT Price: Call Us |
| 38 |
139886 |
BRACKET ASM LH Price: Call Us |
| 39 |
139887 |
BRACKET ASM RH Price: Call Us |
| 040 |
99-8380 |
FORK LEVER ASM Price: $172.25 |
| 050 |
105-3743 |
LEVER-FORK Price: $20.27 |
| 51 |
73800400 |
NUT Price: Call Us |
| 52 |
19091416 |
WASHER Price: Call Us |
| 53 |
144697 |
BRACKET.GRILLE.LH Price: Call Us |
| 54 |
161464 |
SCREW.HEX.WS.HD Price: Call Us |
| 55 |
144696 |
BRACKET.GRILLE.RH Price: Call Us |
| 57 |
74780412 |
SUB= 74780414 Price: Call Us |
| 58 |
150127 |
AIR DUCT Price: Call Us |
| 060 |
98-9566 |
SHAFT-LEVER, FORK Price: $23.27 |
| 070 |
98-9593 |
WASHER-PLAIN Price: $2.33 |
| 080 |
98-9570 |
BEARING-MINIATURIZE Price: $13.60 |
| 090 |
98-9369 |
CLIP-CIRCULAR, EXTERNAL Price: $0.70 |
| 100 |
130-8182 |
KIT-SHAFT COVER, FORK LEVER This part replaces 98-9569. Price: $13.53 |
| 110 |
98-9682 |
GASKET Price: $0.95 |
| 120 |
98-9351 |
BOLT Price: $0.98 |
| 130 |
98-9567 |
COLLAR Price: $3.78 |
| 140 |
158418 |
BRKT SUSPENSION Price: Call Us |
