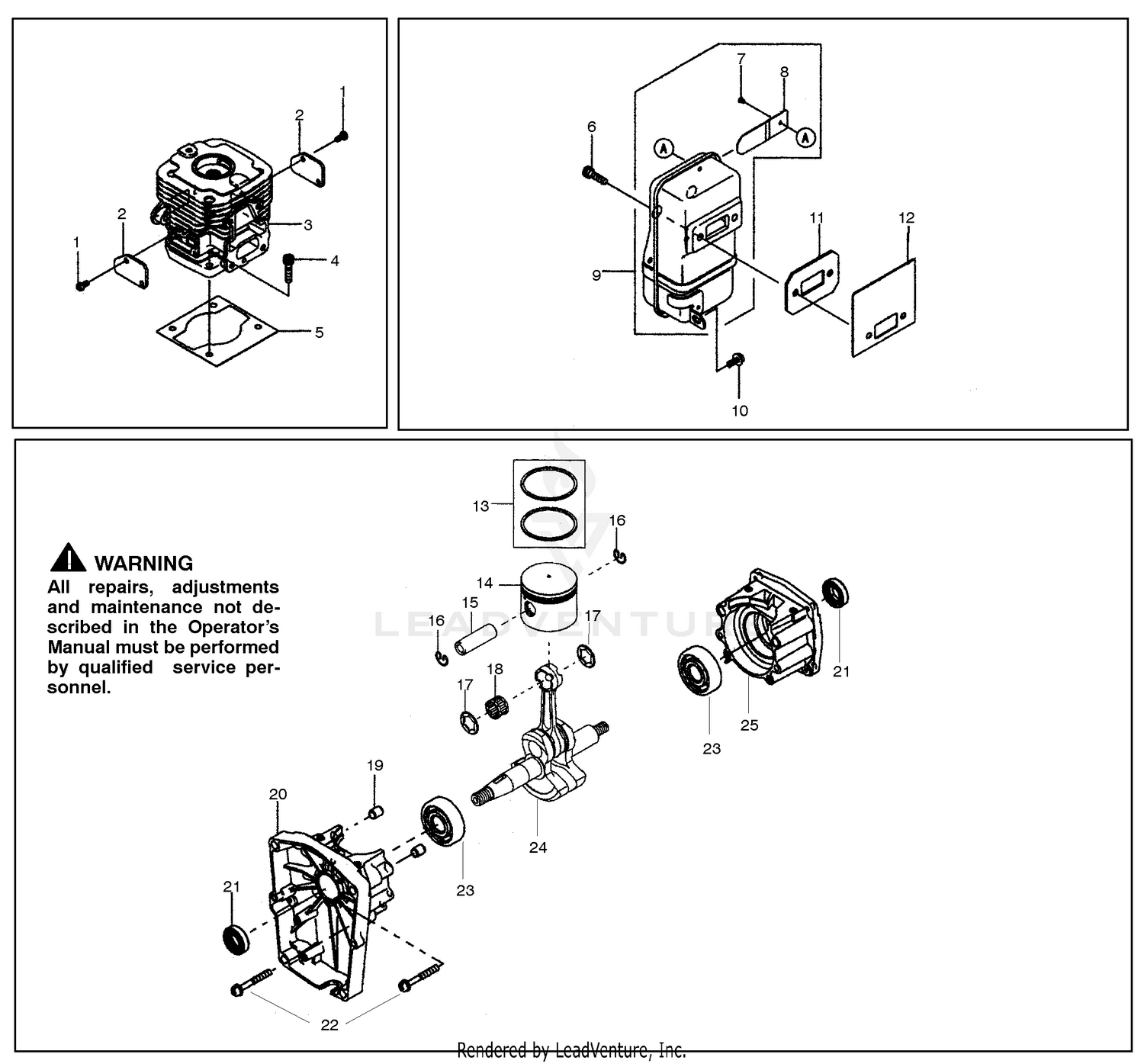

Engine
Parts (24)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 214B0408 | Screw Price: Call Us |
| 2 | 132712250 | Plate Price: $2.99 |
| 3 | 110052156 | Cylinder-Engine Price: $111.99 |
| 4 | 545145461 | Bolt m5x20 Price: $2.99 |
| 5 | 110612148 | Gasket-Cylinder Price: $6.99 |
| 6 | 545145465 | Bolt m6x20 Price: $1.99 |
| 7 | 920092411 | Screw Price: $1.99 |
| 8 | 180772134 | Spark Arrestor Price: $3.99 |
| 9 | 490692417 | Assy-Muffler Price: $79.99 |
| 10 | 545145467 | Screw m5x14 Price: $1.99 |
| 11 | 110612186 | Gasket Price: $4.99 |
| 12 | 110612188 | Gasket Price: $7.99 |
| 13 | 130086067 | Ring-Piston (Set) Price: $17.99 |
| 14 | 130012164 | Piston-Engine Price: $32.99 |
| 15 | 130022094 | Pin-Piston Price: $17.99 |
| 16 | 920332058 | Ring-Snap Price: $1.99 |
| 17 | 920262352 | Spacer Price: $2.99 |
| 18 | 130332059 | Bearing-Small End Price: $11.99 |
| 19 | 920431302 | Pin Price: $1.99 |
| 20 | 140802057 | Crankcase Price: $54.99 |
| 21 | 920492259 | Seal-Oil (15-25-7-F) Price: $17.99 |
| 22 | 545145462 | Screw m5x40 Price: $1.99 |
| 23 | 920452269 | Bearing-Ball Price: $14.99 |
| 24 | 491192224 | Assy-Crankshaft Price: $199.99 |
