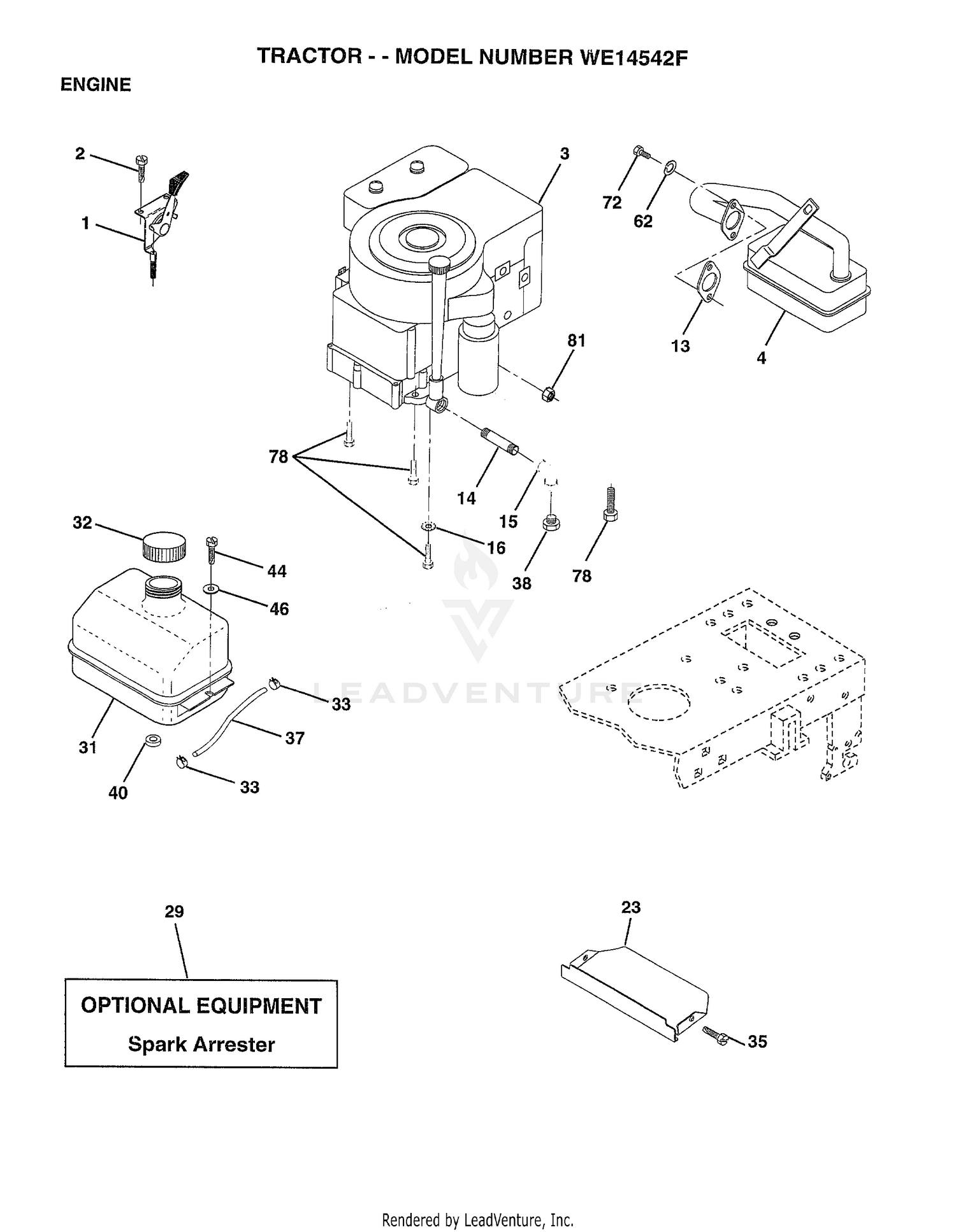

| Ref | Part Number | Description |
|---|
| 1 |
140310 |
CONTROL THROTTLE Price: Call Us |
| 2 |
17720410 |
SCREW LT Price: Call Us |
| 4 |
137352 |
MUFFLER Price: Call Us |
| 10 |
112-7026 |
WHEEL BEARING CASE ASM This part replaces 98-9480. Price: $196.85 |
| 13 |
272293 |
GASKET ENG 1 313 LD TIN PLATED Price: Call Us |
| 14 |
13280324 |
PIPE NIPPLE Price: Call Us |
| 15 |
13200300 |
ELBOW Price: Call Us |
| 16 |
11050600 |
LOCKWASHER Price: Call Us |
| 20 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 23 |
159880 |
SHIELD.BRN/DBR.GD Price: Call Us |
| 29 |
137180 |
SUB= 532137180 Price: Call Us |
| 30 |
131-6554 |
GASKET-CASE, BEARING This part replaces 98-9634. Price: $7.12 |
| 31 |
109202X |
TANK.FUEL.LT. Price: Call Us |
| 32 |
140527 |
CAP ASM FUEL Price: Call Us |
| 33 |
123487X |
HOSE CLAMP Price: Call Us |
| 35 |
17490512 |
SCREW Price: Call Us |
| 37 |
137040 |
LINE FUEL Price: Call Us |
| 40 |
112-7046 |
COVER-CASE, BEARING This part replaces 98-9487. Price: $66.00 |
| 40 |
124028X |
SUB= 532124028 Price: Call Us |
| 44 |
17490412 |
SCREW HEX CRT Price: Call Us |
| 46 |
19091416 |
WASHER Price: Call Us |
| 50 |
112-0180 |
SEAL-OIL This part replaces 98-9483. Price: $58.48 |
| 60 |
98-9635 |
GASKET-COVER, BEARING CASE Price: $12.61 |
| 62 |
10040500 |
LOCKWASHER Price: Call Us |
| 70 |
98-9352 |
BOLT Price: $0.80 |
| 72 |
71070512 |
SCREW Price: Call Us |
| 78 |
17490620 |
SCREW Price: Call Us |
| 80 |
98-7568 |
BOLT Price: $0.84 |
| 90 |
115-4106 |
MAIN BEARING CASE ASM This part replaces 98-9606. Price: $189.84 |
| 100 |
98-9484 |
BOLT-CASE, BEARING Price: $6.05 |
| 110 |
98-9485 |
BOLT-CASE, BEARING Price: $22.80 |
| 120 |
115-4107 |
MAIN BEARING CASE ASM This part replaces 98-9607. Price: $152.88 |
