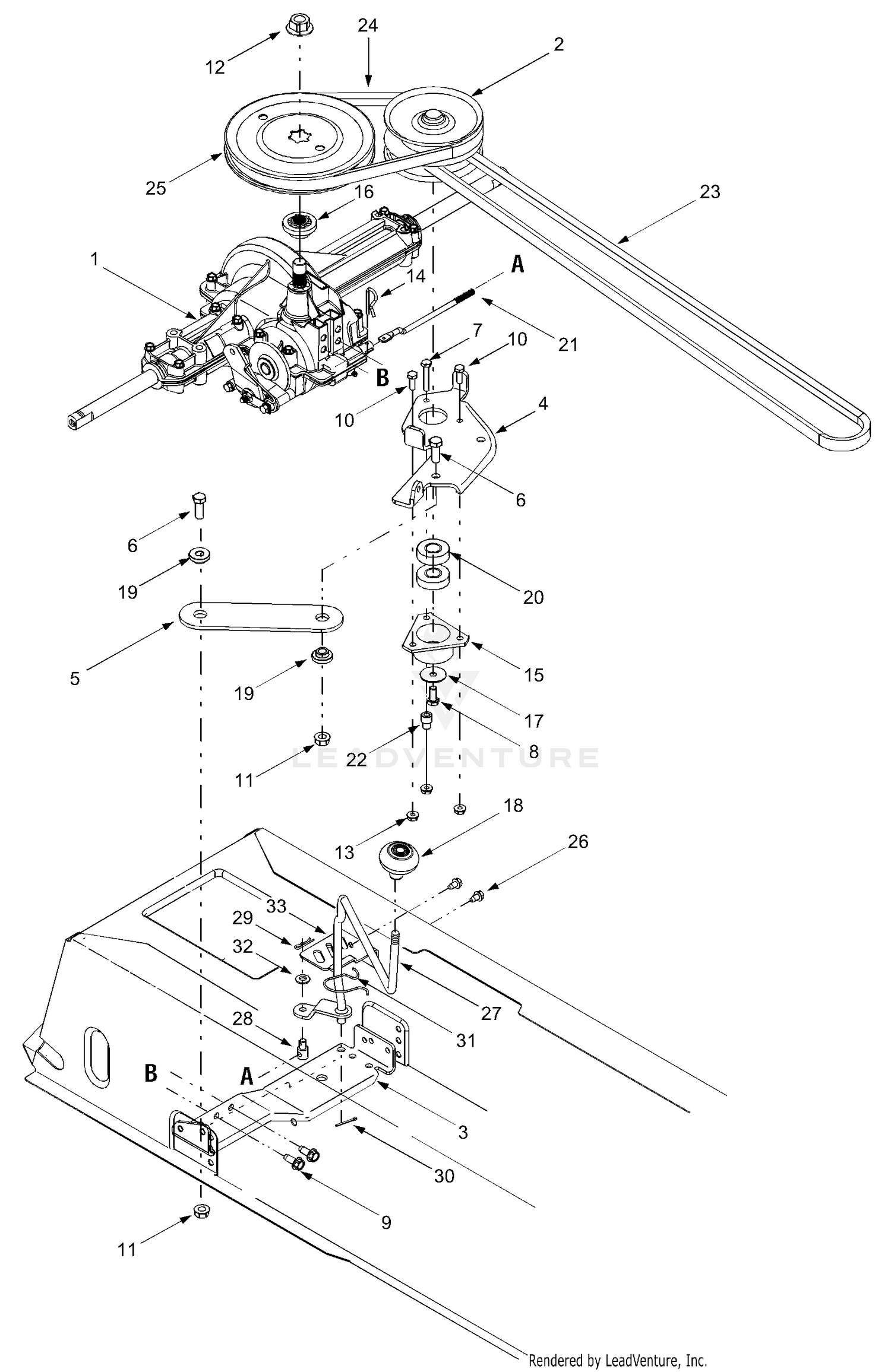

| Ref | Part Number | Description |
|---|
| 1 |
753-05851 |
Drive Assembly This part replaces 618-04034. Price: $590.05 |
| 2 |
656P05011 |
VARIABLE SPEED PULLEY (4.75 OD) This part replaces 656-0059A. Price: $90.80 |
| 3 |
753-05343 |
TORQUE BRACKET KIT Not Available This part replaces 683-04055. Price: |
| 4 |
683-04056 |
VARIABLE SPEED BRACKET Not Available Price: |
| 5 |
683-04057 |
Variable-speed Bracket Price: $13.49 |
| 6 |
710-0514 |
Hex Cap Screw, 3/8-16 x 1.0 Price: $3.78 |
| 7 |
710-0606 |
Hex Cap Screw, 1/4-20 x 1.5 Price: $4.67 |
| 8 |
710-0627 |
Hex Cap Screw, 5/16-24 x .75 Price: $3.68 |
| 9 |
710-1260A |
Screw, 5/16-18 x .75 Price: $3.34 |
| 10 |
710-3015 |
Hex Screw,1/4-20 x .75 Price: $3.65 |
| 11 |
912-0431 |
Hex Flange Nut 3/8-16 This part replaces 7120431. Price: $4.29 |
| 12 |
712-0700 |
Flange Nut, 9/16-18 Price: $10.12 |
| 13 |
912-3027 |
LOCK NUT 1/4 This part replaces 712-3027. Price: $3.85 |
| 14 |
914-0209 |
Cotter .Pin, Internal,.125 Dia. This part replaces 714-0209. Price: $3.22 |
| 15 |
718-04012 |
Bearing Cup Price: $19.55 |
| 16 |
718-04407 |
Pulley Hub, 5/8 SPLINE This part replaces 718-0758A. Price: $11.11 |
| 17 |
736-0362 |
Flat Washer, .320 x 1.25 x .06 Price: $3.93 |
| 18 |
720-04028 |
Shift Knob Price: $9.44 |
| 19 |
738-0372B |
Shoulder Spacer, 1.0 x .38 x .38 Price: $8.78 |
| 20 |
941-0600 |
BALL BEARING This part replaces 741-0600. Price: $23.34 |
| 21 |
747-04072 |
SHIFT ROD Not Available Price: |
| 22 |
950-04099 |
SPACER-STEPPER .265ID x .750LG Not Available This part replaces 750-04099. Price: |
| 23 |
954-04001A |
LOWER DRIVE BELT This part replaces 754-04001A. Price: $26.27 |
| 24 |
954-04002 |
Upper Drive Belt This part replaces 754-04002. Price: $15.08 |
| 25 |
956-04002 |
Pulley, V-Type, 7.25 Dia. This part replaces 756-04002. Price: $24.33 |
| 26 |
710-0599 |
Self-tapping Screw, 1/4-20 x .5 Price: $3.86 |
| 27 |
647-04019 |
Shift Lever Assembly Price: Call Us |
| 28 |
711-0736 |
ADJUSTMENT FERRULE 1/4-20 x 1.00 Not Available Price: |
| 29 |
714-0104 |
Cotter Pin, 1.13 Price: $3.90 |
| 30 |
714-0470 |
Cotter Pin, 1.25 Price: $3.90 |
| 31 |
932-04067 |
SPRING CLIP Not Available This part replaces 732-04067. Price: |
| 32 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
