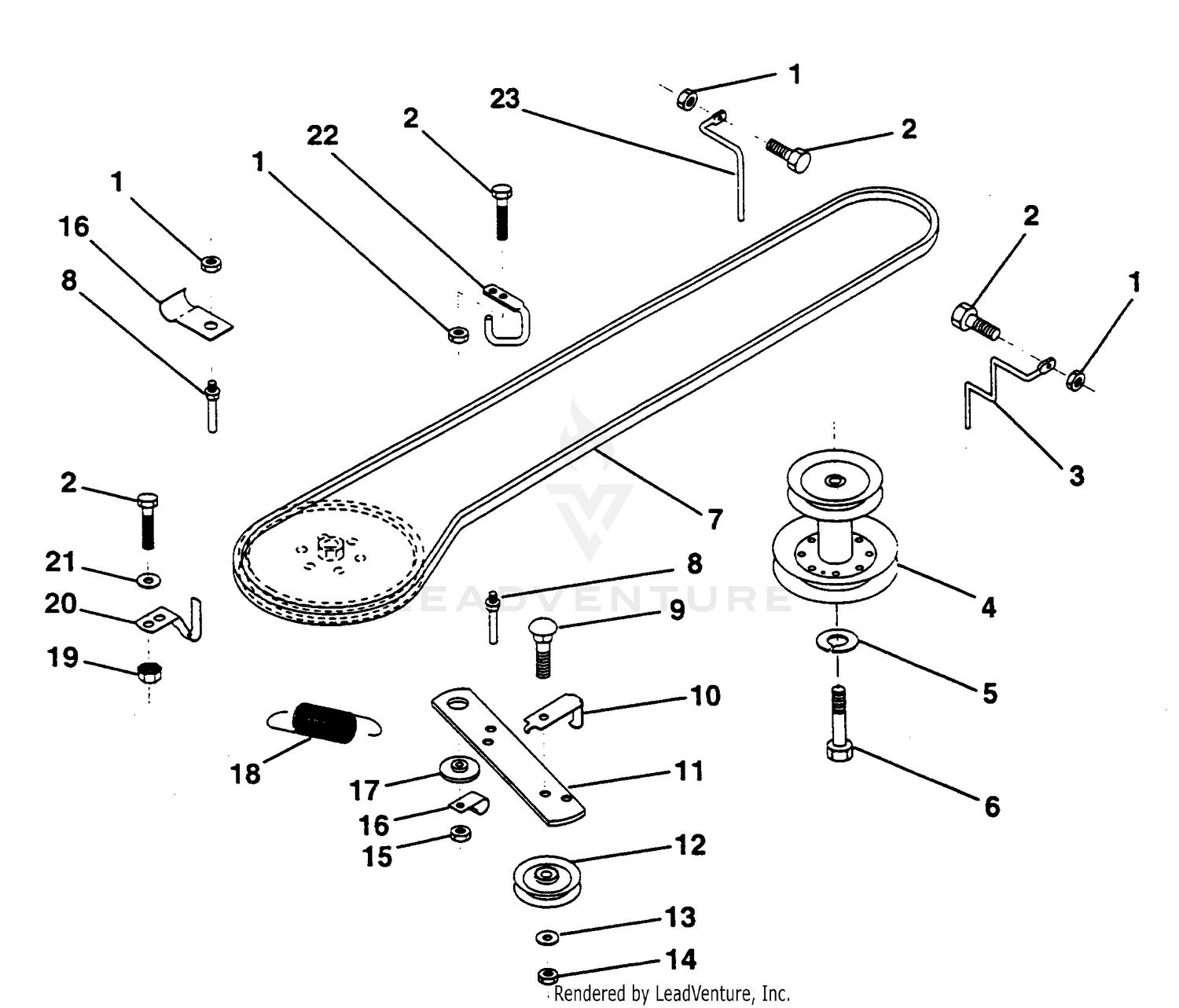

GROUND DRIVE

GROUND DRIVE

Parts (34)

RefPart NumberDescription
1 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873680500. Price: $2.69
1 94-4099 SEAL KIT Price: $101.80
2 539976934 HCS.5/16-18X3/4 This part replaces 874760512. Price: $1.99
3 532131205 Keeper, Mower Drive, R. H. Price: $6.79
3 94-4095 CENTERING SPRING KIT Price: $120.10
4 532138029 Pulley, Engine This part replaces 532134828. Price: $48.99
5 539990247 LOCKWASHER.7/16 This part replaces 810040700. Price: $1.99
5 94-4098 RING-RETAINING Price: $6.40
6 871171744 Bolt, Fin Hex 7/16-20 Price: $3.33
6 94-4094 PIN Price: $19.31
7 532124525 Traction, V-Belt Drive Price: $34.99
8 532164173 KEEPER.BELT.ENGINE This part replaces 532123405. Price: $4.99
8 94-4096 BEARING KIT Price: $83.15
9 872140612 Bolt, Carr. 3/8-16 UNC x 1-1/2 Price: $2.99
9 94-4088 SCREW-CAP Price: $9.64
10 532164173 KEEPER.BELT.ENGINE This part replaces 532123405. Price: $4.99
10 94-4089 CAP-END Price: $93.84
11 532140911 Arm, Ground Drive Clutch This part replaces 532123395. Price: $4.35
11 94-4090 GEROTOR Price: $393.36
12 532123674 Pulley, Idler, Flat This part replaces 532004859. Price: $17.99
12 94-4091 SPACER Price: $19.12
13 819131316 Washer 13/32 x 13/16 x 16 Ga. Price: $2.99
13 94-4093 DISCONTINUED Price: Call Us
14 873680600 Nut This part replaces 873930600. Price: $1.99
14 94-4092 PLATE-WEAR Price: $108.71
15 873680600 Nut, Crownlock 3/8-16 UNC Price: $1.99
15 94-4097 PLUG ASM Price: $46.96
16 532126471 Clip, insulated Price: $2.99
17 532165723 Spacer Retainer This part replaces 532122052. Price: $2.99
18 532131459 Spring Extension Price: $4.99
19 873800500 Nut Lock Hex W/Ins. 5/16-18 Unc P This part replaces 873510500. Price: $2.69
20 532123891 Keeper, T/A Ground Drive Belt Price: $10.28
21 734116301 WASHER - 15X7.3X1.6 This part replaces 819111016. Price: $2.02
22 532123404 Keeper, Frame Ground Drive Belt Price: $3.22
