Home / OPE / Riding Products / 30659, LT-F3000 Heavy-Duty Triple Turf Flail Mower, (SN 406500000-407099999) / Center Arm Assembly

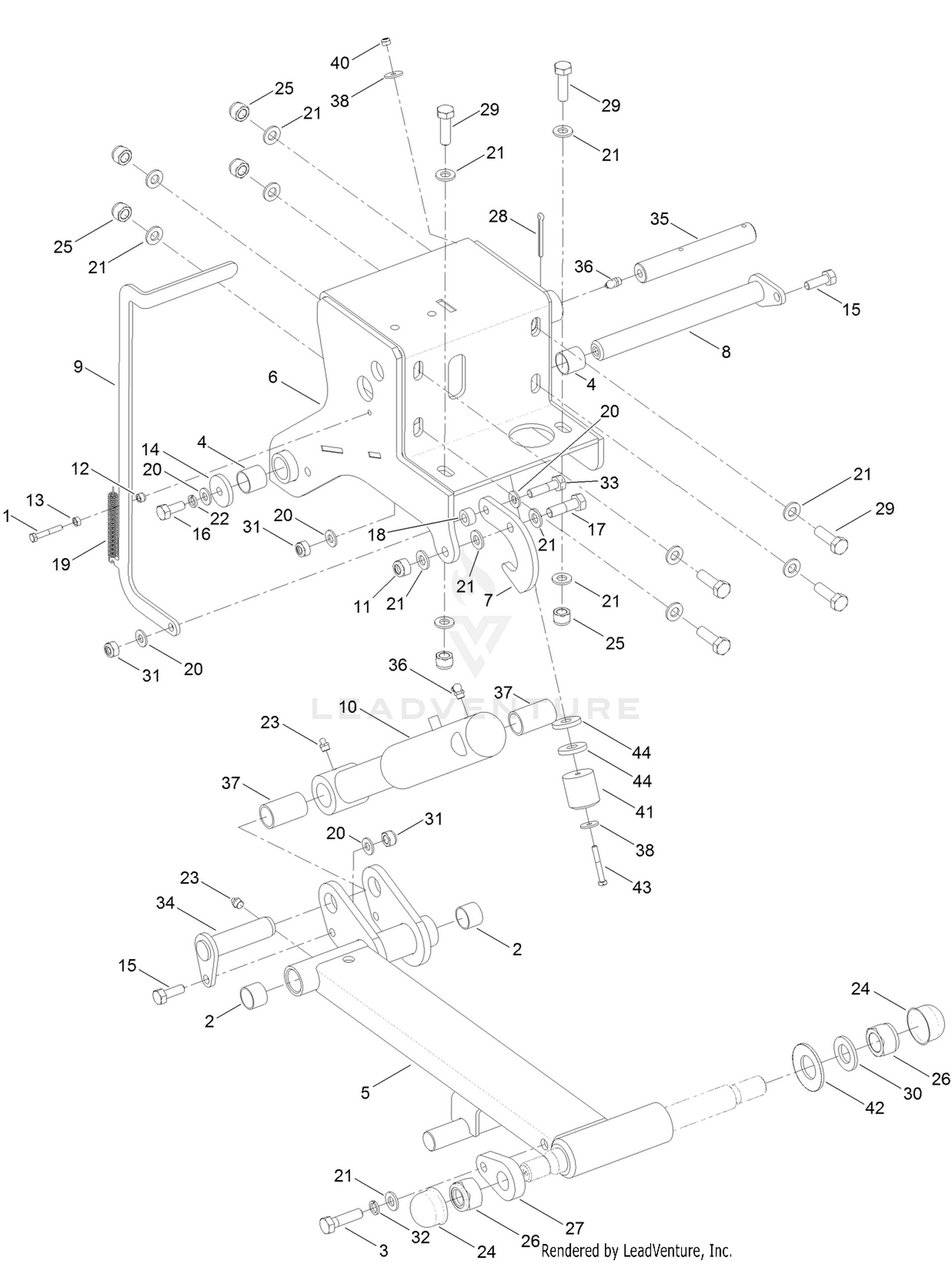

Center Arm Assembly

Center Arm Assembly

Parts (42)

RefPart NumberDescription
1 ZBH1F040U HEX HD BOLT M6*40 Price: $1.26
2 74-07-028 BUSH DEVOL 28DIAX25X20 Price: $8.10
3 ZBH1L045U HEX HD.BOLT M12*45 Price: $1.38
4 876066 BUSH Price: $8.34
5 111-5158-03 CENTRE ARM ASM Price: $439.16
6 111-5190-03 CENTRE ARM MOUNT ASM Price: $497.12
7 111-3099-01 CENTER HEAD LATCH Price: $14.70
8 111-3248 FRONT ARM PIVOT PIN W/A Price: $43.54
9 111-3122-01 HANDLE - CENTER HEAD Price: $26.49
10 910109W CYLINDER LIFT Price: $275.44
11 09650 NUT Price: $1.40
12 09544 NUT M6 NYL INS GD 8 Price: $1.34
13 09437 NUT M6 PLAIN Price: $1.40
14 111-3366 PLATE BUSH RETAINING Price: $4.57
15 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
16 09395 SETSCREW M10 X 25 ZN & PASS Price: $1.40
17 63-11-010 HEX HD.BOLT M12*40HT/10.9 Price: $6.59
18 111-3457 SPACER-CENTER HEAD LATCH Price: $13.74
19 111-3329 SPRING-CENTER HEAD LATCH Price: $12.21
20 ZWQ1J000U PLAIN HEAVY WASHER M10 Price: $1.38
21 HY09485 WASHER M12 PLAIN Price: $1.40
22 09480 WASHER M10 SC SPRING Price: $1.36
23 10-11-017 GREASE NIPPLE 1/8BSP STR Price: $1.44
24 10-11-100 NUT CAP M24 Price: $1.97
25 ZNN1L000U HEX.NUT NYLOC M12 Price: $1.40
26 ZNN1X000U HEX.NUT M24 NYLOC Price: $5.40
27 63-01-185W RETAINER Price: $48.24
28 74-11-003 SPLIT PIN 5 DIA X 50 Price: $1.39
29 ZDH1L040U HEX.HD.SET SCW M12*40 Price: $1.31
30 09555 WASHER M24 PLAIN Price: $1.31
31 ZNN1J000U HEX.NUT NYLOC M10 Price: $1.42
32 09599 WASHER Price: $1.42
33 09611 BOLT M10 X 40 Price: $1.40
34 74-05-108 PIN WING ARM ROD Price: $38.79
35 111-5212 PIN 25 DIA X 165 LG HOLE / PLN Price: $17.00
36 63-07-027 GREASE NIPPLE 1/8BSP 9OD Price: $1.55
37 25-07-007 TENSION BUSH 30/25*50 LG Price: $14.47
38 09263 WASHER 1/4 X 7/8 X .08" THK Price: $1.34
40 09438 NUT M6 X 1.5 PLAIN Price: $1.39
41 61-07-003 RUBBER BUFFER Price: $9.55
42 767815 WASHER-BELLEVILLE Price: $7.80
43 ZDH1F050U SETSCREW Price: Call Us
