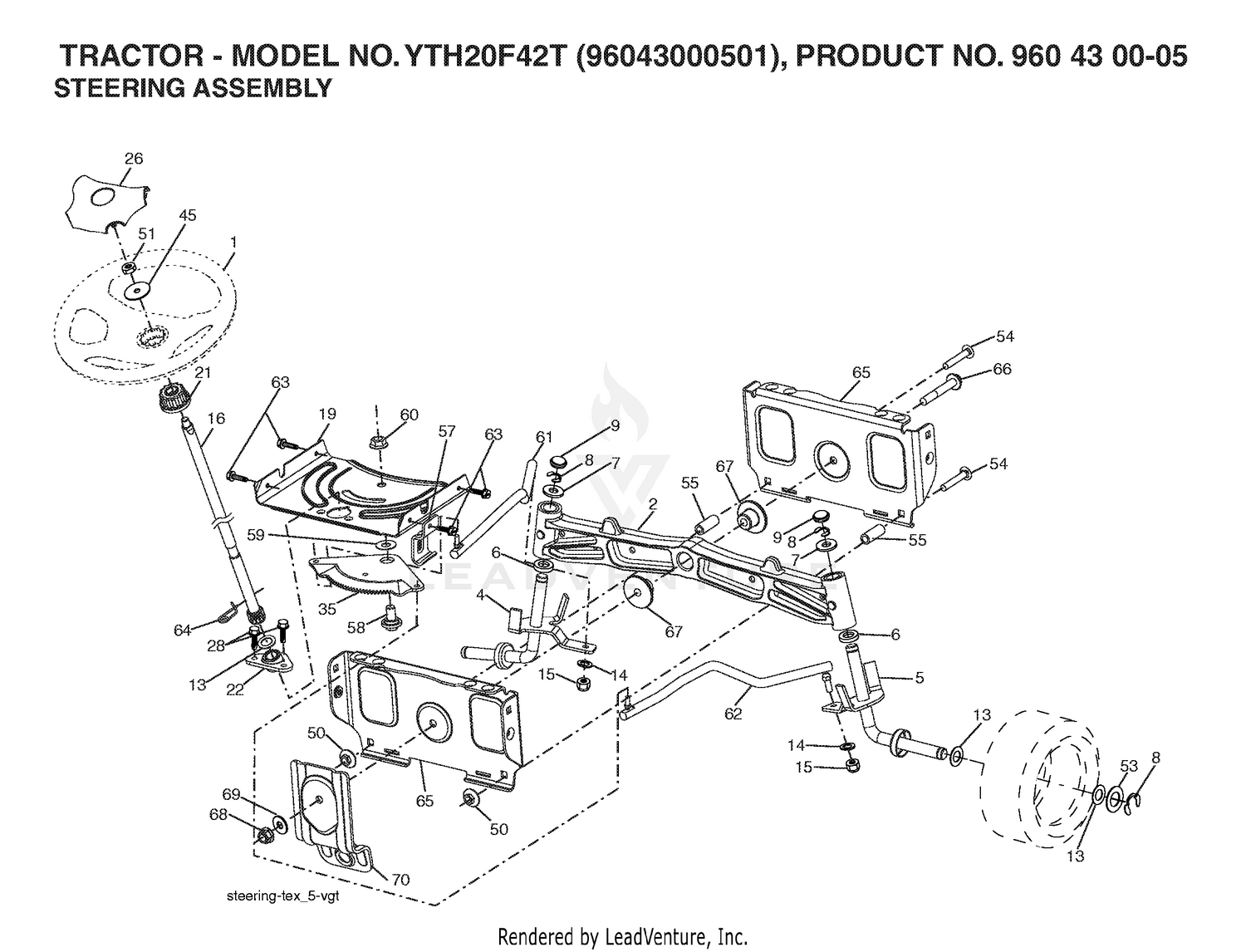

| Ref | Part Number | Description |
|---|
| 1 |
532186093 |
WHEEL.STEERING.LEGND2.GRY This part replaces 532193943. Price: $89.99 |
| 2 |
138-1204 |
SEAL-BOOT Price: $28.62 |
| 2 |
532413591 |
AXLE.SVC.ASM CAST IRON.TEX This part replaces 532195968. Price: $119.99 |
| 4 |
138-1205 |
BEARING-CUP Price: $22.22 |
| 4 |
596873601 |
SPINDLE.WELDED.LH.15"TEX.X431 This part replaces 532403087. Price: $14.99 |
| 5 |
138-1206 |
BEARING-CONE Price: $22.22 |
| 5 |
538691201 |
SPINDLE.WLDMT.RH.15INTIRE.X431 This part replaces 532403088. Price: $19.99 |
| 6 |
105-8124 |
STUD-WHEEL Price: $7.84 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 7 |
138-1207 |
SCREW-SOCKET HEAD Price: $2.58 |
| 7 |
532121748 |
WASHER Price: $3.99 |
| 8 |
138-1208 |
WASHER-LOCK Price: $2.71 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 10 |
105-8121 |
PIN-DOWEL Price: $0.41 |
| 12 |
138-6928 |
SPACER Price: $22.26 |
| 13 |
138-6929 |
WASHER Price: $5.09 |
| 13 |
532121749 |
WASHER Price: $2.99 |
| 14 |
138-6930 |
NUT-LOCK Price: $40.36 |
| 15 |
138-1209 |
GEAR-RING Price: $837.28 |
| 15 |
873540600 |
NUT CROWNLOCK 3/8-24 Price: $3.99 |
| 16 |
138-1210 |
RING-SNAP Price: $25.99 |
| 16 |
587738904 |
KIT.SRVC.STEERINGSHAFT.2HISHFT This part replaces 532194746. Price: $34.99 |
| 17 |
353-990 |
PLUG ASM Price: $10.01 |
| 18 |
237-78 |
O-RING Price: $3.85 |
| 19 |
138-1211 |
PLUG-FLANGE, MAGNETIC Price: $7.25 |
| 19 |
531169101 |
SERVICE KIT PLATE PLATE.STEER. This part replaces 532194729. Price: $19.99 |
| 20 |
138-1212 |
O-RING Price: $1.73 |
| 21 |
138-1213 |
CAP-END Price: $89.39 |
| 21 |
587738905 |
KIT.SRVC.STEERINGSHAFT.ADAPTER This part replaces 532186737. Price: $7.99 |
| 22 |
138-1214 |
WASHER-THRUST, SUN Price: $9.02 |
| 22 |
587738901 |
KIT.SRVC.STEERINGSHAFT.LWRBSHG This part replaces 532194845. Price: $14.99 |
| 23 |
105-8131 |
RING-RETAINING Price: $3.05 |
| 25 |
138-1215 |
GEAR-PRIMARY, SUN Price: $97.58 |
| 26 |
138-1216 |
SHAFT-DRIVE Price: $300.56 |
| 26 |
532193652 |
INSERT.CAP.STRG.WH.GRAY Price: $11.99 |
| 27 |
138-1217 |
PRIMARY CARRIER ASM Price: $917.18 |
| 28 |
138-1218 |
SECONDARY CARRIER ASM Price: $802.56 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 35 |
532194732 |
GEAR.SECTOR.PLATE.DDL. Price: $27.99 |
| 45 |
819183812 |
WASHER 9/16"ID, 2 3/8"OD Price: $7.99 |
| 50 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 51 |
873940800 |
NUT.HEX.1/2-20 Price: $3.99 |
| 53 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 54 |
874760636 |
BOLT Price: $4.99 |
| 55 |
532197636 |
SPACER.BRACE.AXLE (2 2) Price: $5.99 |
| 57 |
532197246 |
BRKT.UPSTOP.GT/LT.TEX Price: $5.99 |
| 58 |
532194747 |
BOLT.SHOULDER.SECTOR.P Price: $7.99 |
| 59 |
532194748 |
WASHER.THURST.SECTOR.S Price: $4.99 |
| 60 |
583612801 |
NUT.FLANGE.LOCK.5/8-11 This part replaces 873971000. Price: $3.99 |
| 61 |
597047802 |
Links This part replaces 532194740. Price: $11.99 |
| 62 |
597047902 |
Links This part replaces 532194741. Price: $11.99 |
| 63 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 64 |
532199849 |
RETAINER.CLIP.SPRING.S Price: $4.99 |
| 65 |
532194734 |
BRACE.AXLE.FRONT.NLT/N Price: $37.99 |
| 66 |
871020748 |
BOLT HEX FGHD 7/16-14 X 3 SERR Price: $4.99 |
| 67 |
529496302 |
BUSHING, AXLE This part replaces 532194737. Price: $2.99 |
| 68 |
873900700 |
NUT.LOCK.FLANGE.7/16 Price: $3.99 |
| 69 |
532199162 |
WASHER.1.5X.505X.118 Price: $4.99 |
| 70 |
585338802 |
BRACKET FRONT DECK SUSPENSION This part replaces 532196197. Price: $14.99 |
