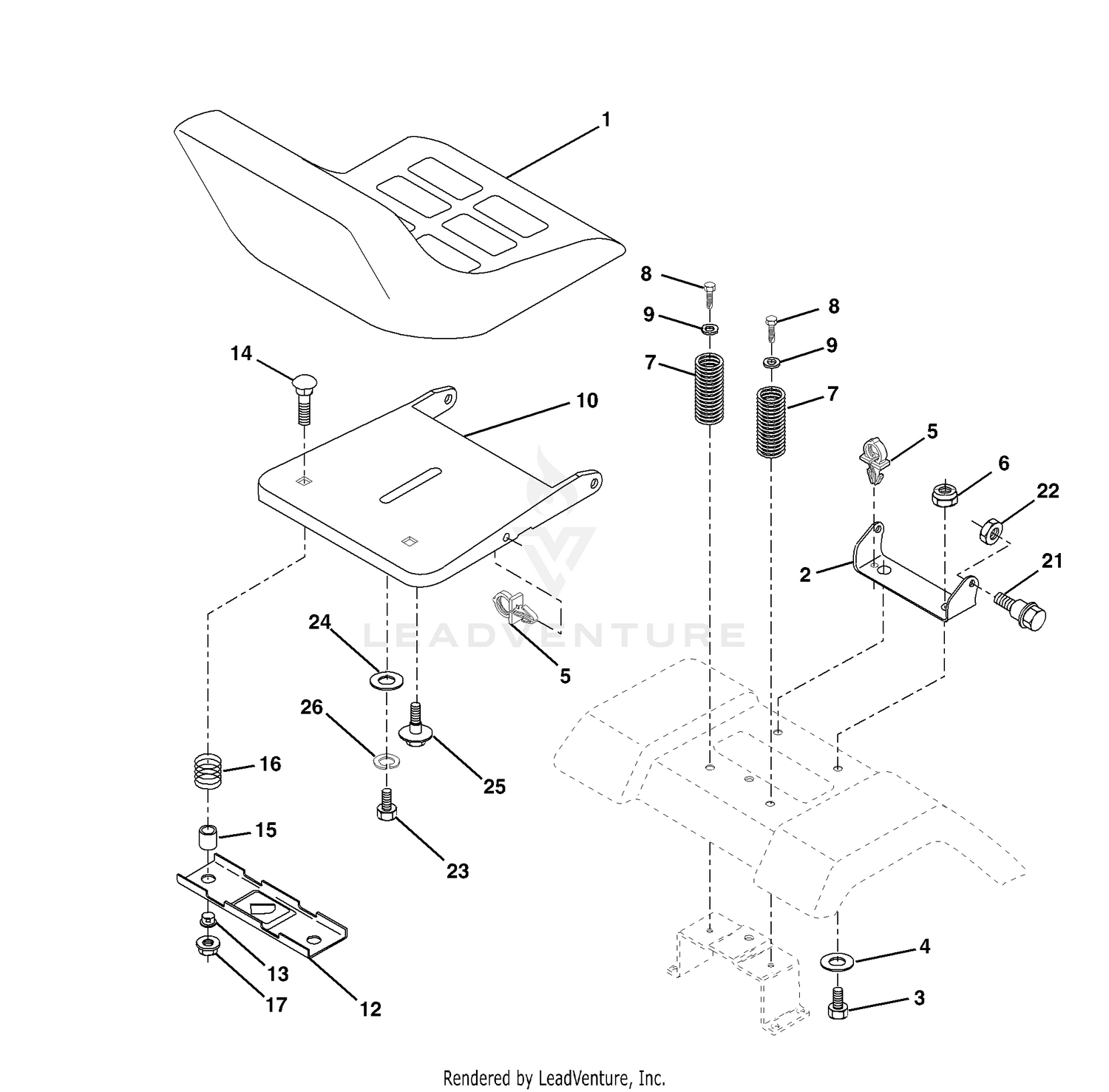

| Ref | Part Number | Description |
|---|
| 1 |
127426X |
Seat Price: Call Us |
| 1 |
98-1471 |
WHEEL-STEERING Price: $145.99 |
| 2 |
140551 |
Bracket Seat Pivot Price: Call Us |
| 3 |
71110616 |
Bolt Hex 3/8 - 16 x 1 Price: Call Us |
| 4 |
19131610 |
Washer 13/32 x 1 x10Ga. Price: Call Us |
| 5 |
145006 |
Clip Push-In Hinged Price: Call Us |
| 6 |
73800600 |
Nut Lock Hex w/Ins 3/8 - 16 Price: Call Us |
| 6 |
93-6768-03 |
GEAR-SECTOR Price: $243.62 |
| 7 |
124181X |
Spring Seat Cprsn 2 250 Blk Zi Price: Call Us |
| 8 |
17000616 |
Screw 3/8-16 x 1.5 Price: Call Us |
| 9 |
19131614 |
Washer 13/32 x 1 x 14 Ga Price: Call Us |
| 10 |
182493 |
Pan Pnt Seat (Blk) Price: Call Us |
| 11 |
3256-27 |
WASHER-FLAT Price: $0.47 |
| 12 |
121246X |
Bracket Pnt Mounting Switch Price: Call Us |
| 12 |
3296-33 |
NUT-LOCK, NI Price: $2.39 |
| 13 |
121248X |
Bushing Snap Blk Nyl Price: Call Us |
| 14 |
72050412 |
Bolt Rdhd Sht Nk 1/4 - 20 x 1 -1/2 Price: Call Us |
| 14 |
94-5114 |
DISCONTINUED Price: Call Us |
| 15 |
134300 |
Spacer Split .28 x .96 Price: Call Us |
| 16 |
121250X |
Spring Cprsn Price: Call Us |
| 17 |
123976X |
Nut Lock 1/4 Lge Flg Price: Call Us |
| 17 |
3-6498 |
WASHER-THRUST Price: $4.58 |
| 18 |
3220-3 |
NUT-HJ Price: $0.28 |
| 19 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 20 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 21 |
171852 |
Bolt Shoulder 5/16-18 Unc-2A Price: Call Us |
| 21 |
93-6769-03 |
COLUMN-STEERING Price: $106.54 |
| 22 |
73800500 |
Nut Lock Hex w/Ins 5/16 - 18 Price: Call Us |
| 22 |
94-5969 |
SHAFT AND GEAR-STEERING Price: $352.69 |
| 23 |
256-27 |
BUSHING Price: $8.21 |
| 23 |
71110814 |
Bolt Hex Price: Call Us |
| 24 |
19171912 |
Washer 17/32 x 1-3/16 x 12 Ga Price: Call Us |
| 24 |
87-8640 |
WASHER-FLAT Price: $0.68 |
| 25 |
127018X |
Bolt Shoulder 5/16-18 x .62 Price: Call Us |
| 25 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 26 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 27 |
3296-25 |
NUT-LOCK, NI Price: $1.34 |
| 28 |
92-1812 |
SHAFT-PIVOT, LIFT Price: $51.90 |
| 29 |
32144-109 |
SCREW-THD Price: $1.29 |
| 30 |
323-7 |
SCREW-HH Price: $0.65 |
| 31 |
92-1818-01 |
ARM-SPRING, TENSION Price: $13.39 |
| 32 |
3296-39 |
NUT-LOCK, NI Price: $2.29 |
| 33 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 34 |
323-18 |
SCREW-HH Price: $0.82 |
| 35 |
93-6738 |
CHAIN Price: $13.80 |
| 36 |
21-9260 |
COVER-DUST Price: $8.19 |
| 37 |
98-1459 |
DECAL Price: $3.93 |
| 38 |
323-9 |
SCREW-HH Price: $1.29 |
| 39 |
98-3445 |
SPACER Price: $6.02 |
| 40 |
98-3446 |
PLATE-REINFORCEMENT Price: $11.38 |
