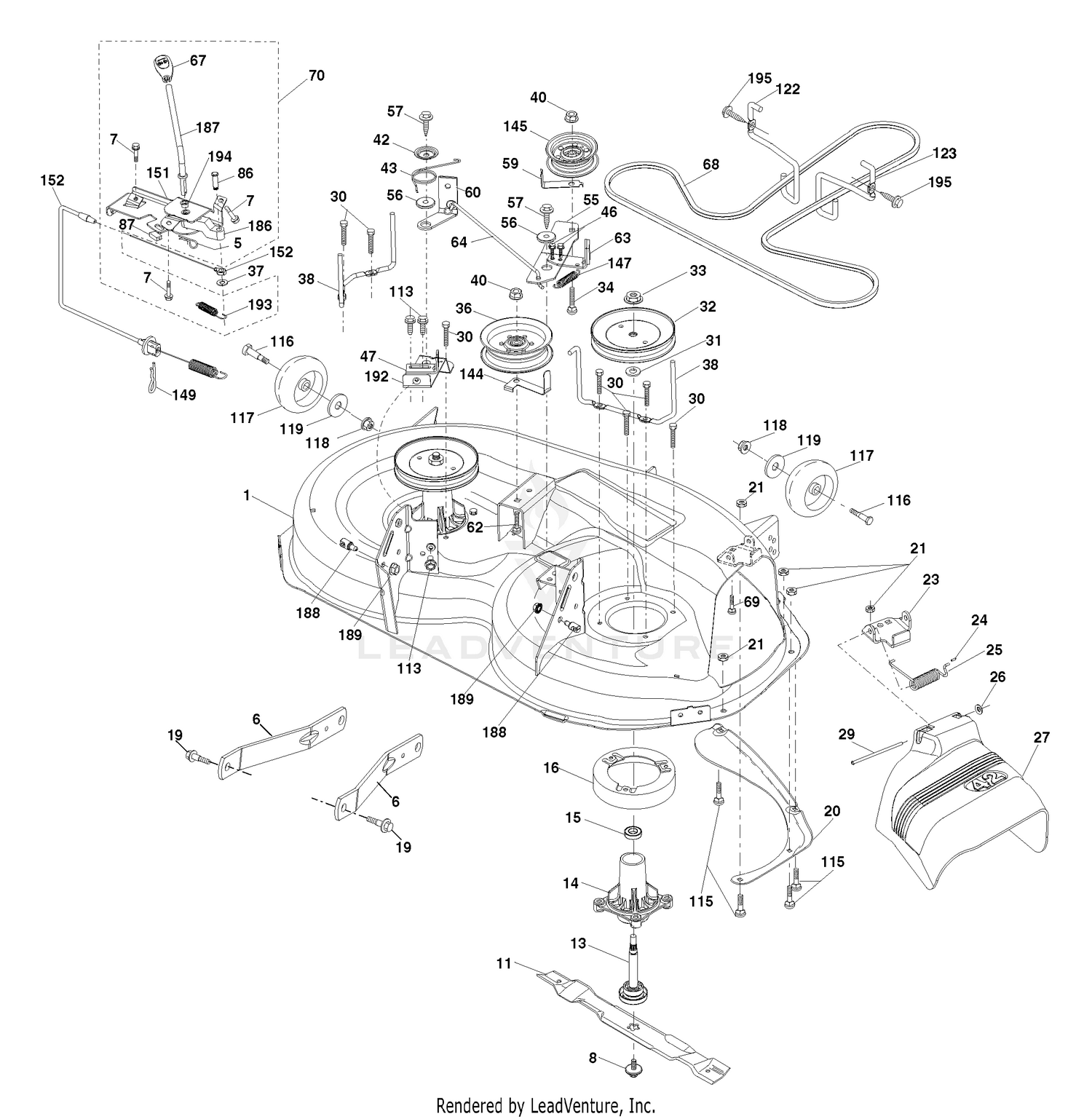

| Ref | Part Number | Description |
|---|
| 1 |
196495X421 |
Deck Weldment Mower Price: Call Us |
| 1 |
93-5425 |
DECAL-CONTROL, DL Price: $47.04 |
| 2 |
76-9060 |
GAUGE-TEMPERATURE Price: $110.89 |
| 3 |
43-6280 |
DISCONTINUED Price: Call Us |
| 4 |
93-5376-03 |
PLATE-CONTROL, DSL Price: $18.07 |
| 5 |
120-2244 |
HOURMETER This part replaces 66-2950. Price: $48.06 |
| 5 |
4939M |
Retainer Spring Price: Call Us |
| 6 |
195186 |
Arm Suspension Price: Call Us |
| 6 |
72-9760 |
SWITCH Price: $179.11 |
| 7 |
191611 |
Screw 10 x 3/4 Single Lead Hex Price: Call Us |
| 7 |
66-2940 |
GAUGE-FUEL Price: $178.34 |
| 8 |
193003 |
Bolt/Washer asm 7/16-20 unf Price: Call Us |
| 8 |
93-5350 |
CABLE-THROTTLE Price: $45.20 |
| 9 |
95-1579 |
NUT-LOCK Price: $1.05 |
| 10 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 11 |
66-2920 |
WASHER-FRICTION Price: $2.58 |
| 12 |
93-5373 |
LEVER-THROTTLE Price: $43.26 |
| 13 |
192872 |
Shaft Assembly, Mandrel Price: Call Us |
| 13 |
33024-00 |
NUT-LOCK, NI Price: $0.75 |
| 14 |
187281 |
Housing, Mandrel Price: Call Us |
| 14 |
29-9550 |
CLAMP-CABLE Price: $16.44 |
| 15 |
110485X |
Bearing, Ball, Mandrel Price: Call Us |
| 15 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 16 |
174493 |
Stripper, Mower Deck Price: Call Us |
| 16 |
3290-329 |
SCREW-PPH Price: $0.22 |
| 17 |
111332 |
SWITCH Price: $10.99 |
| 18 |
115-5357-03 |
BRACKET-JOYSTICK This part replaces 93-5991-03. Price: $35.61 |
| 19 |
196539 |
Bolt, Shoulder Price: Call Us |
| 19 |
3290-354 |
NUT-SPEED Price: $9.99 |
| 20 |
159770 |
Baffle, Vortex Price: Call Us |
| 20 |
33023-00 |
NUT-LOCK Price: $0.25 |
| 21 |
73680500 |
Nut, Crownlock 5/16-18 unc Price: Call Us |
| 21 |
93-5547 |
BUSHING-NYLON Price: $6.15 |
| 22 |
93-5512 |
SPACER Price: $3.80 |
| 23 |
192557 |
Bracket, Deflector Price: Call Us |
| 23 |
93-5515-03 |
LEVER ASM Price: $177.00 |
| 24 |
105-8289 |
SPRING-TORSION This part replaces 93-5509. Price: $15.05 |
| 24 |
105304X |
Cap, Sleeve Price: Call Us |
| 25 |
197026 |
Spring, Torsion, Deflector Price: Call Us |
| 25 |
33104-040 |
SCREW-HHF Price: $1.36 |
| 26 |
110452X |
Nut, Push Price: Call Us |
| 26 |
93-5961 |
BOOT-LEVER Price: $56.35 |
| 27 |
193108X428 |
Shield, Deflector Price: Call Us |
| 27 |
233-37 |
KNOB Price: $31.99 |
| 28 |
93-5270 |
SWITCH-PTO Price: $201.01 |
| 29 |
131491 |
Rod, Hinge Price: Call Us |
| 29 |
33103-016 |
SCREW-HHF Price: $5.18 |
| 30 |
173984 |
Screw Thdrol Rolling Wsh Hd Price: Call Us |
| 30 |
27-2360 |
SWITCH Price: $46.56 |
| 31 |
187690 |
Washer, Spacer Price: Call Us |
| 31 |
93-5476 |
SWITCH-CARLING Price: $85.47 |
| 32 |
195945 |
Pulley, Mandrel Price: Call Us |
| 32 |
62-7770 |
KEY-IGNITION Price: $4.39 |
| 33 |
233-39 |
KNOB-CONTROL Price: $16.12 |
| 33 |
400234 |
Nut, Toplock, Flanged Price: Call Us |
| 34 |
72110612 |
Bolt Carr Sh. 3/8-16 x 1-1/2 Gr. 5 Price: Call Us |
| 34 |
93-5481 |
CLUSTER-LIGHT, WARNING Price: $112.98 |
| 35 |
93-5478 |
CLUSTER-WARNING LIGHT Price: $162.98 |
| 36 |
196106 |
Pulley, Idler, Flat Price: Call Us |
| 36 |
43-6420 |
BEZEL Price: $57.54 |
| 37 |
19131316 |
Washer Price: Call Us |
| 37 |
33003-00 |
NUT-HF Price: $0.25 |
| 38 |
104-0130 |
HARNESS-WIRE Price: $1,054.14 |
| 38 |
199189 |
Keeper Belt LH Mandrel Price: Call Us |
| 39 |
104-0129 |
HARNESS-WIRE Price: $1,020.00 |
| 40 |
73900600 |
Nut, Lock Flg. 3/8-16 unc Price: Call Us |
| 42 |
198410 |
Spring Torsion Brake Price: Call Us |
| 43 |
197256 |
Spring Torsion Retainer Price: Call Us |
| 46 |
137729 |
Screw Thd Roll 1/4-20 x 5/8 Price: Call Us |
| 47 |
197250 |
Bracket Clutch Cable Price: Call Us |
| 54 |
178515 |
Washer, Hardened Price: Call Us |
| 55 |
197249 |
Arm, Idler Price: Call Us |
| 56 |
199092 |
Spacer, Retainer Price: Call Us |
| 57 |
17000616 |
Screw 3/8-16 x 1 Price: Call Us |
| 59 |
141043 |
Guard, Tuv Idler Price: Call Us |
| 60 |
197402 |
Arm Brake Mower Price: Call Us |
| 62 |
72110616 |
Bolt Rd Hd Sq Nk 3/8-16 unc x 2 Price: Call Us |
| 63 |
199478 |
Arm Brake Mower Price: Call Us |
| 64 |
199918 |
Link Brake Asm Price: Call Us |
| 65 |
199092 |
Spacer Retainer Price: Call Us |
| 67 |
198398X428 |
Handle Clutch Cable Price: Call Us |
| 68 |
197253 |
V-Belt Price: Call Us |
| 69 |
72140505 |
Bolt Price: Call Us |
| 70 |
199779 |
Clutch Asm Manual Price: Call Us |
| 86 |
197798 |
Pin Attachment Cable Price: Call Us |
| 87 |
197802 |
Switch Interlock Clutch Cable Price: Call Us |
| 88 |
193232 |
Screw 10-24 x 5/8 Price: Call Us |
| 113 |
17000510 |
Bolt 5/16-18 Price: Call Us |
| 115 |
72110505 |
Bolt Carr. 5/16-18 x 5/8 Price: Call Us |
| 116 |
4898H |
Bolt, Shoulder Price: Call Us |
| 117 |
188606 |
Wheel, Gauge Price: Call Us |
| 118 |
73930600 |
Nut, Crownlock 3/8-1 Price: Call Us |
| 119 |
19121414 |
Washer 13/32 x 7/8 x 14 Ga. Price: Call Us |
| 122 |
197258 |
Keeper Belt Engine LH Price: Call Us |
| 123 |
197259 |
Keeper Belt Engine RH Price: Call Us |
| 144 |
199204 |
Keeper Belt Price: Call Us |
| 145 |
177968 |
Pulley Idler Price: Call Us |
| 147 |
401971 |
Spring Return Price: Call Us |
| 149 |
165898 |
Retainer Spring Price: Call Us |
| 151 |
199778 |
Bracket Clutch Price: Call Us |
| 152 |
197257 |
Manual Clutch Cable Price: Call Us |
| 186 |
197799 |
Arm Actuator Price: Call Us |
| 187 |
400426 |
Lever Control Price: Call Us |
| 188 |
195161 |
Stud Fastener Price: Call Us |
| 189 |
73900500 |
Nut Lock Hex Flange Price: Call Us |
| 192 |
197260 |
Bracket Brake Stand LH Price: Call Us |
| 193 |
197801 |
Spring Plunger Activator Price: Call Us |
| 194 |
197797 |
Bearing Control Lever Clutch Price: Call Us |
| 195 |
17000612 |
Screw Hex Wsh Thdr 3/8-16 x 3/4 Price: Call Us |
