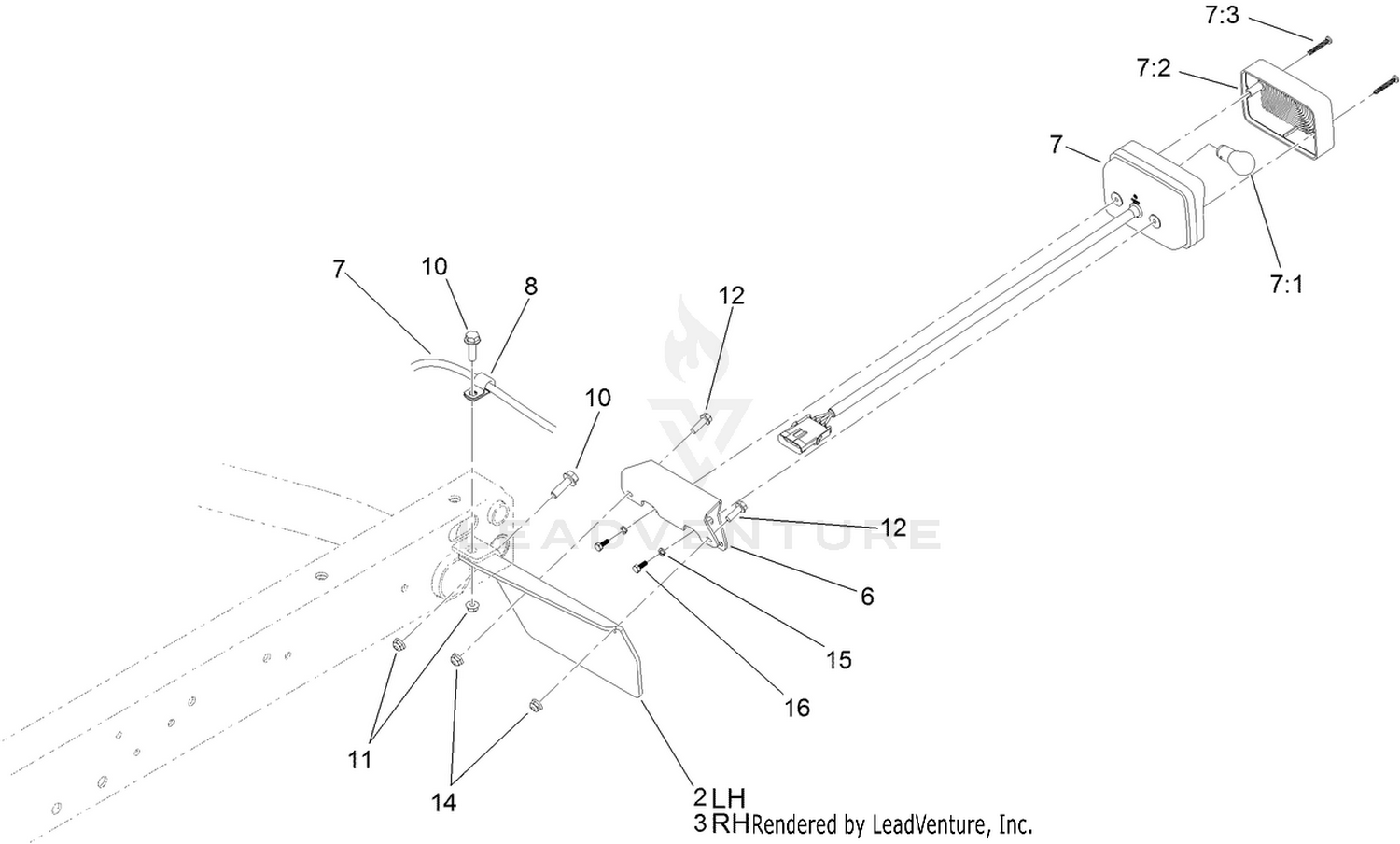

Tail Light and Fender Assembly
Parts (10)
| Ref | Part Number | Description |
|---|---|---|
| 2 | 93-8943-03 | BRACKET-FENDER, REAR (LH) Price: $26.62 |
| 3 | 93-8944-03 | BRACKET-FENDER, REAR (RH) Price: $26.62 |
| 6 | 121-6269-03 | BRACKET-LIGHT, TAIL Price: $18.84 |
| 7 | 120-4820 | LIGHT-TAIL, BRAKE Price: $140.06 |
| 8 | 2412-93 | CLAMP-R Price: $1.02 |
| 10 | 3234-17 | SCREW-HHF Price: $0.72 |
| 11 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 12 | 32105-15 | SCREW-HWH Price: $1.79 |
| 14 | 104-7201 | NUT-HF Price: $0.69 |
| 15 | 43-5920 | WASHER-LOCK, SPRING Price: $0.25 |
