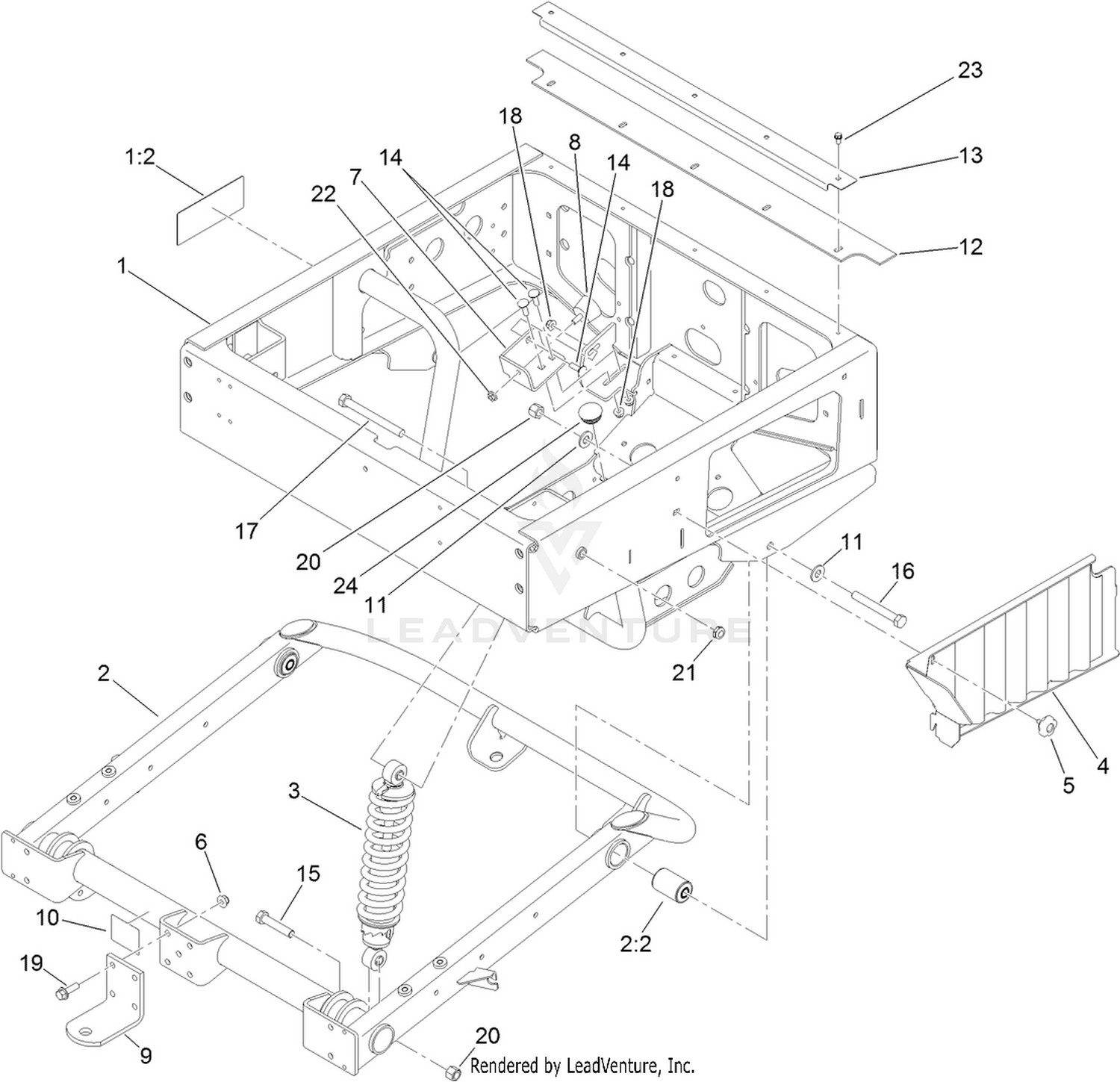

| Ref | Part Number | Description |
|---|
| 1 |
120-5052 |
REAR FRAME ASM Price: $2,244.41 |
| 2 |
140-2596 |
SWING ARM ASM Price: $1,335.19 |
| 3 |
133-0553 |
SHOCK AND SPRING ASM Price: $129.15 |
| 4 |
119-9597-03 |
SCREEN-RADIATOR Price: $168.84 |
| 5 |
105-1406 |
KNOB Price: $13.99 |
| 6 |
104-8301 |
NUT-HF, NI Price: $1.09 |
| 7 |
119-9743-0P |
MOUNT-BUMPER This part replaces 119-9743-03. Price: $26.24 |
| 8 |
68-3270 |
BUMPER-RUBBER Price: $37.99 |
| 9 |
99-7654-03 |
HITCH-DUTY, LIGHT Price: $37.35 |
| 10 |
136-1164 |
DECAL-LOAD, TOWING Price: $3.25 |
| 11 |
87-7270 |
WASHER-THRUST Price: $0.89 |
| 12 |
119-9728 |
SEAL-FRAME, REAR Price: $25.45 |
| 13 |
119-9729-0P |
REINFORCEMENT-SEAL This part replaces 119-9729-03. Price: $30.93 |
| 14 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 15 |
325-10 |
SCREW-HH Price: $1.82 |
| 16 |
325-17 |
SCREW-HH Price: $2.90 |
| 17 |
325-19 |
SCREW-HH Price: $2.57 |
| 18 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 19 |
3234-24 |
SCREW-HHF Price: $3.19 |
| 20 |
3296-23 |
NUT-LOCK, NI Price: $0.52 |
| 21 |
3296-45 |
NUT-HEX Price: $3.79 |
| 22 |
32128-20 |
NUT-HF Price: $0.99 |
| 23 |
32144-4 |
SCREW-HWH Price: $1.29 |
