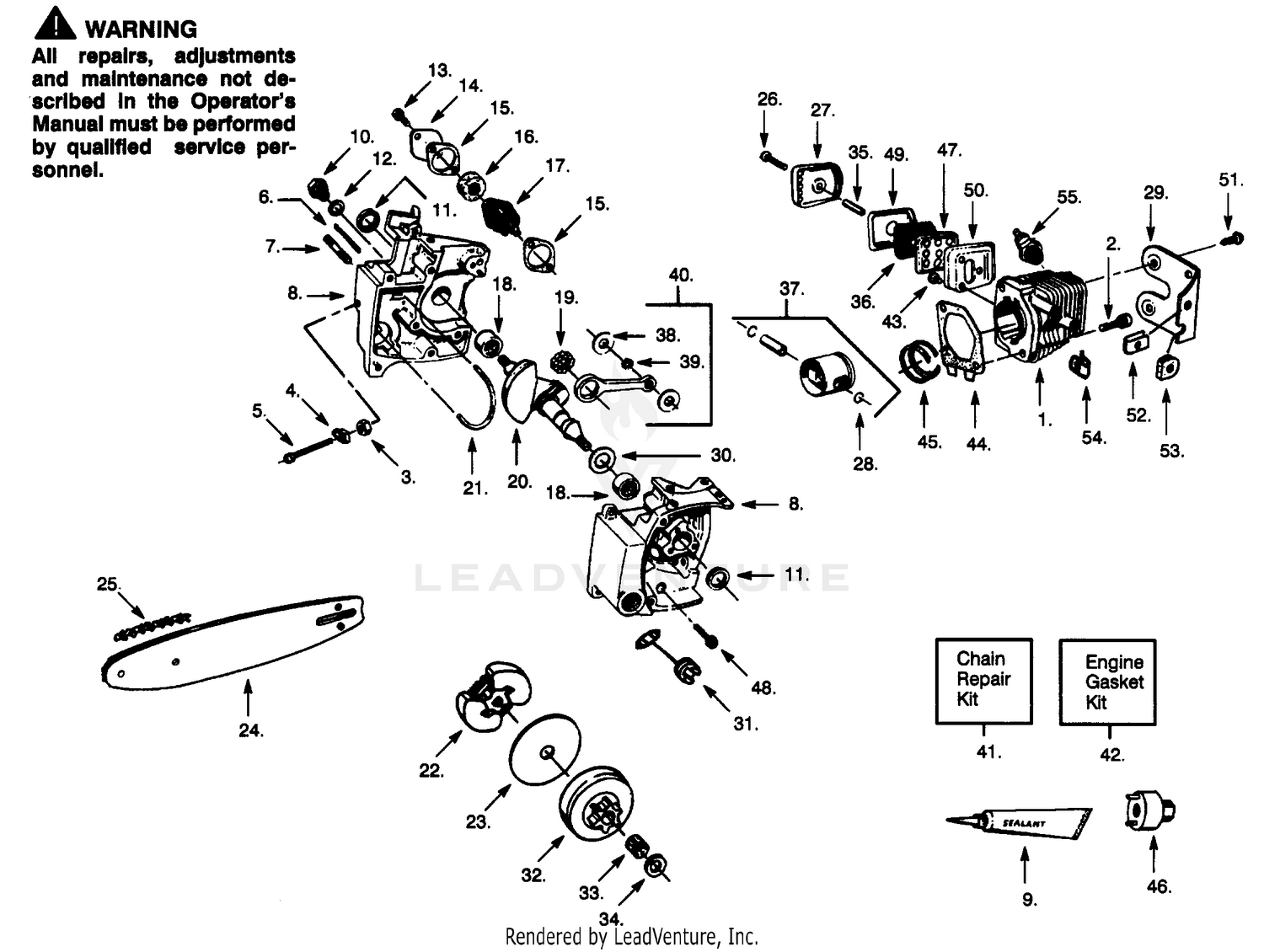

| Ref | Part Number | Description |
|---|
| 1 |
3290-322 |
PIN-HAIR Price: $1.09 |
| 1 |
530012312 |
Cylinder Price: $64.99 |
| 2 |
283-82 |
PIN-CLEVIS This part replaces 283-23. Price: $3.94 |
| 2 |
530015239 |
Screw Price: $1.99 |
| 3 |
39-1470-01 |
HANGER-BELLY SHIELD This part replaces 39-1470. Price: $34.44 |
| 3 |
530015135 |
Locknut Price: $1.35 |
| 4 |
323-7 |
SCREW-HH Price: $0.65 |
| 4 |
530023492 |
BAR ADJUST PIN Price: $3.99 |
| 5 |
39-1410-01 |
SHIELD BELLY ASM This part replaces 39-1410. Price: $705.69 |
| 5 |
530016115 |
Screw Price: $1.99 |
| 6 |
39-1440-01 |
BELLY SHIELD HOOK ASM This part replaces 39-1440. Price: $72.41 |
| 6 |
530036450 |
Oil Tank Vent Pin Price: $0.99 |
| 7 |
530015719 |
Bar Mounting Stud Price: $1.99 |
| 9 |
530030054 |
Crankcase Sealant Price: $17.99 |
| 11 |
530019059 |
Crankshaft Seal Price: $4.99 |
| 12 |
530019089 |
Check Valve Gasket Price: $3.99 |
| 13 |
530015476 |
Screw Price: $1.99 |
| 14 |
530023802 |
Cover Price: $1.99 |
| 15 |
530019091 |
Metering Body Gasket Price: $1.99 |
| 16 |
530023801 |
Oil Filter (Foam) Price: $1.99 |
| 17 |
530010195 |
Oil Pump Ass'y. Price: Call Us |
| 18 |
530032029 |
Crankshaft Bearing Price: $7.99 |
| 20 |
530022172 |
Crankshaft Price: $44.99 |
| 21 |
530069216 |
Kit-Fuel Line This part replaces 530021026. Price: $3.99 |
| 22 |
530069193 |
Clutch Ass'y. Kit Price: Call Us |
| 23 |
530069197 |
Clutch Washer Kit (Outside) Price: $7.99 |
| 24 |
952044369 |
Guide Bar-16" Price: $17.99 |
| 25 |
581562201 |
ACCY P/PP CHN 16" 56DL 3/8 This part replaces 952051211. Price: $19.99 |
| 26 |
530016026 |
Screw Price: $1.99 |
| 27 |
530036969 |
Muffler Cover Price: $2.99 |
| 28 |
530023843 |
Piston Pin Retainer Price: $1.99 |
| 29 |
530016024 |
Rear Mount Bracket Price: $1.99 |
| 30 |
530023887 |
Thrust Washer Price: $0.99 |
| 32 |
530069166 |
Clutch Drum Price: $11.99 |
| 33 |
530032079 |
Clutch Bearing Price: $5.99 |
| 34 |
530023519 |
Clutch Spacer-Inside Price: $1.99 |
| 35 |
530016025 |
Muffler Spacer Price: $1.99 |
| 36 |
530036971 |
Muffler Screen Price: $0.56 |
| 38 |
530015486 |
Washer Price: $2.99 |
| 41 |
530-052073 |
Chain Repair Kit Price: Call Us |
| 42 |
530069401 |
Engine Gasket Kit Price: $11.99 |
| 43 |
530001666 |
Screw Price: $0.99 |
| 44 |
530069401 |
Engine Gasket Kit This part replaces 530019195. Price: $11.99 |
| 45 |
530027482 |
Piston Ring Price: $4.99 |
| 46 |
530031112 |
Clutch Tool Price: $9.99 |
| 47 |
530037083 |
Muffler Baffle-Inner Price: $1.99 |
| 48 |
530015986 |
Screw Price: $0.99 |
| 49 |
530036970 |
Muffler Baffle-Outer Price: $1.99 |
| 50 |
530036968 |
Muffler Body Price: $2.99 |
| 51 |
530016017 |
Screw Price: $1.99 |
| 52 |
530016029 |
Speed Nut Price: $0.99 |
| 53 |
530037063 |
Grommet Price: $0.99 |
| 54 |
530037354 |
Wire Clip Price: $0.99 |
| 55 |
503235111 |
BPMR7A NGK SPARK PLUG This part replaces 952030150. Price: $3.99 |
