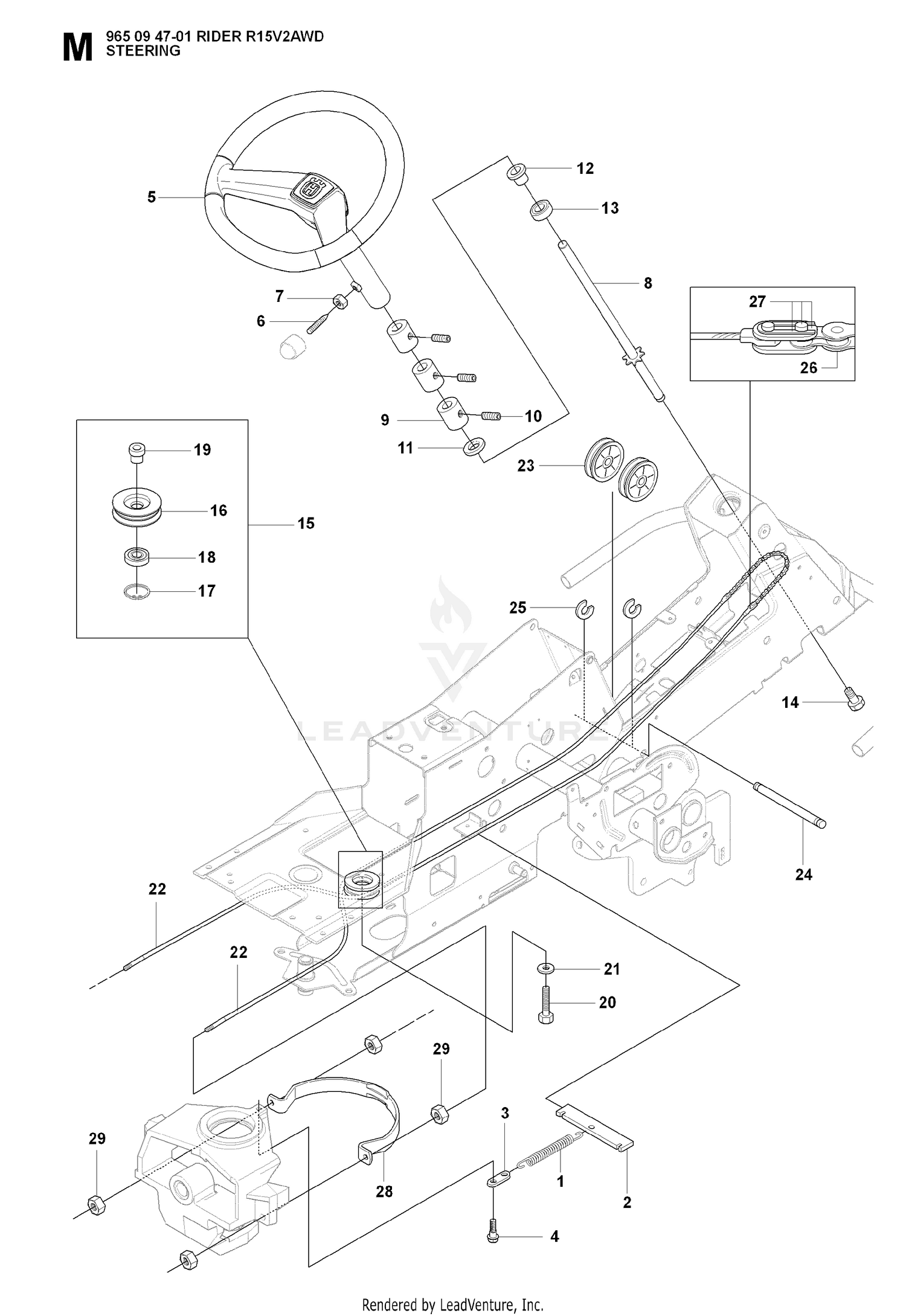

STEERING
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 506671901 | SPRING Price: $22.99 |
| 2 | 590735401 | Brackets This part replaces 506576301. Price: $12.99 |
| 3 | 506670801 | CONNECTOR Price: $6.99 |
| 4 | 506597401 | BOLT Price: $5.99 |
| 5 | 544375202 | STEERING WHEEL Price: $54.99 |
| 6 | 728745505 | SCREW Price: $3.99 |
| 7 | 731231801 | NUT Price: $3.99 |
| 9 | 587080901 | DRIVER STEERING WHEEL This part replaces 506863401. Price: $7.99 |
| 10 | 728844305 | Screw Price: $1.99 |
| 10 | 98-9705 | STARTER ASM Price: $663.57 |
| 11 | 506863601 | WASHER Price: $7.99 |
| 12 | 506887801 | SPACER Price: $7.99 |
| 13 | 738210404 | BALL BEARING 6004-2RS1 Price: $9.99 |
| 14 | 506570104 | BOLT Price: $4.99 |
| 15 | 506500903 | RP PULLEY Price: $101.22 |
| 16 | 535424101 | ROLLER Price: $89.99 |
| 17 | 735314010 | CIRCLIP SGH 47 Price: $4.99 |
| 18 | 738220419 | BALL-BEARING 6204-2RS Price: $14.99 |
| 19 | 506500802 | BUSHING Price: $7.46 |
| 20 | 104-8608 | YOKE ASM Price: $437.88 |
| 20 | 506675402 | BOLT Price: $5.99 |
| 21 | 734117441 | WASHER Price: $3.99 |
| 22 | 501604804 | WIRE ASSY This part replaces 506589104. Price: $17.99 |
| 23 | 506522401 | ROLLER Price: $9.99 |
| 24 | 506539402 | SHAFT Price: $7.99 |
| 25 | 735311420 | RETAINING RING Price: $2.99 |
| 25 | 99-8375 | COVER Price: $24.86 |
| 26 | 506554601 | STEERING CHAIN Price: $17.99 |
| 27 | 506554701 | LINK Price: $4.99 |
| 28 | 544427301 | WIRE GUIDE Price: $29.99 |
| 29 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 30 | 98-7742 | ARMATURE ASM Price: $819.15 |
| 40 | 98-7744 | BEARING Price: $35.64 |
| 50 | 98-7743 | BEARING Price: $37.48 |
| 60 | 99-8373 | CLUTCH-RUNNING, OVER Price: $691.80 |
| 70 | 99-8374 | FRAME-END, DRIVE Price: $73.04 |
| 80 | 105-3746 | MAGNETIC SWITCH ASM Price: $689.29 |
| 85 | 105-2886 | COVER ASM Price: $58.11 |
| 90 | 98-7748 | FRAME-END Price: $82.65 |
| 100 | 98-7749 | BRUSH HOLDER ASM Price: $91.05 |
| 110 | 98-7750 | SPRING-BRUSH Price: $2.38 |
| 120 | 98-7751 | GEAR Price: $43.51 |
| 130 | 98-7752 | RETAINER Price: $4.35 |
| 140 | 98-7753 | ROLLER Price: $1.00 |
| 150 | 98-7755 | BALL Price: $0.42 |
| 160 | 98-7754 | SPRING Price: $4.70 |
| 170 | 98-7756 | BOLT Price: $2.64 |
| 180 | 98-7757 | O-RING Price: $24.98 |
| 190 | 98-7758 | BOLT ASM Price: $4.90 |
| 200 | 98-7759 | PIPE-DRAIN Price: $28.84 |
| 210 | 99-8371 | NUT-HEX Price: $3.75 |
| 215 | 99-8376 | NUT-HEX Price: $7.28 |
| 220 | 100-9240 | BOLT Price: $7.23 |
| 230 | 250-4 | TIE-CABLE This part replaces 98-9712. Price: $0.61 |
