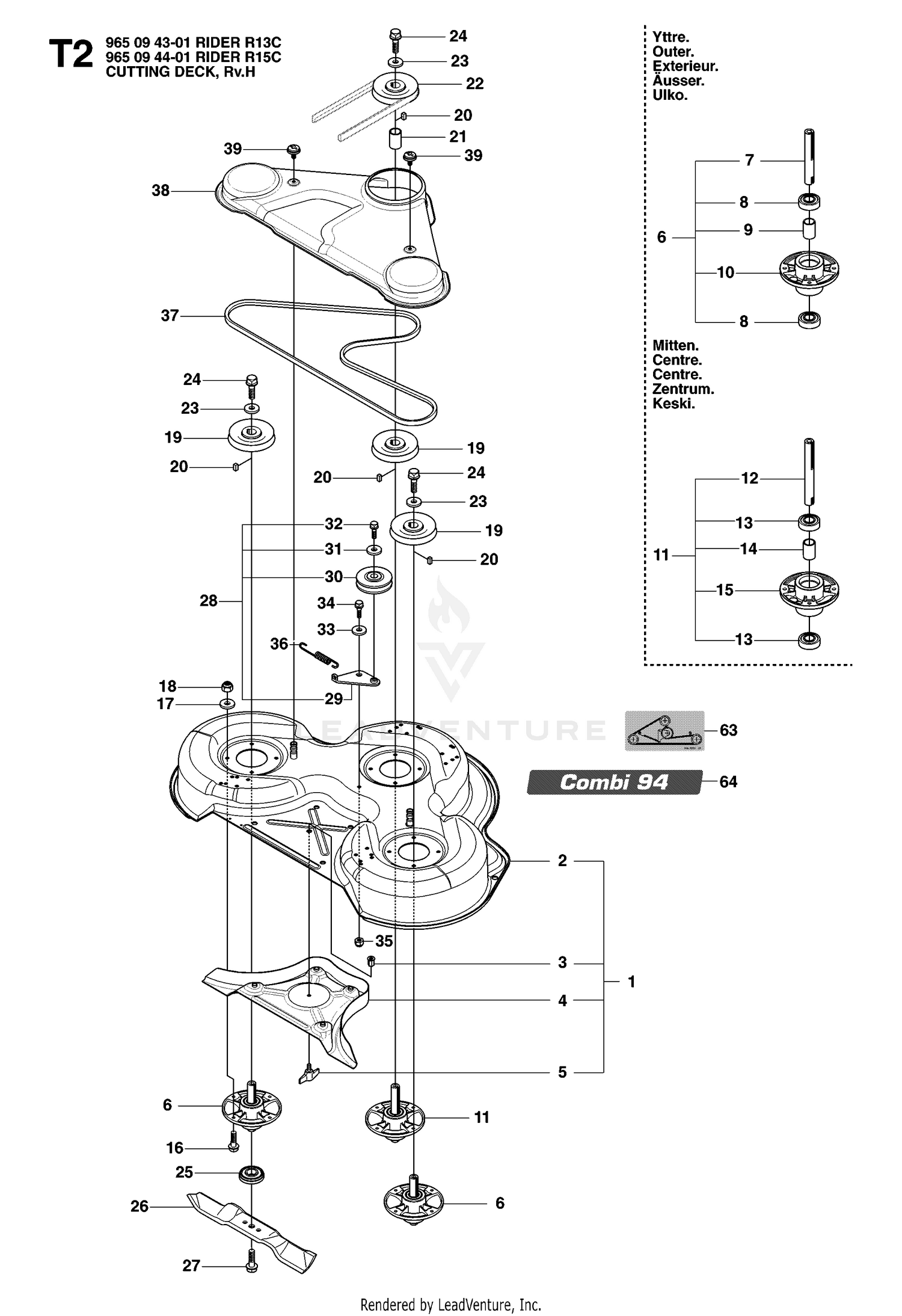

MOWER DECK / CUTTING DECK
Parts (51)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 544065704 | NEEDS DESCRIPTION Price: Call Us |
| 2 | 544065506 | NEEDS DESCRIPTION Price: Call Us |
| 3 | 506916201 | NUT Price: $4.99 |
| 4 | 544065801 | PLUG C93 & C94 Price: $44.99 |
| 5 | 544066101 | KNOB Price: $4.99 |
| 6 | 576384102 | BLADE HOUSING ASSY This part replaces 544065901. Price: $79.99 |
| 7 | 544067902 | SHAFT Price: $37.99 |
| 8 | 738230434 | BEARING Price: $17.99 |
| 9 | 544068001 | SPACER Price: $11.99 |
| 10 | 105-3786 | SPRING-START Price: $3.91 |
| 10 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 11 | 544065903 | NEEDS DESCRIPTION Price: Call Us |
| 12 | 544067901 | SHAFT Price: $39.99 |
| 13 | 738230434 | BEARING Price: $17.99 |
| 14 | 544068001 | SPACER Price: $11.99 |
| 15 | 576384201 | BEARING HOUSING This part replaces 544067801. Price: $29.99 |
| 16 | 535423801 | BOLT Price: $4.99 |
| 18 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 19 | 506922101 | PULLEY Price: $29.99 |
| 20 | 107-7839 | SPRING-GOVERNOR Price: $7.68 |
| 20 | 506533501 | KEY Price: $3.99 |
| 21 | 544068003 | SPACING SLEEVE Price: $12.99 |
| 22 | 506778601 | PULLEY Price: $49.99 |
| 23 | 734117441 | WASHER Price: $3.99 |
| 24 | 506675402 | BOLT Price: $5.99 |
| 25 | 544064901 | BLADE BRACKET Price: $7.99 |
| 26 | 579652510 | BLADE Price: $22.99 |
| 27 | 506675402 | BOLT Price: $5.99 |
| 28 | 506797301 | Price: Call Us |
| 29 | 506797101 | BRACKET Price: $22.99 |
| 30 | 107-7840 | FORK LEVER ASM Price: $173.59 |
| 30 | 586964001 | Belt Tensioners This part replaces 506793201. Price: $34.99 |
| 31 | 734116441 | SPACER Price: $3.99 |
| 32 | 506558302 | BOLT Price: $3.99 |
| 33 | 584288604 | Washers This part replaces 506918702. Price: $3.99 |
| 34 | 725245171 | SCREW Price: $2.08 |
| 35 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 36 | 506533101 | SPRING Price: $9.99 |
| 37 | 589530701 | BELT This part replaces 544068101. Price: $49.99 |
| 38 | 544066301 | BELT COVER C93 & C94 GREY Price: $44.99 |
| 39 | 544400501 | SCREW Price: $3.99 |
| 40 | 107-9084 | LEVER-FORK Price: $101.37 |
| 50 | 107-9085 | SHAFT-LEVER, FORK Price: $24.90 |
| 60 | 107-9086 | SHAFT-LEVER, FORK Price: $24.90 |
| 63 | 506789701 | Decal Price: $21.55 |
| 64 | 544238101 | Price: Call Us |
| 70 | 98-9570 | BEARING-MINIATURIZE Price: $13.60 |
| 80 | 115-4122 | COVER-SHAFT, FORK LEVER Price: $6.97 |
| 90 | 98-9682 | GASKET Price: $0.95 |
| 100 | 98-9350 | BOLT Price: $0.98 |
| 110 | 98-9567 | COLLAR Price: $3.78 |
