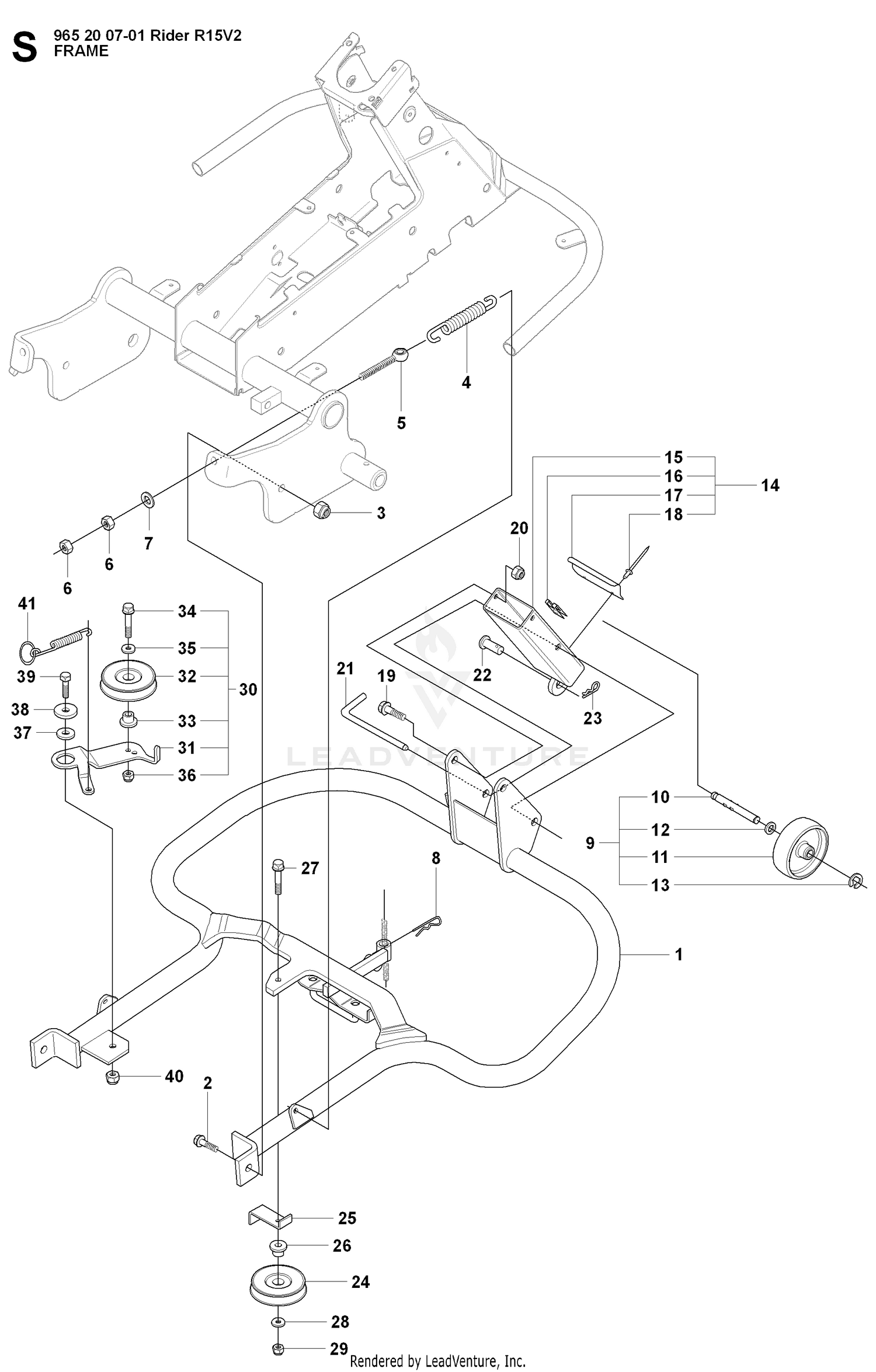

FRAME
Parts (75)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 104-8301 | NUT-HF, NI Price: $1.09 |
| 1 | 535471001 | FRAME Price: $379.99 |
| 2 | 110-0906-01 | SUPPORT-FILTER, OIL Price: $44.96 |
| 2 | 506895801 | BOLT Price: $6.99 |
| 3 | 108-1710 | TUBE ASM Price: $85.53 |
| 3 | 732252201 | Nut Price: $2.65 |
| 4 | 108-1711 | TUBE-HYD Price: $111.99 |
| 4 | 506837601 | SPRING Price: $27.99 |
| 5 | 120-3764 | TUBE-HYD Price: $119.12 |
| 5 | 506837701 | SCREW Price: $8.99 |
| 6 | 120-3765 | TUBE-HYD Price: $117.22 |
| 6 | 731232001 | Nut This part replaces 731232051. Price: $3.99 |
| 7 | 121-5601 | TUBE-HYD Price: $98.35 |
| 7 | 596134901 | GSPH This part replaces 734117201. Price: $2.99 |
| 8 | 3234-33 | SCREW-HHF Price: $0.79 |
| 8 | 506966601 | RETAINER Price: $3.99 |
| 9 | 3230-5 | BOLT-CAR Price: $0.54 |
| 9 | 506981401 | WHEEL ASSY Price: $11.99 |
| 10 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 10 | 506980001 | SHAFT Price: $17.99 |
| 11 | 506979601 | WHEEL Price: $19.99 |
| 11 | 56-7973 | CLAMP-TUBE Price: $15.56 |
| 12 | 734117771 | BUSHING Price: $3.99 |
| 12 | 86-3010 | FILTER-OIL Price: $15.80 |
| 13 | 117-5820 | HEAD-FILTER Price: $95.88 |
| 13 | 735311520 | RETAINING RING Price: $2.99 |
| 14 | 100-4240 | FITTING-STR Price: $14.09 |
| 14 | 506997801 | LINK ASSY Price: $39.99 |
| 15 | 340-70 | NUT-LOCK Price: $2.10 |
| 15 | 506997901 | LINK Price: $84.99 |
| 16 | 3231-27 | SCREW-CARR Price: $0.54 |
| 17 | 133-2988 | TUBE ASM Price: $72.62 |
| 17 | 506982801 | BRACKET Price: $6.99 |
| 18 | 133-2989 | TUBE ASM Price: $72.62 |
| 18 | 722783902 | Rivet Price: $1.99 |
| 19 | 340-154 | UNION-BULKHEAD Price: $44.48 |
| 19 | 506597401 | BOLT Price: $5.99 |
| 20 | 110-0928 | HOSE-HYD Price: $87.44 |
| 20 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 21 | 3272-12 | PIN-COTTER Price: $0.25 |
| 21 | 506974601 | PIN Price: $19.99 |
| 22 | 110-9035 | HYD CYLINDER ASM Price: $662.44 |
| 22 | 721861701 | BOLT Price: $8.99 |
| 23 | 106-6895-03 | BALL JOINT ASM Price: $258.08 |
| 23 | 721680251 | R-CLIP Price: $4.99 |
| 24 | 106-6774 | JOINT-BALL Price: $79.04 |
| 24 | 506974801 | PULLEY Price: $44.99 |
| 25 | 32151-104 | RING-RETAINING, EXTERNAL Price: $4.85 |
| 25 | 506975001 | Guide Price: $9.25 |
| 26 | 3220-6 | NUT-JAM Price: $1.25 |
| 26 | 506826801 | BUSHING Price: $14.99 |
| 27 | 69-8980 | WASHER Price: $0.58 |
| 27 | 725246151 | BOLT Price: $4.99 |
| 28 | 340-132 | FITTING-ELBOW, 90 DEG Price: $24.64 |
| 28 | 734116441 | SPACER Price: $3.99 |
| 29 | 110-0973 | HOSE-HYD Price: $84.41 |
| 29 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 30 | 302-40 | FITTING-GREASE, 90 DEG Price: $1.70 |
| 30 | 506976201 | BELT TENSIONER ASSY Price: $74.99 |
| 31 | 3290-378 | TIE-CABLE Price: $0.79 |
| 31 | 506976301 | ARM Price: $37.99 |
| 32 | 506532701 | PULLEY Price: $39.99 |
| 32 | 59-7410 | FITTING-DIAGNOSTIC Price: $36.39 |
| 33 | 354-79 | CAP-DUST Price: $7.81 |
| 33 | 506826801 | BUSHING Price: $14.99 |
| 34 | 120-3781-0P | BRKT-BULHEAD STEER This part replaces 120-3781-01. Price: $13.35 |
| 34 | 725245751 | SCREW Price: $4.99 |
| 35 | 32104-32 | SCREW-HWH Price: $1.99 |
| 35 | 734116441 | SPACER Price: $3.99 |
| 36 | 732211801 | LOCKNUT M8 Price: $3.99 |
| 37 | 506597501 | WASHER Price: $6.99 |
| 38 | 506982501 | Washer Price: $6.01 |
| 39 | 725249571 | SCREW Price: $6.99 |
| 40 | 732212001 | NUT This part replaces 732212051. Price: $3.99 |
| 41 | 594020601 | Springs This part replaces 506976801. Price: $14.99 |
