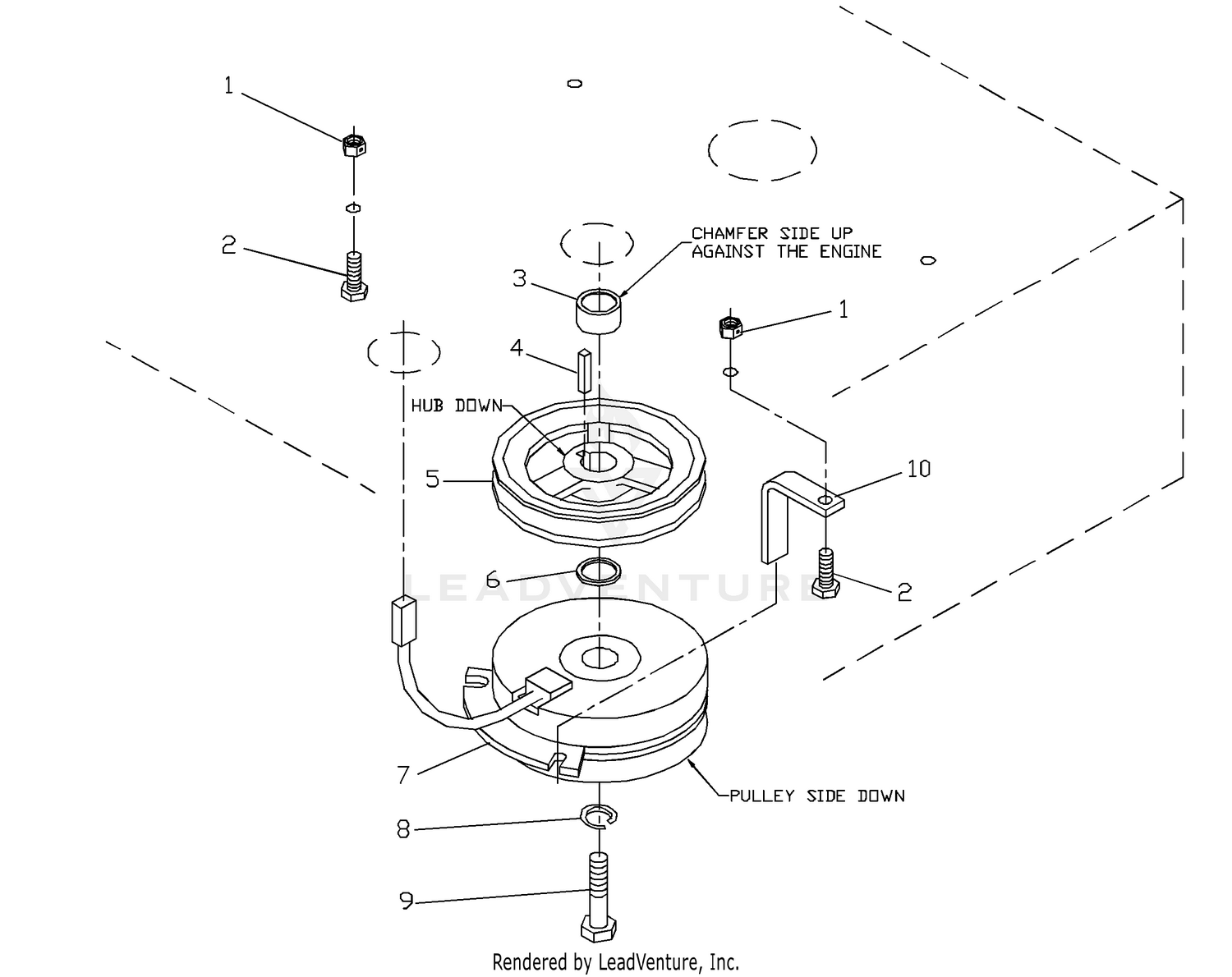

| Ref | Part Number | Description |
|---|
| 1 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 1 |
596580701 |
Nuts This part replaces 539990184. Price: $2.99 |
| 2 |
3296-20 |
NUT-LOCK, NI Price: $0.40 |
| 2 |
539990627 |
HCS 5/16C X 1 1/4 Price: $3.99 |
| 3 |
108-6557 |
STEER VALVE AND COLUMN ASM This part replaces 92-7308. Price: $1,800.82 |
| 3 |
539101720 |
SPACER Price: $12.99 |
| 4 |
539101995 |
KEY 1/4 SQ X 1 1/8 Price: $2.99 |
| 4 |
HY3225 |
DISCONTINUED This part replaces 322-5. Price: Call Us |
| 5 |
3220-6 |
NUT-JAM Price: $1.25 |
| 5 |
539103259 |
PULLEY Price: $51.99 |
| 6 |
539102050 |
BUSHING, 10GA MACHINERY Price: $2.99 |
| 6 |
75-0560 |
STEERING WHEEL ASM Price: $204.13 |
| 7 |
539103245 |
CLUTCH, ELECTRIC Price: $279.99 |
| 7 |
68-5140 |
CAP-WHEEL, STEERING Price: $15.13 |
| 8 |
233-17 |
KNOB Price: $10.58 |
| 8 |
596238901 |
Washers This part replaces 539990247. Price: $2.99 |
| 9 |
539991120 |
BOLT 7/16F X 2 1/2 Price: $5.99 |
| 9 |
63-7910 |
ROD-BRAKE, PARKING Price: $40.67 |
| 10 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 10 |
874780528 |
SCREW This part replaces 539990669. Price: $4.99 |
| 12 |
95-1821 |
SPRING-COMPRESSION This part replaces 3-3251. Price: $6.71 |
| 13 |
3272-5 |
PIN-COTTER Price: $1.39 |
| 14 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 15 |
63-7900-03 |
RACK This part replaces 63-7900. Price: $144.55 |
| 16 |
108-1377 |
BRAKE CABLE ASM, RH This part replaces 63-7730. Price: $157.02 |
| 17 |
283-58 |
PIN-CLEVIS Price: $3.87 |
| 18 |
3272-10 |
PIN-COTTER Price: $0.25 |
| 19 |
63-6750 |
LINK-CABLE, BRAKE Price: $6.39 |
| 20 |
3-7243 |
SPRING-EXTENSION Price: $11.23 |
| 21 |
321-3 |
SCREW-HH Price: $0.28 |
| 22 |
63-6210-03 |
PIN-BRAKE This part replaces 63-6210. Price: $66.77 |
| 23 |
63-7880 |
PIN-LATCH, BRAKE Price: $6.04 |
| 24 |
32121-50 |
PIN-SPRING Price: $1.21 |
| 25 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 26 |
63-6180 |
PEDAL-BRAKE, LH Price: $209.48 |
| 27 |
256-42 |
BUSHING Price: $7.03 |
| 28 |
7-3900 |
PAD-BRAKE Price: $27.35 |
| 29 |
63-6190 |
PEDAL-BRAKE, RH Price: $209.48 |
| 30 |
302-5 |
FITTING-GREASE Price: $0.59 |
| 31 |
66-8140 |
HOSE-HYDRAULIC Price: $55.60 |
| 32 |
66-8630 |
TUBE-HYDRAULIC Price: $104.22 |
| 33 |
66-8620 |
TUBE-HYDRAULIC Price: $125.76 |
| 34 |
2412-36 |
CLAMP-HOSE Price: $1.28 |
| 35 |
3256-22 |
WASHER-FLAT Price: $0.39 |
| 36 |
237-30 |
O-RING Price: $2.50 |
| 37 |
66-8170 |
HOSE ASM Price: $100.76 |
| 38 |
237-22 |
O-RING Price: $2.43 |
| 39 |
21-9260 |
COVER-DUST Price: $8.19 |
| 40 |
68-5370 |
DECAL Price: $6.21 |
| 41 |
32144-21 |
SCREW Price: $0.20 |
| 42 |
3256-23 |
WASHER-PLAIN Price: $0.28 |
| 43 |
84-7670 |
FOAM-COLUMN, SUPPORT Price: $7.53 |
| 44 |
84-7660 |
CLAMP-COLUMN Price: $7.87 |
| 45 |
3256-69 |
WASHER-FLAT Price: $0.62 |
