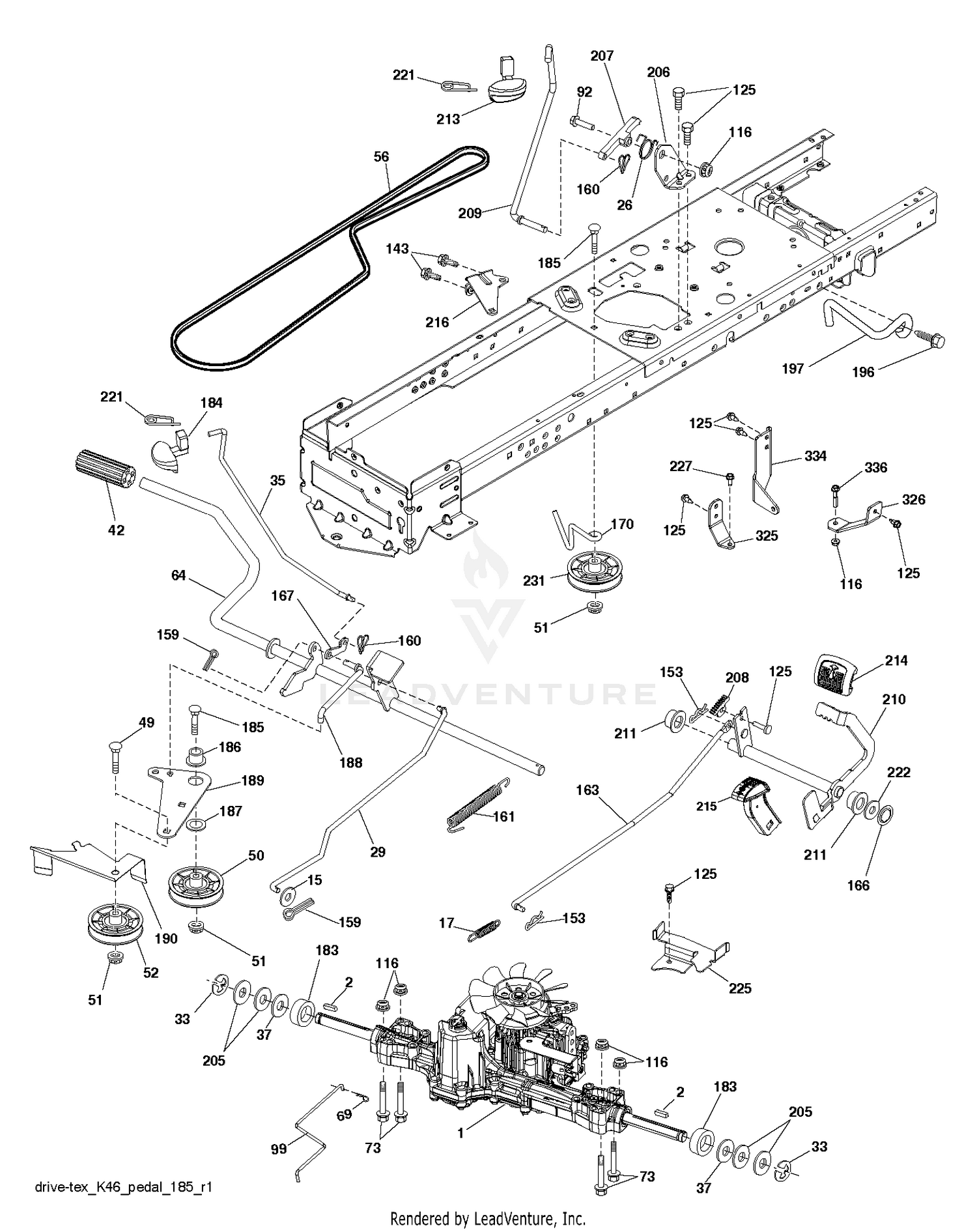

| Ref | Part Number | Description |
|---|
| 1 |
136-2941 |
KIT-SERVICE, PLANETARY ASM This part replaces 105-4500. Price: $3,119.29 |
| 2 |
237-166 |
O-RING Price: $10.46 |
| 2 |
532123583 |
SQUARE KEY Price: $3.99 |
| 3 |
100-3046 |
SHAFT-BRAKE, SPLINED Price: $192.79 |
| 4 |
100-3069 |
RH BRAKE ASM Price: $802.37 |
| 5 |
100-3070 |
LH BRAKE ASM Price: $802.37 |
| 6 |
33106-030 |
SCREW-HHF Price: $1.15 |
| 7 |
33106-090 |
SCREW-HHF Price: $2.78 |
| 8 |
93-7972 |
RING-RETAINING, INTERNAL Price: $0.25 |
| 9 |
136-2300 |
TIRE AND WHEEL ASM This part replaces 131-3335. Price: $523.68 |
| 10 |
139-2564 |
NUT-LUG This part replaces 242-50. Price: $0.99 |
| 11 |
93-6498 |
FENDER-REAR Price: $312.87 |
| 12 |
93-6528-03 |
STRAP-MOUNT, FENDER Price: $37.52 |
| 13 |
3234-5 |
SCREW-HHF Price: $0.42 |
| 14 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 15 |
596565301 |
WASHER PLAIN WASHER 3/8 X 0.08 This part replaces 819131316. Price: $2.99 |
| 15 |
94-7127 |
SPLASH GUARD ASM Price: $161.83 |
| 16 |
3230-2 |
BOLT-CARR Price: $0.47 |
| 17 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 17 |
532413678 |
SPRING.BRAKE.K46.GREEN Price: $6.99 |
| 18 |
132-5631 |
HYD MOTOR ASM Price: $2,248.91 |
| 19 |
137-4285 |
HYDRAULIC MOTOR ASM This part replaces 132-5630. Price: $2,746.75 |
| 20 |
93-7984 |
GASKET Price: $20.21 |
| 21 |
33116-120 |
SCREW-HH Price: $1.70 |
| 22 |
119-4854 |
FITTING-STR Price: $54.99 |
| 23 |
340-104 |
FITTING-HYD, TEE Price: $74.38 |
| 24 |
104-3795 |
FITTING-TEE Price: $142.37 |
| 25 |
340-91 |
FITTING-STR Price: $36.83 |
| 26 |
117-0674 |
TUBE-TRACTION Price: $175.24 |
| 26 |
532199679 |
SPRING.RETURN.CRUISE Price: $3.99 |
| 27 |
33096-00 |
WASHER-FLAT Price: $1.76 |
| 28 |
131-9634 |
HYDRAULIC HOSE ASM Price: $102.64 |
| 29 |
120-8563 |
HOSE ASM Price: $325.02 |
| 29 |
532403806 |
ROD.BRAKE.K46 Price: $17.99 |
| 30 |
120-8564 |
HOSE ASM Price: $412.35 |
| 33 |
812000001 |
E-RING LT Price: $3.99 |
| 35 |
590605902 |
ROD ROD.PARKINGBRAKE.GT.HUSQ/P This part replaces 590605901. Price: $7.99 |
| 37 |
532188967 |
WASHER.HARDENED Price: $3.99 |
| 42 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 49 |
596136201 |
Bolts This part replaces 872110614. Price: $3.99 |
| 50 |
532194327 |
IDLER.FLAT.910.OFFSET Price: $17.99 |
| 51 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 52 |
532194326 |
IDLER.V-GROOVE.910.OFFSET Price: $19.99 |
| 56 |
592855201 |
Belts This part replaces 532130969. Price: $27.99 |
| 64 |
532197865 |
SHAFT.ASM.PEDAL.BRK.CNTR Price: $44.99 |
| 69 |
583404901 |
HAIRPIN.SOFT.ZINC.059X1.125 This part replaces 532423303. Price: $2.99 |
| 73 |
596136501 |
Bolts This part replaces 874490540. Price: $3.99 |
| 92 |
595305701 |
Screws This part replaces 874760520. Price: $3.99 |
| 99 |
582404501 |
ARM.PIVOTING.TCRD.GEN2.5.BAGGE Price: $5.99 |
| 116 |
596135701 |
GSPW Nuts This part replaces 873900500. Price: $2.99 |
| 125 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 143 |
596030701 |
Screws This part replaces 539990858. Price: $2.99 |
| 153 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 159 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 160 |
596029401 |
GSPW Retainers This part replaces 532169484. Price: $3.99 |
| 161 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 163 |
593861001 |
Rods This part replaces 532448275. Price: $22.99 |
| 166 |
532429164 |
NUT.PUSH.625 Price: $4.99 |
| 167 |
531152901 |
SERVICE KIT LATCH LATCH.BRAKE. This part replaces 532405257. Price: $2.99 |
| 183 |
532137057 |
SPACER AXLE Price: $5.99 |
| 184 |
532196439 |
HANDLE.PARKING.BRAKE.H (BLK) This part replaces 587653701. Price: $9.99 |
| 185 |
872110622 |
BOLT Price: $3.99 |
| 186 |
532194321 |
SPACER.RETAINER Price: $7.99 |
| 187 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 188 |
582217001 |
LINK.CLUTCH.GROUND DRIVE.LONG Price: $4.99 |
| 189 |
531169001 |
SERVICE KIT BELLCRANK This part replaces 532194317. Price: $6.99 |
| 190 |
532194318 |
KEEPER.BELLCRANK.DRIVE Price: $5.99 |
| 196 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 197 |
585658602 |
Stop This part replaces 585658601. Price: $4.99 |
| 205 |
532121748 |
WASHER Price: $3.99 |
| 206 |
532448596 |
BRACKET.MOUNT.CRUISE.LATCH Price: $4.99 |
| 207 |
587031402 |
Latch This part replaces 587031401. Price: $5.99 |
| 208 |
596564101 |
Gears This part replaces 532197869. Price: $4.99 |
| 209 |
590527802 |
ROD ROD.CRUISECONTROL.GT.HUSQ/ This part replaces 590527801. Price: $6.99 |
| 210 |
532400980 |
ROCKER.ASM.PEDAL.CONTR Price: $32.99 |
| 211 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 213 |
532403119 |
KNOB.CONTROL.CRUSIE.HU Price: $8.99 |
| 214 |
532421263 |
PEDAL.FORWARD.PAD.TEX Price: $6.99 |
| 215 |
586606502 |
PEDAL.COVER.REVERSE.CRD.X428BK Price: $17.99 |
| 216 |
532196131 |
BRACKET.PULLEY.IDLER.W/TEX Price: $6.99 |
| 221 |
532403187 |
RETAINER.SPRING.CLIP.H Price: $3.99 |
| 222 |
879212010 |
WASHER 21/32 X 1-1/4 X 10 GA. Price: $3.99 |
| 225 |
531149001 |
SERVICE KIT KEEPER BELT KEEPER This part replaces 532403319. Price: $5.99 |
| 227 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 817490512. Price: $3.99 |
| 231 |
532407287 |
IDLER.V-GROOVE.1.688.OFFSET Price: $19.99 |
| 325 |
586431203 |
BRACKET TORQUE STRAP This part replaces 586431201. Price: $4.99 |
| 326 |
586001103 |
BRACKET TORQUE STRAP This part replaces 586001101. Price: $5.99 |
| 334 |
585882202 |
SWAY.ROD.BRACKET.K46.X431 This part replaces 585882201. Price: $11.99 |
| 336 |
587259602 |
Bolts This part replaces 587259601. Price: $3.99 |
