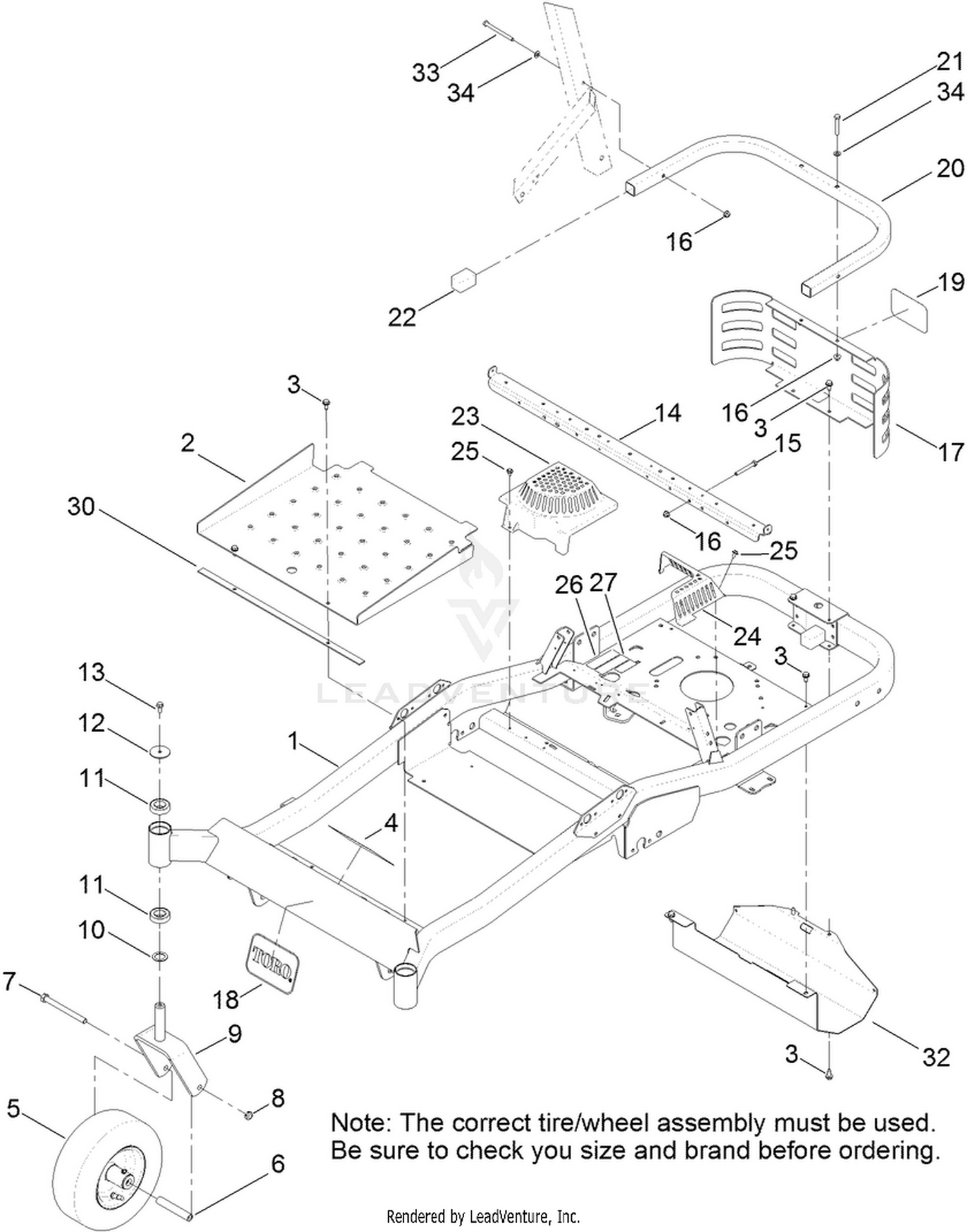

| Ref | Part Number | Description |
|---|
| 1 |
117-7356-01 |
FRAME Price: $1,316.38 |
| 2 |
115-2531-05 |
PAN-FLOOR Price: $127.09 |
| 3 |
32144-70 |
SCREW-HWHTF Price: $1.99 |
| 4 |
120-5466 |
DECAL-SAFETY Price: $6.92 |
| 5 |
115-2554 |
TIRE AND WHEEL ASM (KENDA) Price: $122.22 |
| 5 |
125-1822 |
TIRE AND WHEEL ASM (C S T) Price: $84.56 |
| 6 |
104-3667 |
BUSHING-SPANNER Price: $12.64 |
| 7 |
325-22 |
SCREW-HH Price: $4.26 |
| 8 |
3296-45 |
NUT-HEX Price: $3.79 |
| 9 |
110-6634-01 |
CASTER FORK ASM Price: $62.71 |
| 10 |
10-8110 |
WASHER-THRUST Price: $1.09 |
| 11 |
109-3678 |
BEARING-BALL Price: $9.46 |
| 12 |
109-3724 |
WASHER Price: $2.12 |
| 13 |
3234-47 |
SCREW-HHF Price: $1.79 |
| 14 |
119-8997-03 |
SUPPORT-SEAT Price: $33.46 |
| 15 |
32136-4 |
NUT-HEX,SLOTTED This part replaces 322-12. Price: $1.56 |
| 16 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 17 |
120-2248-03 |
GUARD-REAR Price: $83.63 |
| 18 |
62-5550 |
DECAL Price: $9.32 |
| 19 |
105-8278 |
DECAL Price: $9.67 |
| 20 |
121-0704-01 |
TUBE-GUARD Price: $68.41 |
| 21 |
322-10 |
SCREW-HH Price: $0.70 |
| 22 |
121-2980 |
CAP Price: $1.47 |
| 23 |
117-1241 |
COVER-FAN, RH Price: $12.84 |
| 24 |
117-1242 |
COVER-FAN, LH Price: $9.41 |
| 25 |
46-8560 |
SCREW-HHFTF Price: $1.79 |
| 26 |
119-8980 |
DECAL-SERIAL Price: Call Us |
| 27 |
121-3279 |
DECAL-EMISSIONS, E P A Price: Call Us |
| 30 |
117-7238 |
STRIP-VIBRATION, ANTI Price: $6.22 |
| 32 |
131-4137-03 |
SHIELD-HEAT This part replaces 120-2247-03. Price: $53.36 |
| 33 |
321-9 |
SCREW-HH This part replaces 322-23. Price: $0.27 |
