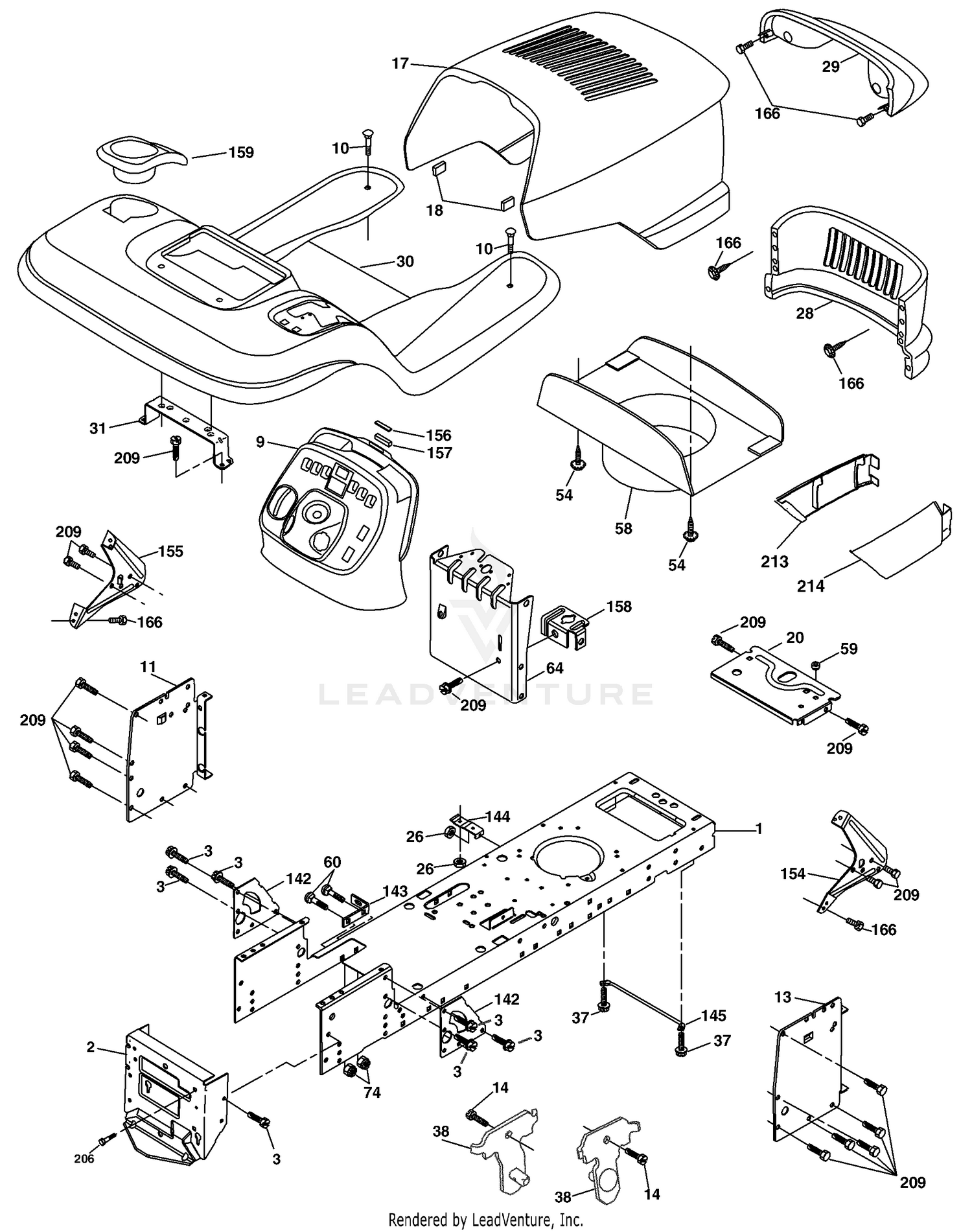

| Ref | Part Number | Description |
|---|
| 1 |
174619 |
Chassis Price: Call Us |
| 1 |
32151-46 |
RING-RETAINING Price: $8.38 |
| 2 |
176554 |
Drawbar Price: Call Us |
| 2 |
25-2500 |
SHAFT-TRUNNION Price: $191.66 |
| 3 |
17060612 |
Screw 3/8-16 x 3/4 Price: Call Us |
| 3 |
25-2510 |
WASHER-FLAT Price: $2.41 |
| 4 |
28-3300 |
BEARING-ROLLER Price: $137.87 |
| 5 |
252-82 |
BEARING-NEEDLE Price: $51.31 |
| 6 |
92-5709 |
HOUSING-TRANSMISSION Price: $1,947.60 |
| 7 |
25-3210 |
SEAL-LIP Price: $23.14 |
| 8 |
28-3670 |
SHAFT-TRUNNION Price: $149.64 |
| 9 |
163976X428 |
Dash Price: Call Us |
| 9 |
93-4133 |
SEAL-LIP Price: $37.43 |
| 10 |
251-8 |
BEARING-BALL This part replaces 28-3650. Price: $30.06 |
| 10 |
72140608 |
Bolt 3/8-16 x 1 Price: Call Us |
| 11 |
167203 |
Panel Dash Lh Price: Call Us |
| 11 |
3257-5 |
KEY-WOODRUFF Price: $5.13 |
| 12 |
28-3640 |
SHAFT-PUMP Price: $1,171.13 |
| 13 |
178298 |
Panel Dash Rh Price: Call Us |
| 13 |
25-2450 |
PLATE-SWASH, VARIABLE This part replaces 49-7820. Price: $896.81 |
| 14 |
17490608 |
Screw Thdrol 3/8-16 x 1/2 Price: Call Us |
| 14 |
32121-91 |
PIN-SPRING Price: $0.81 |
| 15 |
25-2380 |
PLATE-THRUST Price: $32.89 |
| 16 |
48-1800 |
CYLINDER BLOCK KIT Price: $1,923.22 |
| 17 |
175260X428 |
Hood Price: Call Us |
| 17 |
46-7320 |
PLATE-VALVE, PUMP Price: $418.46 |
| 18 |
164655 |
Extrusion Bumper Price: Call Us |
| 18 |
25-3300 |
BEARING-NEEDLE Price: $107.05 |
| 20 |
162026 |
Plate Battery Price: Call Us |
| 22 |
49-7830 |
CHECK VALVE KIT Price: $311.16 |
| 23 |
25-2460 |
PLUG-HH Price: $37.38 |
| 24 |
28-3400 |
O-RING Price: $6.67 |
| 25 |
25-2470 |
PACK-SHIM Price: $47.36 |
| 26 |
46-7310 |
SPRING Price: $18.78 |
| 26 |
73800600 |
Nut Lock Hex W/Ins 3/8-16 Unc Price: Call Us |
| 27 |
83-7260 |
CONE-RELIEF, CHARGE Price: $50.57 |
| 28 |
175289X428 |
Grille Price: Call Us |
| 28 |
285-17 |
PLUG-PIPE Price: $2.59 |
| 29 |
179761 |
Light Box Asm W/Lens Price: Call Us |
| 29 |
323-8 |
SCREW-HH Price: $1.20 |
| 30 |
175692X428 |
Fender Price: Call Us |
| 30 |
28-3530 |
CAPSCREW Price: $4.00 |
| 31 |
139976 |
Bracket Fender Price: Call Us |
| 36 |
28-3450 |
WASHER Price: $0.25 |
| 37 |
117-6988 |
CHARGE PUMP KIT This part replaces 38-2670. Price: $1,753.04 |
| 37 |
17490508 |
Screw Thdrol 6/16-18 x 1/2 TYT Price: Call Us |
| 38 |
175710 |
Bracket, Asm. Pivot Mower Rear Price: Call Us |
| 39 |
92-5716 |
SECTION-CENTER Price: $2,472.04 |
| 40 |
125-5303 |
PLUG ASM This part replaces 92-5717. Price: $29.84 |
| 42 |
136-3219 |
PLUG ASM This part replaces 28-3440. Price: $21.54 |
| 43 |
323-10 |
SCREW-HH Price: $0.89 |
| 44 |
25-2480 |
SPRING-VALVE Price: $4.93 |
| 45 |
28-3380 |
PLATE-VALVE, MOTOR Price: $468.61 |
| 46 |
25-2430 |
PIN-DOWEL Price: $0.95 |
| 47 |
49-8200 |
SHAFT-MOTOR Price: $1,051.65 |
| 48 |
353-599 |
PIN-DOWEL Price: $2.65 |
| 49 |
28-3340 |
GASKET Price: $16.81 |
| 54 |
161464 |
Screw Hex Wshd 8-18 x 7/8 Price: Call Us |
| 58 |
175351 |
Duct Hood Price: Call Us |
| 59 |
177579 |
Bushing Snap Price: Call Us |
| 60 |
72140606 |
Bolt Rd Hd Sqnk 3/8-16 Unc x 3/4 Price: Call Us |
| 64 |
174997 |
Dash Lower Price: Call Us |
| 74 |
73680600 |
Nut Crownlock 3/8-16 Unc Price: Call Us |
| 142 |
175702 |
Plate Reinforcement STLT Price: Call Us |
| 143 |
154966 |
Bracket Swaybar Chassis Price: Call Us |
| 144 |
175582 |
Bracket Footrest Price: Call Us |
| 145 |
156524 |
Rod Pivot Chassis/Hood Price: Call Us |
| 154 |
161897 |
Bracket Dash Rh Price: Call Us |
| 155 |
161900 |
Bracket Dash Lh Price: Call Us |
| 156 |
163805 |
Striker Plate Price: Call Us |
| 157 |
163806 |
Magnet Stealth Price: Call Us |
| 158 |
162037 |
Bracket Parking Brake Price: Call Us |
| 159 |
155123X428 |
Cupholder Price: Call Us |
| 166 |
171875 |
Screw Hw Hd Hi-Lo #13-16 x 3/4 Price: Call Us |
| 206 |
170165 |
Bolt Shoulder 5/16-18 Price: Call Us |
| 209 |
17000612 |
Screw Hexwsh Thdrol 3/8-16 x 3/4 Price: Call Us |
| 213 |
169848X428 |
Skirt Grille Lh Price: Call Us |
