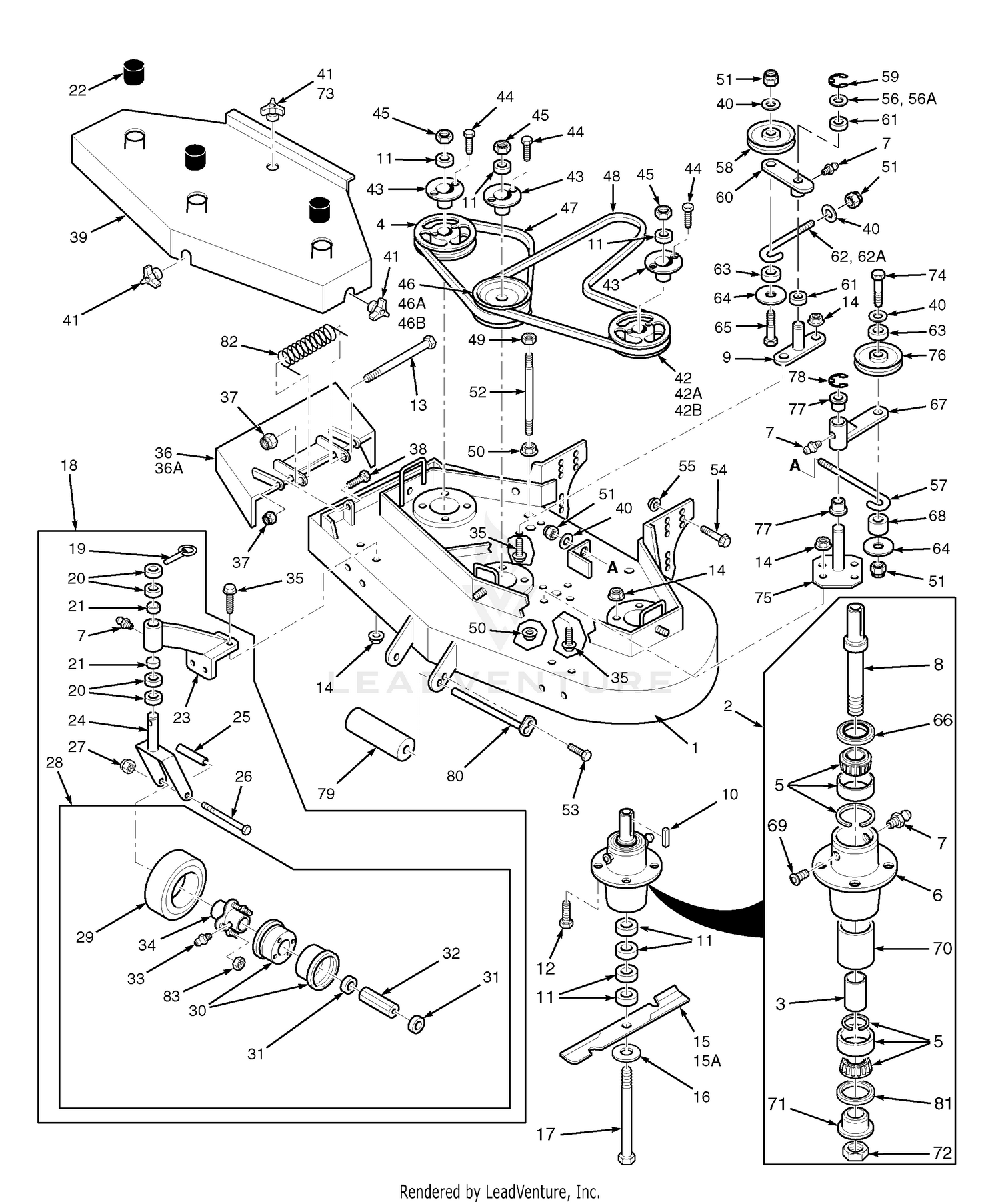

| Ref | Part Number | Description |
|---|
| NS |
481773 |
Inner Tube Only, Caster Wheel This part replaces 48006-03. Price: Call Us |
| 2 |
461663 |
Spindle Assembly This part replaces 46631. Price: Call Us |
| 3 |
43296 |
Spacer, Inside Price: Call Us |
| 4 |
482744 |
Pulley, 5.75 OD Taper Bore This part replaces 48924. Price: Call Us |
| 5 |
481022 |
Tapered Bearing (Two) Price: Call Us |
| 6 |
43644 |
Spindle Housing This part replaces 43294. Price: Call Us |
| 7 |
48114-04 |
Grease Fitting Str. 5/16 Price: Call Us |
| 8 |
43589 |
Shaft, Spindle This part replaces 43298. Price: Call Us |
| 9 |
45037 |
Idler Pivot Price: Call Us |
| 10 |
04063-08 |
Key, 1/4 x 1/4 x 2" Price: Call Us |
| 11 |
43592 |
Spacer, Cutter Blade This part replaces 43278. Price: Call Us |
| 12 |
04001-10 |
Bolt, 5/16-18 x 1-1/4" Hex Head Price: Call Us |
| 13 |
04001-108 |
Bolt, 5/16-18 x 4-1/4" Hex Head Price: Call Us |
| 14 |
04019-03 |
Serrated Flange Nut, 5/16-18 Price: Call Us |
| 15 |
481708 |
Cutter Blade 21" This part replaces 48111. Price: Call Us |
| 15A |
481712 |
Cutter Blade 21" Hi-Lift This part replaces 48304. Price: Call Us |
| 16 |
04040-10 |
Flatwasher,5/8" (.688 x 1.75 x .134) Price: Call Us |
| 17 |
04001-41 |
Hex Head Bolt, 5/8-11 x 9-1/2" Price: Call Us |
| 19 |
04066-01 |
Quick Pin Price: Call Us |
| 20 |
43037-01 |
Spacer, Caster Yoke, 1/2" thick Price: Call Us |
| 21 |
48100-01 |
Bronze Bearing Price: Call Us |
| 22 |
48098 |
Spindle Shield Price: Call Us |
| 24 |
45006 |
Caster Yoke Price: Call Us |
| 25 |
43022 |
Sleeve, Caster Wheel Bearing Price: Call Us |
| 26 |
04001-37 |
Hex Hd Bolt, 1/2-13 x 5-1/2" Price: Call Us |
| 27 |
04021-07 |
Elastic Stop Nut, 1/2-13 Price: Call Us |
| 29 |
481774 |
Tire Only, Caster Wheel This part replaces 48307-02. Price: Call Us |
| 30 |
481772 |
Rim Pair, Caster Wheel This part replaces 48307-04. Price: Call Us |
| 31 |
481770 |
Retainer This part replaces 48006-07. Price: Call Us |
| 32 |
481769 |
Roller Bearing .625 x 3.25" This part replaces 48006-06. Price: Call Us |
| 33 |
48114-03 |
Grease Fitting 45 deg., 1/4-28 Price: Call Us |
| 35 |
04017-16 |
Capscrew, 5/16-18 x 3/4" Price: Call Us |
| 36A |
461291 |
Discharge Chute This part replaces 461054. Price: Call Us |
| 37 |
04021-04 |
Nut, Center Lock, 5/16-18(32) Price: Call Us |
| 38 |
04001-09 |
Bolt, 5/16-18 x 1" Hex Head Price: Call Us |
| 40 |
04041-07 |
Flat Washer, 3/8" Special Price: Call Us |
| 41 |
04029-03 |
Wing Nut, 3/8-16 (Large) Price: Call Us |
| 42A |
482745 |
Pulley, 6.35 O.D. This part replaces 48753. Price: Call Us |
| 43 |
48926 |
Tapered Hub Price: Call Us |
| 44 |
04001-01 |
Bolt, 1/4-20 x 3/4" Hex Head Price: Call Us |
| 45 |
04020-09 |
Nut, 5/8-11 Hex Price: Call Us |
| 46A |
48940 |
Pulley, Double Price: Call Us |
| 47 |
48265 |
Belt, RH Blade Drive Price: Call Us |
| 48 |
48088 |
Belt, Blade Drive Price: Call Us |
| 49 |
04021-05 |
Nut, 3/8-16, Nut Centerlock Price: Call Us |
| 50 |
04019-04 |
Nut, 3/8-16, Serrated Flange Price: Call Us |
| 51 |
04021-09 |
Nut, 3/8-16 Elastic Stop Price: Call Us |
| 52 |
04004-02 |
Support, Belt Cover Price: Call Us |
| 53 |
04001-08 |
Bolt, 5/16-18 x 1/2" Hex Head Price: Call Us |
| 54 |
04017-42 |
Cpscrw,7/16-14 x 1"Ser Flng H Hd Price: Call Us |
| 55 |
04019-05 |
Nut, 7/16-14 Serrated Flange Price: Call Us |
| 56 |
04041-08 |
Flat Washer 3/4" Special Price: Call Us |
| 56A |
04041-08S |
Flat Washer 3/4" Special Price: Call Us |
| 57 |
44078 |
J-Hook Price: Call Us |
| 58 |
48181 |
Idler Pulley, "V" Groove Price: Call Us |
| 59 |
04050-02 |
Retaining Ring, 3/4" Ext."E" Price: Call Us |
| 61 |
48100-05 |
Bronze Bearing Price: Call Us |
| 62 |
43028 |
J-Rod, Idler Pulley Price: Call Us |
| 63 |
43077 |
Spacer, J-Rod Price: Call Us |
| 64 |
04041-12 |
Washer, 3/8 x 1-1/2 x 16 ga. Price: Call Us |
| 65 |
04001-46 |
Bolt, 3/8-16 x 2-1/4" Hex Head Price: Call Us |
| 66 |
481024 |
Seal, Cutter Spindle Price: Call Us |
| 68 |
43277 |
Spacer, J-Rod Price: Call Us |
| 69 |
48677 |
Relief Fitting, Cutter Spindle Price: Call Us |
| 70 |
43312 |
Spacer, Outside, Cutter Spindle Price: Call Us |
| 71 |
43297 |
Spindle Bushing Price: Call Us |
| 72 |
481035 |
Nut, Cutter Spindle Price: Call Us |
| 73 |
04029-04 |
Wing Nut, 3/8-16 (Small) Top Side Price: Call Us |
| 74 |
04001-77 |
Bolt, 3/8-16 x 3-1/2" Hex Head Price: Call Us |
| 75 |
45329 |
Idler Pivot Price: Call Us |
| 76 |
483215 |
Pulley, 5" Dia. Idler This part replaces 48269. Price: Call Us |
| 77 |
48100-02 |
Bronze Bearing Price: Call Us |
| 78 |
04050-05 |
Retaining Ring Price: Call Us |
| 79 |
48038 |
Guide Roller Price: Call Us |
| 80 |
45944 |
Roller Shaft Price: Call Us |
| 81 |
481025 |
Seal, Cutter Spindle Price: Call Us |
| 82 |
482245 |
Spring, Discharge Chute This part replaces 481050. Price: Call Us |
