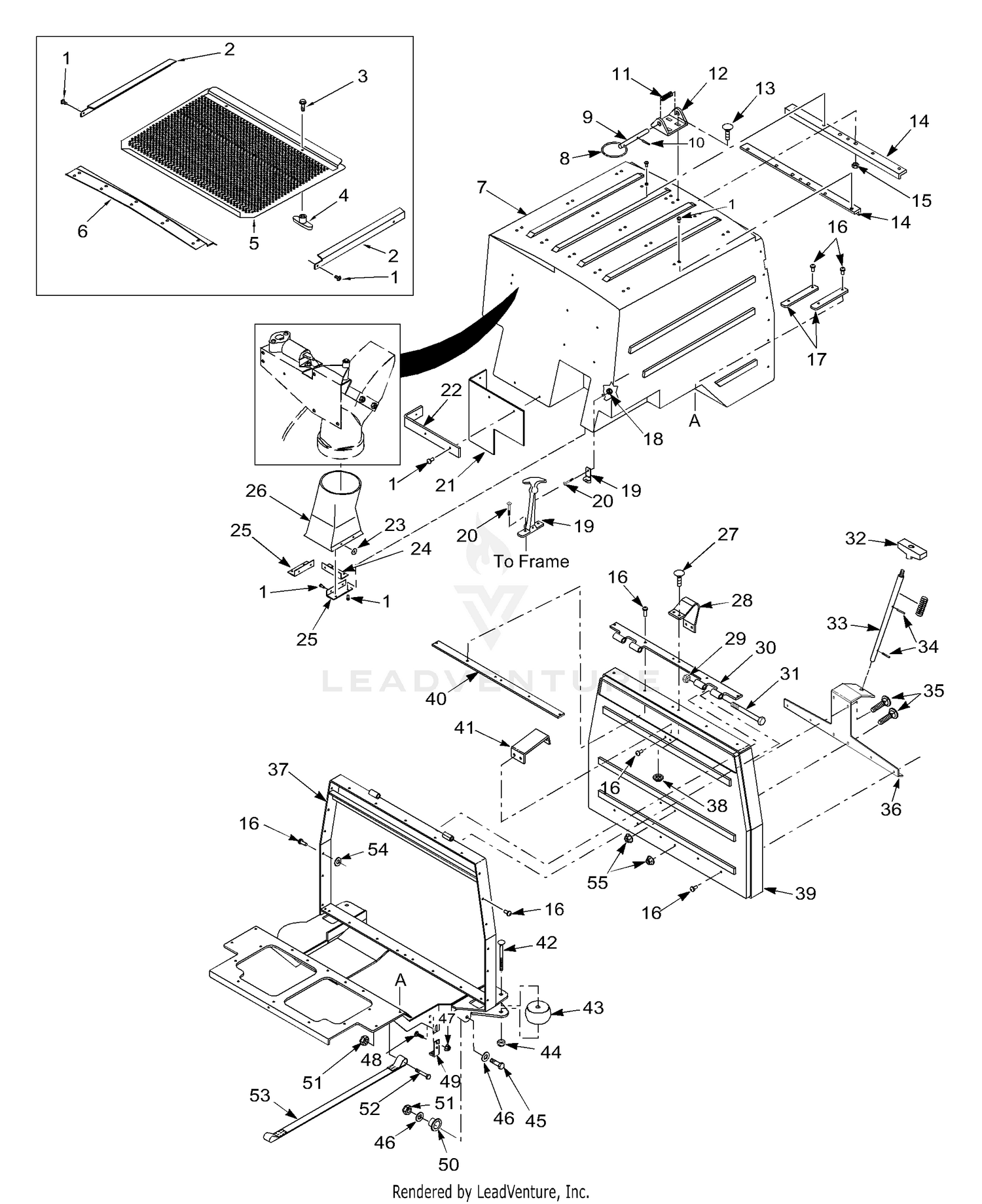

| Ref | Part Number | Description |
|---|
| 1 |
04090-02 |
Pop Rivet, 3/16 x .652 Price: Call Us |
| 2 |
451193 |
Guide Weldment, Screen Price: Call Us |
| 3 |
04001-08 |
Bolt, Hex Head 5/16-18 x 3/4" Price: Call Us |
| 4 |
481092-01 |
Plastic Knob, 5/16-18 Price: Call Us |
| 5 |
451191 |
Screen Weldment Price: Call Us |
| 6 |
451289 |
Stop Weldment, Screen Price: Call Us |
| 8 |
481876 |
Split Ring Price: Call Us |
| 9 |
43548 |
Pin, Hopper Latch Price: Call Us |
| 10 |
04060-01 |
Roll Pin Price: Call Us |
| 11 |
482070 |
Spring, Door Lock Price: Call Us |
| 12 |
422872 |
Mount, Latch Pin Price: Call Us |
| 13 |
04003-06 |
Bolt, Carr. 1/4-20 x 1" Price: Call Us |
| 14 |
422978 |
Support, Hopper Top Price: Call Us |
| 15 |
04019-02 |
Nut, Serr. Flange 1/4-20 Price: Call Us |
| 16 |
04091-01 |
Pop Rivet, 1/4 x .85 Price: Call Us |
| 17 |
423178 |
Retainer Strip, Hopper Price: Call Us |
| 18 |
04021-01 |
Nut, Elastic Stop #10-32 Price: Call Us |
| 19 |
482409 |
Latch, Hopper Price: Call Us |
| 20 |
04010-12 |
Screw, #10-32 x 3/4" Price: Call Us |
| 21 |
482073 |
Pad, Rubber Heat Deflector Price: Call Us |
| 22 |
423130 |
Backing PLate, Heat Deflector Price: Call Us |
| 23 |
04040-14 |
Flatwasher, 1/4-.312 x .750 x .065 Price: Call Us |
| 24 |
422037 |
Mount, Transition Chute Rear Price: Call Us |
| 25 |
422228 |
Mount, Transition Chute Side Price: Call Us |
| 26 |
481279 |
Chute, Transition Price: Call Us |
| 27 |
04003-06 |
Bolt, Carr. 1/4-20 x 1" Price: Call Us |
| 28 |
422871 |
Latch, Hopper Door Price: Call Us |
| 29 |
04021-10 |
Nut, Elastic Stop 5/16-18 Price: Call Us |
| 30 |
451189 |
Hinge Weldment, Hopper Door Price: Call Us |
| 31 |
04001-126 |
Bolt, Hex Head 5/16-18 x 5-1/2" Price: Call Us |
| 32 |
481092-01 |
Plastic Knob, 5/16-18 Price: Call Us |
| 33 |
43547 |
Pin, Hopper Door Price: Call Us |
| 34 |
04060-08 |
Roll Pin, .188 x 1-1/2" Price: Call Us |
| 35 |
04003-12 |
Bolt, Carr. 5/16-18 x 3/4" Price: Call Us |
| 36 |
423128 |
Bracket, Door Latch Price: Call Us |
| 37 |
451190 |
Hopper Frame Weldment Price: Call Us |
| 38 |
04019-02 |
Nut, Serr. Flange 1/4-20 Price: Call Us |
| 39 |
461421 |
DOOR ASSY, SCR This part replaces 481973. Price: Call Us |
| 40 |
422932 |
Backing Strip, Hinge Price: Call Us |
| 41 |
423131 |
Backing Plate, Door Latch Price: Call Us |
| 42 |
04003-26 |
Bolt, Carr. 3/8-16 x 4" Price: Call Us |
| 43 |
481632 |
Wheel, Anti-Scalp Price: Call Us |
| 44 |
04021-05 |
Lock Nut, 3/8-16 Price: Call Us |
| 45 |
04001-21 |
Bolt, Hex Head 3/8-16 x 1-3/4" Price: Call Us |
| 46 |
04041-07 |
Flatwasher, 3/8-.391 x .938 x .105 Price: Call Us |
| 47 |
04019-02 |
Nut, Serr. Flange 1/4-20 Price: Call Us |
| 48 |
04003-02 |
Bolt, Carr. 1/4-20 x 3/4" Price: Call Us |
| 49 |
423017 |
Bracket, Switch Mounting Price: Call Us |
| 50 |
43546 |
Bushing, Hopper Pivot Price: Call Us |
| 51 |
04021-09 |
Nut, Elastic Stop 3/8-16 Price: Call Us |
| 52 |
04001-62 |
Bolt, Hex Head 3/8-16 x 3-1/4" Price: Call Us |
| 53 |
482071 |
Strap Bucket Stop Price: Call Us |
| 54 |
04041-22 |
Flatwasher, 1/4-.258 x .50 x .0598 Price: Call Us |
