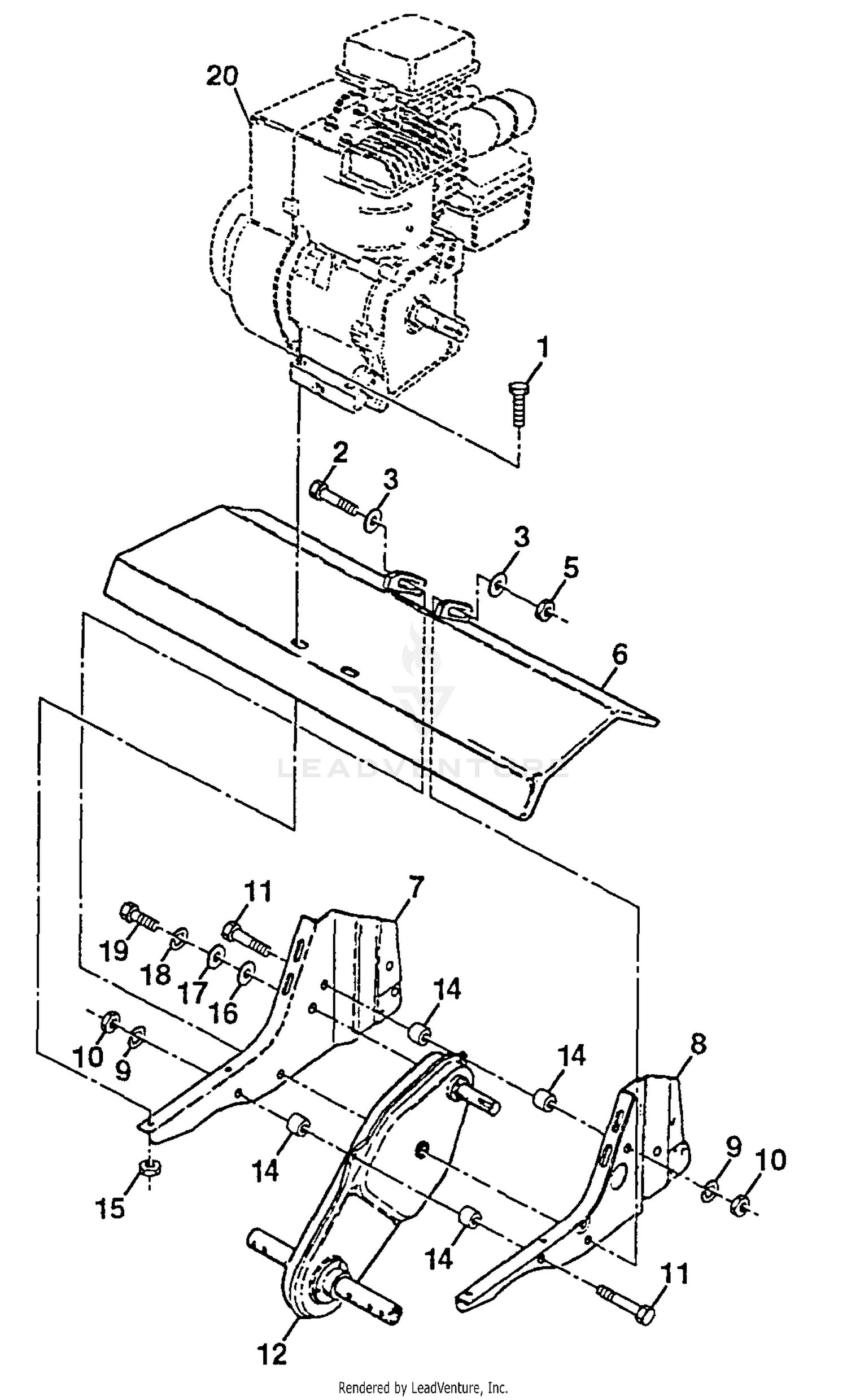

| Ref | Part Number | Description |
|---|
| 1 |
131-2033-01 |
ARM-PITCH, LH Price: $54.59 |
| 1 |
74760524 |
Bolt, Hex 5/16-18 x 1-1/2 Price: Call Us |
| 2 |
131-2034-01 |
ARM-PITCH, RH Price: $54.59 |
| 2 |
74780652 |
Bolt, Hex 3/8-16 x 3-1/4 Price: Call Us |
| 3 |
121-2251-01 |
SHIELD-TOP Price: $179.89 |
| 3 |
19131311 |
Washer 13/32 x 13/16 x 11 Ga. Price: Call Us |
| 4 |
121-2246 |
BRACE-FRAME Price: $53.05 |
| 5 |
115-5227 |
MOTOR ADAPTER ASM Price: $98.96 |
| 5 |
73800600 |
Locknut, w/Insert 3/8-16 Price: Call Us |
| 6 |
9056R505 |
Shield Tine Price: Call Us |
| 7 |
121-2248 |
HOUSING-BEARING Price: $138.75 |
| 7 |
165835 |
Bracket, Engine, R.H. Price: Call Us |
| 8 |
165834 |
Bracket, Engine, L.H. Price: Call Us |
| 8 |
94-3405 |
BEARING-BALL Price: $22.27 |
| 9 |
10040500 |
Washer, Lock 5/16 Price: Call Us |
| 9 |
3274-83 |
SCREW-HSH Price: $2.78 |
| 10 |
115-3340 |
WEIGHT ASM Price: $136.76 |
| 10 |
73220500 |
Nut, Hex 5/16-18 Price: Call Us |
| 11 |
104-8300 |
NUT-HF, NI Price: $0.39 |
| 11 |
74760544 |
Bolt, Hex 5/16-18 x 2-3/4 (AYP part number) Price: Call Us |
| 12 |
151937 |
Transmission Price: Call Us |
| 12 |
3234-29 |
SCREW-HHF Price: $1.84 |
| 13 |
117-6706 |
CLAMP-MOTOR Price: $34.81 |
| 14 |
120-9738 |
SCREW-HH This part replaces 322-11. Price: $0.84 |
| 14 |
9173R |
Spacer, Split Price: Call Us |
| 15 |
302-33 |
FITTING-GREASE Price: $2.31 |
| 15 |
73510500 |
Nut, Keps 5/16-18 Price: Call Us |
| 16 |
19091412 |
Washer 9/32 x 7/8 x 12 Ga. Price: Call Us |
| 17 |
19092016 |
Washer 9/32 x 1-1/4 x 16 Ga. Price: Call Us |
| 18 |
10040400 |
Washer, Lock 1/4 Price: Call Us |
