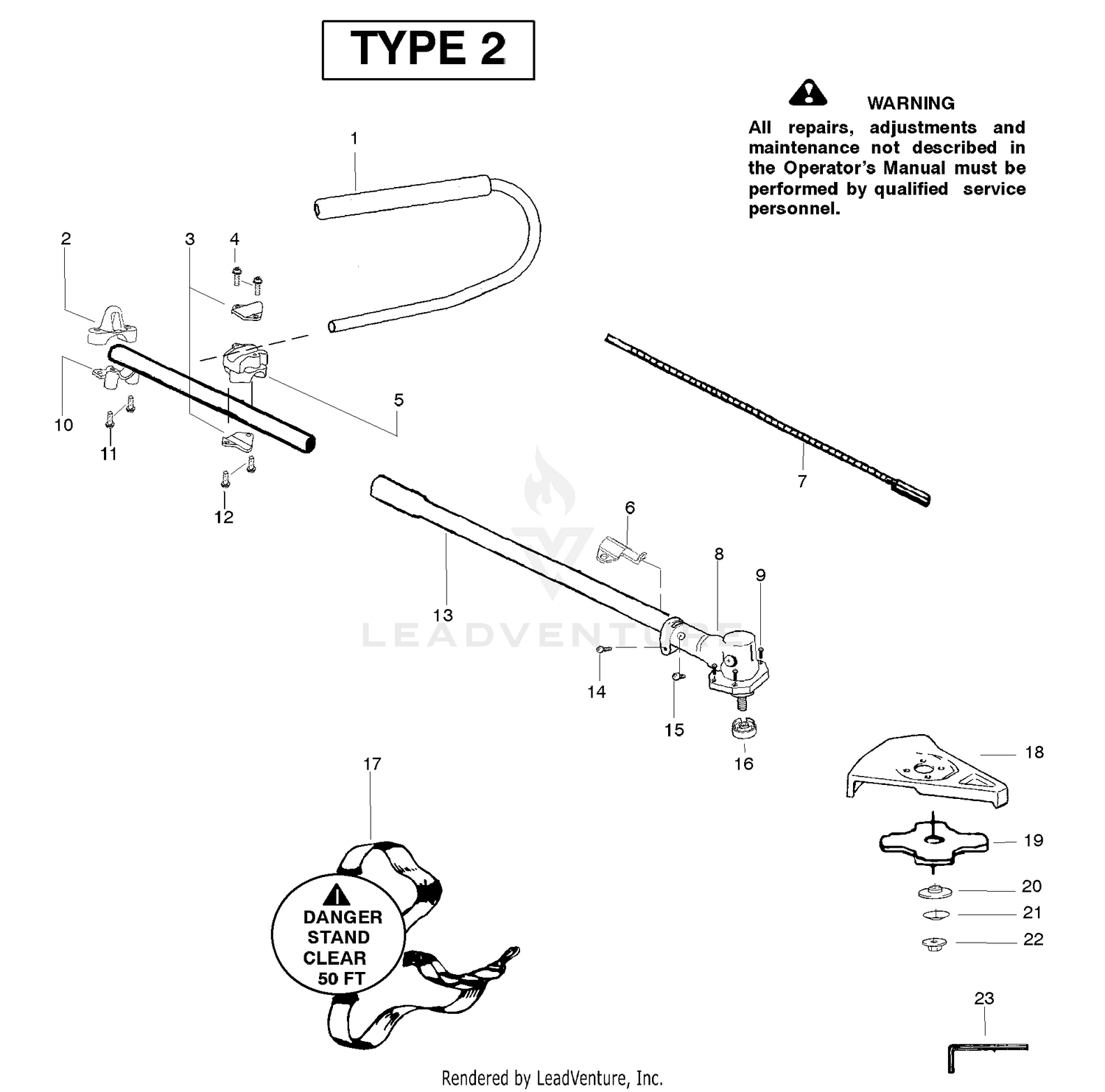

| Ref | Part Number | Description |
|---|
| 1 |
5604 |
Decal Price: Call Us |
| 2 |
530071605 |
KIT HARNESS CLAMP This part replaces 530055392. Price: $2.99 |
| 2 |
W-731 |
Lockwasher Price: Call Us |
| 3 |
530058563 |
Clamp-Bracket Price: $2.99 |
| 3 |
N-806 |
Nut, Hex Price: Call Us |
| 4 |
5087 |
OBSOLETE FEBRUARY 1991 Price: Call Us |
| 4 |
530015886 |
Screw Price: $1.99 |
| 5 |
5097 |
OBSOLETE NOVEMBER 1998 Price: Call Us |
| 5 |
530058765 |
Clamp-Handlebar (1") Price: $2.99 |
| 5 |
530058766 |
Clamp-Handlebar (7/8") Price: $2.99 |
| 6 |
530095812 |
Bracket-Shield Price: $1.99 |
| 6 |
5788 |
Disc, Handle Price: Call Us |
| 7 |
530096183 |
Flexshaft-Split boom Price: $2.99 |
| 7 |
8909 |
Pulley-Engine Price: Call Us |
| 8 |
530071585 |
Assy-Gearbox Price: $54.99 |
| 8 |
N-885 |
Locknut Price: Call Us |
| 9 |
530016312 |
Screw Price: $1.99 |
| 9 |
5822 |
Rod-Shift Price: Call Us |
| 10 |
530071605 |
KIT HARNESS CLAMP This part replaces 530055395. Price: $2.99 |
| 10 |
5784 |
See Supercession: HY5784 Price: Call Us |
| 11 |
4642 |
Latch Price: Call Us |
| 11 |
530016406 |
Screw Price: $1.99 |
| 12 |
530015886 |
Screw Price: $1.99 |
| 12 |
5785 |
Bolt, Latch Price: Call Us |
| 13 |
530071862 |
Assy.-Driveshaft Price: $17.99 |
| 13 |
5787 |
Steering Shaft Price: Call Us |
| 14 |
4405 |
Fuel Tank Price: Call Us |
| 14 |
530016014 |
Screw Price: $1.99 |
| 15 |
530016224 |
Screw-Alignment Price: $1.99 |
| 15 |
5789 |
Shaft, Pinion Price: Call Us |
| 16 |
530095815 |
Dust cup - Blade Price: $6.99 |
| 16 |
R-57 |
Ring, Retaining Price: Call Us |
| 17 |
11686 |
Frame Price: Call Us |
| 17 |
530094417 |
Shoulder Strap This part replaces 530094408. Price: $20.65 |
| 18 |
530071383 |
Kit-Blade Shield Price: $9.99 |
| 18 |
5790 |
STEERING SECTOR *R Price: Call Us |
| 19 |
4592 |
Bushing Price: Call Us |
| 19 |
952701611 |
Accy.-Weed Blade (8") Price: $26.19 |
| 20 |
530095816 |
Washer-Blade Retaining Price: $6.99 |
| 20 |
N-952 |
Locknut Price: Call Us |
| 21 |
530016240 |
Washer-Belleville Price: $1.99 |
| 22 |
530015793 |
Nut-Flange Price: $1.99 |
| 23 |
530031159 |
Wrench-Hex (5/32") Price: $1.99 |
