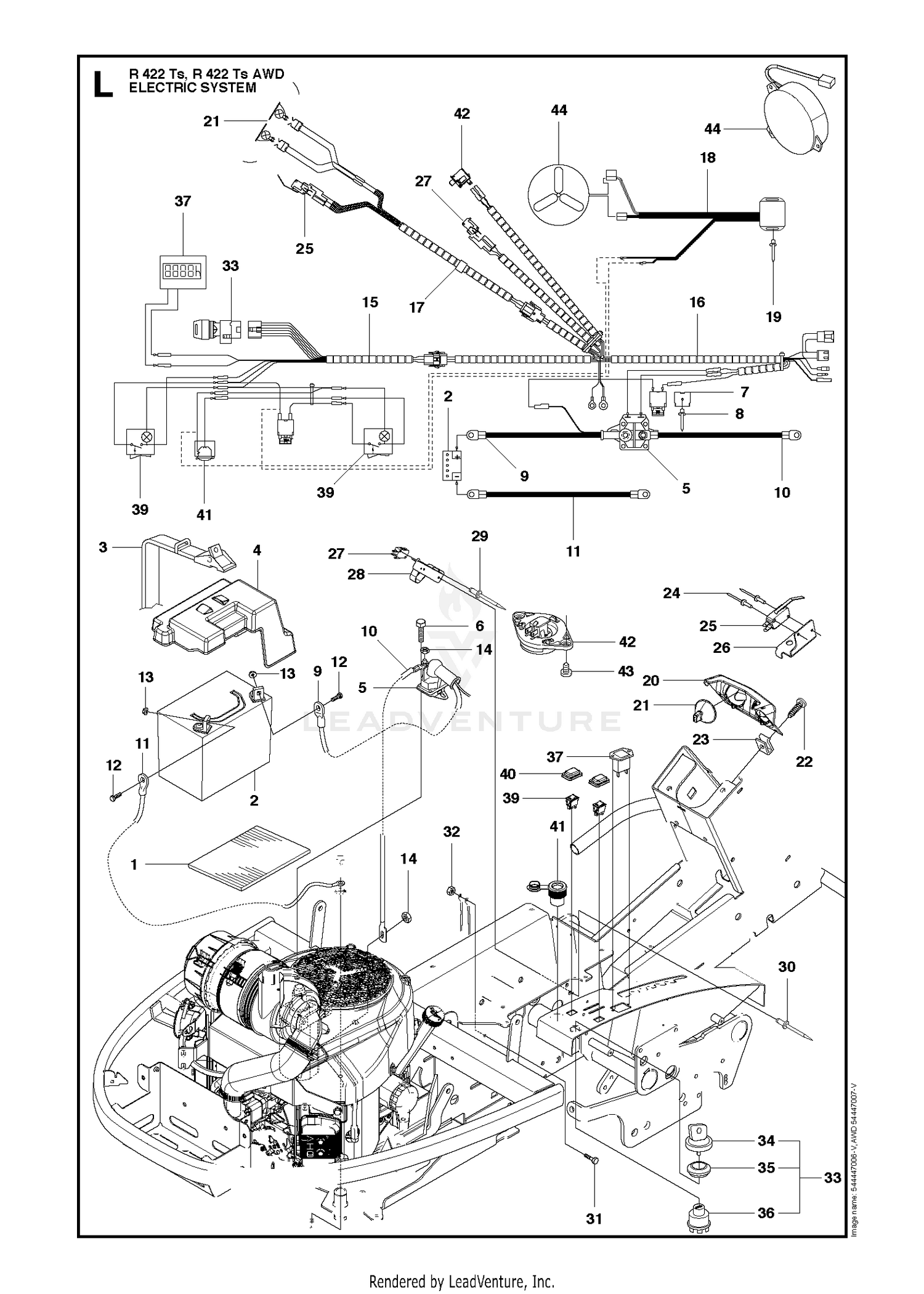

ELECTRICAL
Parts (54)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 115-2657 | SPINDLE-STEERING Price: $241.71 |
| 1 | 535441101 | MAT Price: $8.55 |
| 2 | 3234-38 | SCREW-HHF Price: $3.33 |
| 2 | 577041601 | BATTERY Price: $129.99 |
| 3 | 145-4578-01 | BASE-REAR FORK (MACHINING) This part replaces 117-4366-01. Price: $535.23 |
| 3 | 506836802 | BELT Price: $9.99 |
| 5 | 119-4490 | WHEEL SPINDLE ASM Price: $270.51 |
| 5 | 544439801 | RELAY Price: $17.99 |
| 6 | 115-9471 | BEARING-CUP Price: $6.46 |
| 6 | 725236461 | SCREW Price: $2.99 |
| 7 | 115-9472 | BEARING-CONE AND SEAL Price: $22.04 |
| 8 | 99-5107 | NUT-LOCK Price: $1.77 |
| 9 | 3272-37 | PIN-COTTER Price: $0.75 |
| 9 | 578896501 | CABLE Price: $12.99 |
| 10 | 18-6320 | WASHER-STEERING Price: $2.65 |
| 10 | 576183901 | CABLE Price: $8.99 |
| 11 | 32136-9 | NUT-HEX, SLOTTED Price: $7.44 |
| 11 | 576183801 | CABLE Price: $11.99 |
| 12 | 325-12 | SCREW-HH Price: $2.27 |
| 12 | 522622101 | SCREW EHHM Price: $2.99 |
| 13 | 121-3605 | BALL JOINT Price: $81.43 |
| 13 | 522624301 | NUT Price: $2.99 |
| 14 | 3234-22 | SCREW-HHF Price: $2.69 |
| 14 | 506899801 | NUT Price: $2.99 |
| 15 | 32151-104 | RING-RETAINING, EXTERNAL Price: $4.85 |
| 15 | 580616501 | NEEDS DESCRIPTION Price: Call Us |
| 16 | 121-3611 | NUT-HEX, FLEXTOP Price: $4.44 |
| 16 | 580616401 | NEEDS DESCRIPTION Price: Call Us |
| 17 | 325-8 | SCREW-HH Price: $3.52 |
| 17 | 577013501 | NEEDS DESCRIPTION Price: Call Us |
| 18 | 117-4480 | HYD CYLINDER ASM Price: $924.68 |
| 20 | 535446701 | NEEDS DESCRIPTION Price: Call Us |
| 21 | 582214201 | LIGHT This part replaces 535446801. Price: $8.99 |
| 22 | 535415619 | SCREW Price: $2.99 |
| 23 | 506892001 | NUT Price: $7.99 |
| 24 | 544440701 | RIVET Price: $2.99 |
| 25 | 574316101 | MICRO SWITCH Price: $11.99 |
| 26 | 544415701 | BRACKET Price: $4.99 |
| 27 | 574316001 | SWITCH Price: $11.99 |
| 28 | 535457001 | NEEDS DESCRIPTION Price: Call Us |
| 29 | 544440701 | RIVET Price: $2.99 |
| 30 | 722783902 | Rivet Price: $1.99 |
| 31 | 725232551 | Price: $1.25 |
| 32 | 731231401 | NUT Price: $1.99 |
| 33 | 535474901 | NEEDS DESCRIPTION Price: Call Us |
| 34 | 535476001 | NEEDS DESCRIPTION Price: Call Us |
| 35 | 535475001 | NEEDS DESCRIPTION Price: Call Us |
| 36 | 504851701 | NEEDS DESCRIPTION Price: Call Us |
| 37 | 577092701 | NEEDS DESCRIPTION Price: Call Us |
| 39 | 535462301 | NEEDS DESCRIPTION Price: Call Us |
| 40 | 535462401 | NEEDS DESCRIPTION Price: Call Us |
| 41 | 535474801 | NEEDS DESCRIPTION Price: Call Us |
| 42 | 582876601 | NEEDS DESCRIPTION Price: Call Us |
| 43 | 503218872 | SCREW IHSCFT This part replaces 503218816. Price: $4.99 |
