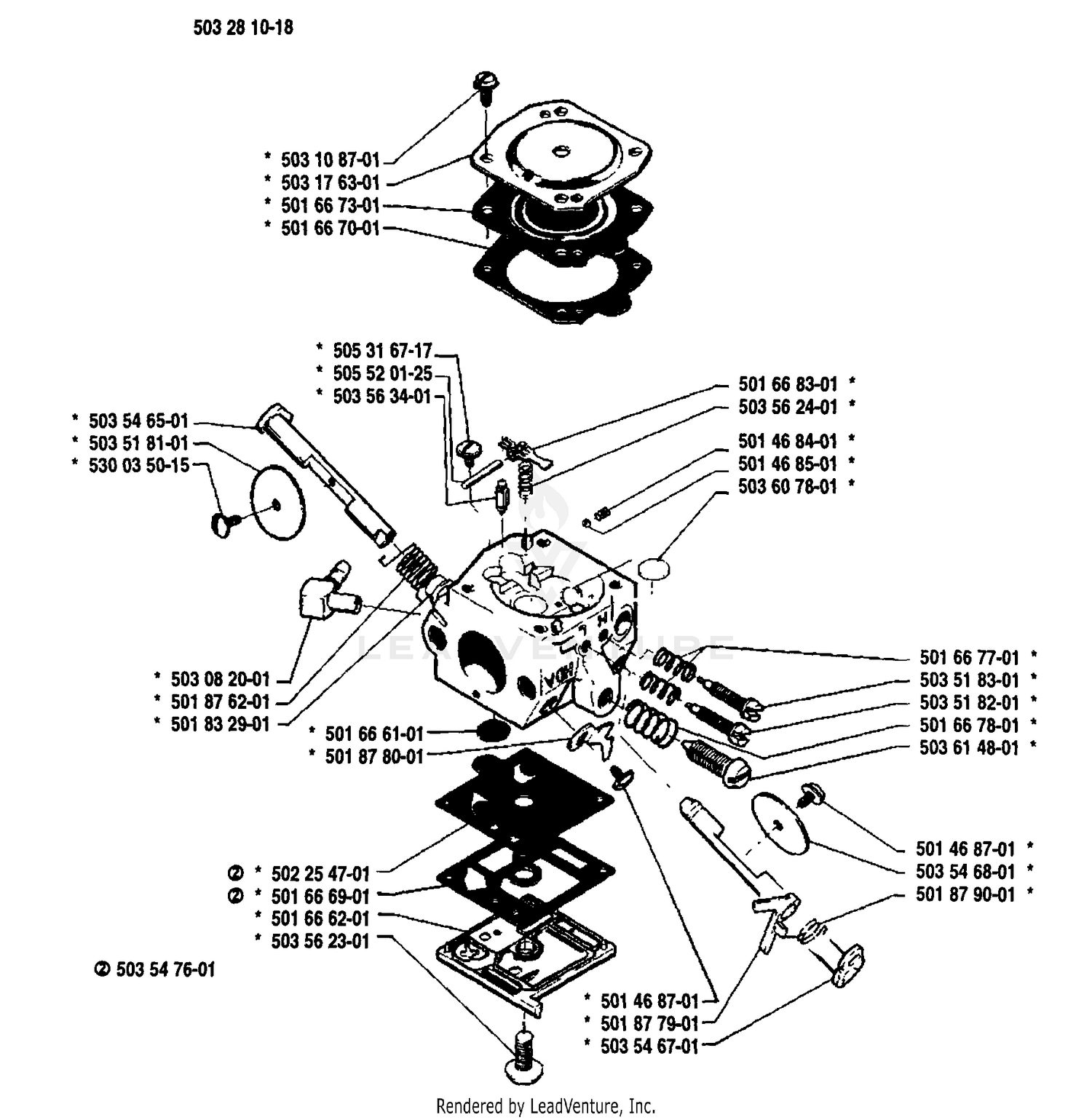

| Ref | Part Number | Description |
|---|
| 501468401 |
501468401 |
SPRING Price: $6.99 |
| 501468501 |
501468501 |
BALL Price: $6.99 |
| 501468701 |
501468701 |
SCREW Price: $6.99 |
| 501666101 |
501666101 |
FUEL INLET SCREEN Price: $12.99 |
| 501666201 |
501666201 |
COVER, PUMP SIDE Price: $5.99 |
| 501666901 |
501666901 |
GASKET, PUMP SIDE Price: $14.99 |
| 501667001 |
501667001 |
GASKET, METERING SIDE Price: $6.99 |
| 501667301 |
501667301 |
METERING DIAPHRAGM Price: $64.99 |
| 501667701 |
501667701 |
SPRING Price: $7.99 |
| 501667801 |
530035121 |
IDLE SCREW SPRING This part replaces 501667801. Price: $2.99 |
| 501668301 |
501668301 |
LEVER Price: $14.99 |
| 501832901 |
501832901 |
BUSHING Price: $2.99 |
| 501876201 |
501876201 |
Throttle Return Spring Price: $3.41 |
| 501877901 |
501877901 |
LEVER FAST IDLE Price: $1.41 |
| 501878001 |
501878001 |
THROTTLE STOP Price: $0.88 |
| 501879001 |
501879001 |
SPRING CHOKE Price: $0.53 |
| 502254701 |
502254701 |
PUMP DIAPHRAGM Price: $19.99 |
| 503082001 |
503082001 |
NIPPLE Price: $4.99 |
| 503108701 |
503584601 |
SCREW This part replaces 503108701. Price: $2.99 |
| 503176301 |
503176301 |
COVER METERING DIAPHR. Price: $4.99 |
| 503281018 |
503281611 |
CARB. HDA-144-1 WALBRO This part replaces 503281018. Price: $99.99 |
| 503518101 |
503518101 |
THROTTLE VALVE Price: $2.12 |
| 503518201 |
503518201 |
NEEDLE HIGH SPEED NLA Price: $10.71 |
| 503518301 |
503518301 |
NEEDLE IDLE NLA Price: $6.04 |
| 503546501 |
503546501 |
THROTTLESHAFT ASS'Y Price: $6.76 |
| 503546701 |
503546701 |
CHOKESHAFT ASS'Y Price: $2.99 |
| 503546801 |
503546801 |
Price: $2.42 |
| 503547601 |
503547601 |
DIAPHRAGM SET Price: $8.99 |
| 503562301 |
503562301 |
Screw Price: $0.40 |
| 503562401 |
503562401 |
SPRING Price: $6.99 |
| 503563401 |
503563401 |
INLET NEEDLE Price: $14.99 |
| 503614801 |
503614801 |
IDLE SPEED SCREW Price: $2.99 |
| 505316717 |
505316717 |
SCREW Price: $6.99 |
| 505520125 |
505520125 |
FULCRUM PIN Price: $6.99 |
| 530035015 |
530035015 |
SCREW SHUTTERS Price: $2.99 |
