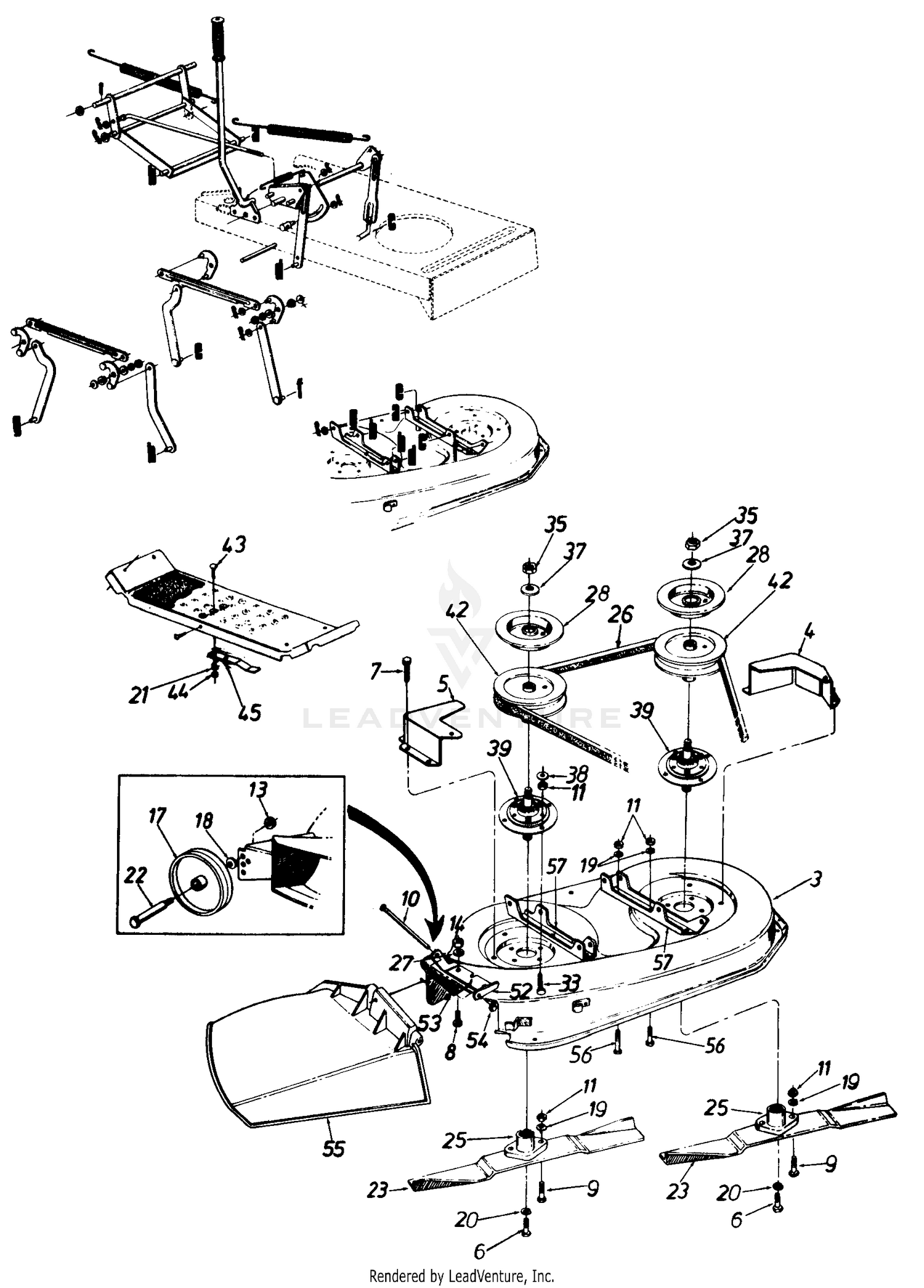

| Ref | Part Number | Description |
|---|
| 4 |
17664-0637 |
Belt Guard Deck-L.H. This part replaces 17664. Price: $28.52 |
| 5 |
17665-0637 |
BELT GUARD (POWDER BLACK) Not Available This part replaces 17665. Price: |
| 6 |
710-1039 |
Hex Bolt 3/8-24 x 1" Lg. This part replaces 710-0152. Price: $4.02 |
| 7 |
710-0599 |
Hex Wash. Hd. TT-Tap Scr. 1/4-20 x .5" Lg. Price: $3.86 |
| 8 |
710-0924 |
Truss Mach. Scr. 1/4-20 x.75" Lg. This part replaces 710-0255. Price: $4.02 |
| 9 |
710-0888 |
Hex Bolt Special 5/16-24 x 1.0" Price: $3.86 |
| 10 |
911-0792 |
Hinge Pin This part replaces 7110792. Price: $4.05 |
| 11 |
912-3057 |
Hex Nut 5/16-24 Thd. This part replaces 712-0123. Price: $5.94 |
| 13 |
712-0181 |
Hex Top L-Nut 3/8-16 Thd. Price: $3.90 |
| 14 |
912-0287 |
HEX NUT 1/4-20 Not Available This part replaces 7120287. Price: |
| 17 |
734-06265 |
DECK WHEEL (5.0 DIA X 1.38) This part replaces 734-0973. Price: $11.69 |
| 18 |
736-0105 |
Bell-Wash. .40" I.D. x .88" O.D. Price: $3.96 |
| 19 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 20 |
736-0217 |
L-Wash. 3/8" I.D.-H.D. Price: $3.86 |
| 21 |
936-0329 |
L-Wash. 1/4" I.D. This part replaces 736-0329. Price: $3.90 |
| 22 |
938-0373 |
Shld. Bolt .498" Dia. x 1.53" This part replaces 738-0373. Price: $8.45 |
| 23 |
942-0499A |
High-Lift Blade This part replaces 742-0499. Price: $31.99 |
| 25 |
748-0300 |
Blade Adapter Not Available Price: |
| 26 |
954-0371A |
Upper V-belt This part replaces 754-0371. Price: $96.40 |
| 27 |
736-0270 |
SPRING WASHER BELL Price: $3.63 |
| 28 |
09322 |
BRAKE DISC Not Available Price: |
| 33 |
710-0157 |
Hex Bolt 5/16-24 x .75" Lg. Price: $3.90 |
| 35 |
712-0318 |
HEX JAM NUT 5/8-18 Not Available Price: |
| 37 |
736-0158 |
L-Wash. 5/8" I.D. Price: $3.90 |
| 38 |
936-0119 |
Lock Wash. 5/16" I.D. This part replaces 736-0119. Price: $4.29 |
| 39 |
753-05319 |
Blade Spindle Ass'y. Comp. This part replaces 717-0906. Price: $112.64 |
| 52 |
703-1693A |
Hinge Mtg. Brkt. This part replaces 7031693. Price: $20.29 |
| 53 |
732-0602A |
Torsion Spring Not Available This part replaces 7320602. Price: |
| 54 |
726-0106 |
PUSH NUT This part replaces 7260106. Price: $3.37 |
| 55 |
631-05229 |
CHUTE ASSEMBLY This part replaces 7311032. Price: $71.37 |
| 56 |
710-0157 |
Hex Bolt 5/16-24 x .75" Lg. Price: $3.90 |
