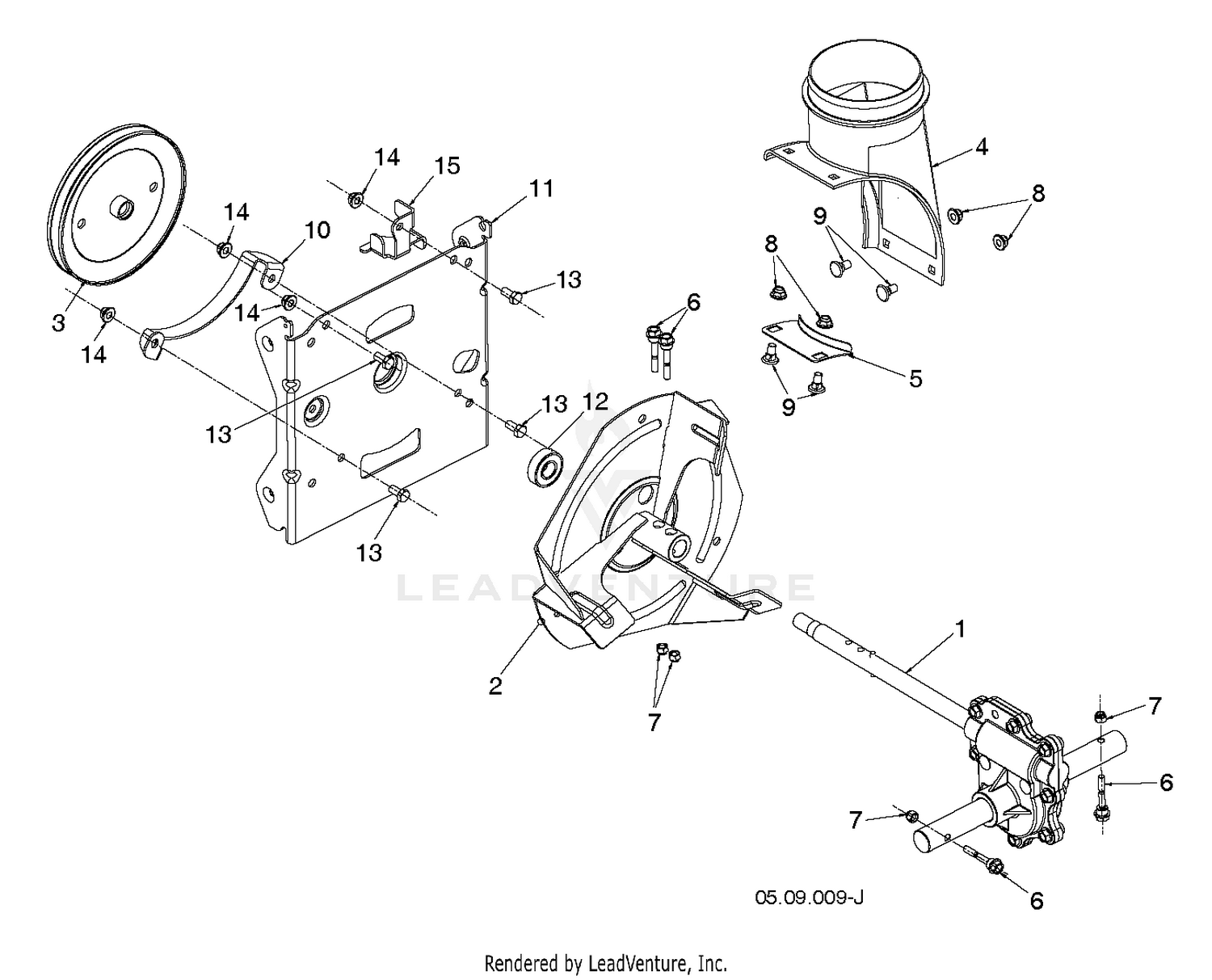

| Ref | Part Number | Description |
|---|
| 1 |
3290-134 |
SCREW Price: $0.27 |
| 1 |
501149601 |
GEARBOX.AUGER. Price: $169.99 |
| 2 |
2412-31 |
CLAMP-BODEN Price: $1.56 |
| 2 |
586607202 |
IMPELLER.STEEL.SNOW.BLACK Price: $29.99 |
| 3 |
3296-2 |
NUT-LOCK, NI Price: $1.89 |
| 3 |
587402401 |
PULLEY SCREW ON 7.3 5/8 Price: $12.99 |
| 4 |
221-507 |
DISCONTINUED Price: Call Us |
| 4 |
585056901 |
CHUTE.DISCHARGE.BASE Price: $6.99 |
| 5 |
26-0050 |
DISCONTINUED Price: Call Us |
| 5 |
532184095 |
BRACKET, CORNER DISCHARGE Price: $2.99 |
| 6 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 6 |
588077501 |
BOLT.1/4-20 X 1-13/16 SHEAR Price: $1.99 |
| 7 |
3217-6 |
NUT-HEX Price: $1.19 |
| 7 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 873800400. Price: $1.99 |
| 8 |
3274-10 |
SCREW-HSH Price: $0.47 |
| 8 |
585691301 |
NUT HEX FLG NYLOCK BLK 5_16-1 Price: $2.99 |
| 9 |
18-6430 |
KEY-SQUARE Price: $3.56 |
| 9 |
585691201 |
BOLT CARR WAFER BLK 5_16-18 X Price: $3.99 |
| 10 |
26-2100 |
DISCONTINUED Price: Call Us |
| 10 |
581632002 |
BRACKET.BELT.KEEPER.LOWER.BLAC Price: $4.99 |
| 11 |
3256-25 |
WASHER-FLAT Price: $0.25 |
| 11 |
581592502 |
BRACKET.AUG.HOUSING.INTER.BLAC Price: $32.99 |
| 12 |
3272-21 |
PIN-COTTER Price: $3.09 |
| 12 |
532198791 |
BEARING Price: $11.99 |
| 13 |
32121-24 |
PIN-SPRING Price: $0.95 |
| 13 |
532163183 |
BOLT, HEX HEAD 5/16-18 Price: $2.99 |
| 14 |
26-2810 |
DISCONTINUED Price: Call Us |
| 14 |
532427942 |
NUTNYLOK.FLRANGE.5/16-18 Price: $2.99 |
| 15 |
29-6120-03 |
PUMP PLATE ASM This part replaces 29-6120. Price: $93.02 |
| 17 |
321-4 |
SCREW-HH Price: $0.99 |
| 19 |
29-6163 |
SWITCH-MICRO This part replaces 29-6160. Price: $91.23 |
| 20 |
29-6170 |
EXTENDED LEAF SPRING ASM Price: $45.56 |
| 21 |
3296-29 |
NUT-LOCK, NI Price: $2.09 |
| 22 |
251-259 |
BEARING-BALL Price: $13.67 |
| 23 |
110-9650 |
LEAF SPRING ASM This part replaces 29-6150. Price: $33.06 |
| 24 |
322-17 |
SCREW-HH Price: $2.62 |
| 25 |
32104-95 |
SCREW-HWH This part replaces 32104-42. Price: $0.41 |
| 26 |
3257-32 |
KEY-WOODRUFF Price: $2.52 |
| 27 |
32121-16 |
PIN-SPRING Price: $0.41 |
| 28 |
325-7 |
SCREW-HH Price: $1.53 |
| 29 |
26-2950 |
WIRE-STANDOFF Price: $10.28 |
| 30 |
237-79 |
O-RING Price: $5.46 |
| 31 |
37-8040 |
DISCONTINUED Price: Call Us |
| 32 |
AU218-5106 |
FITTING-ELB 90 This part replaces 353-371. Price: $10.29 |
| 33 |
237-42 |
O-RING Price: $2.78 |
| 34 |
103-1802 |
FITTING-ELBOW, 90 DEG This part replaces 353-374. Price: $22.99 |
| 35 |
353-511 |
FITTING-HYD, 90 DEG Price: $31.93 |
| 36 |
323-6 |
SCREW-HH Price: $0.66 |
| 37 |
3253-5 |
WASHER-LOCK Price: $0.29 |
| 38 |
37-8030-03 |
PUMP MOUNT This part replaces 37-8030. Price: $372.16 |
| 39 |
3253-7 |
WASHER-LOCK Price: $0.27 |
| 40 |
3217-9 |
NUT-HH Price: $0.37 |
| 41 |
3296-42 |
NUT-LOCK, NI Price: $0.28 |
| 42 |
3247-4 |
SCREW-SET Price: $0.54 |
| 43 |
3217-7 |
NUT-HEX Price: $0.28 |
| 44 |
18-6490 |
ENGINE BASE *B Price: $129.36 |
| 45 |
323-8 |
SCREW-HH Price: $1.20 |
| 46 |
3218-3 |
NUT-JAM Price: $0.25 |
| 47 |
3246-16 |
SCREW-SET Price: $0.95 |
| 48 |
26-7080 |
Drum Price: Call Us |
| 49 |
26-6950 |
Shoe Price: Call Us |
| 50 |
26-7090 |
DISCONTINUED- BP 485 Price: Call Us |
| 51 |
46-9160 |
DISCONTINUED This part replaces 26-7220. Price: Call Us |
| 52 |
3210-7 |
SCREW-HH Price: $0.61 |
| 53 |
3249-11 |
SCREW-MACHINE Price: $0.54 |
| 54 |
3254-9 |
WASHER-LOCK, INTERNAL Price: $0.25 |
