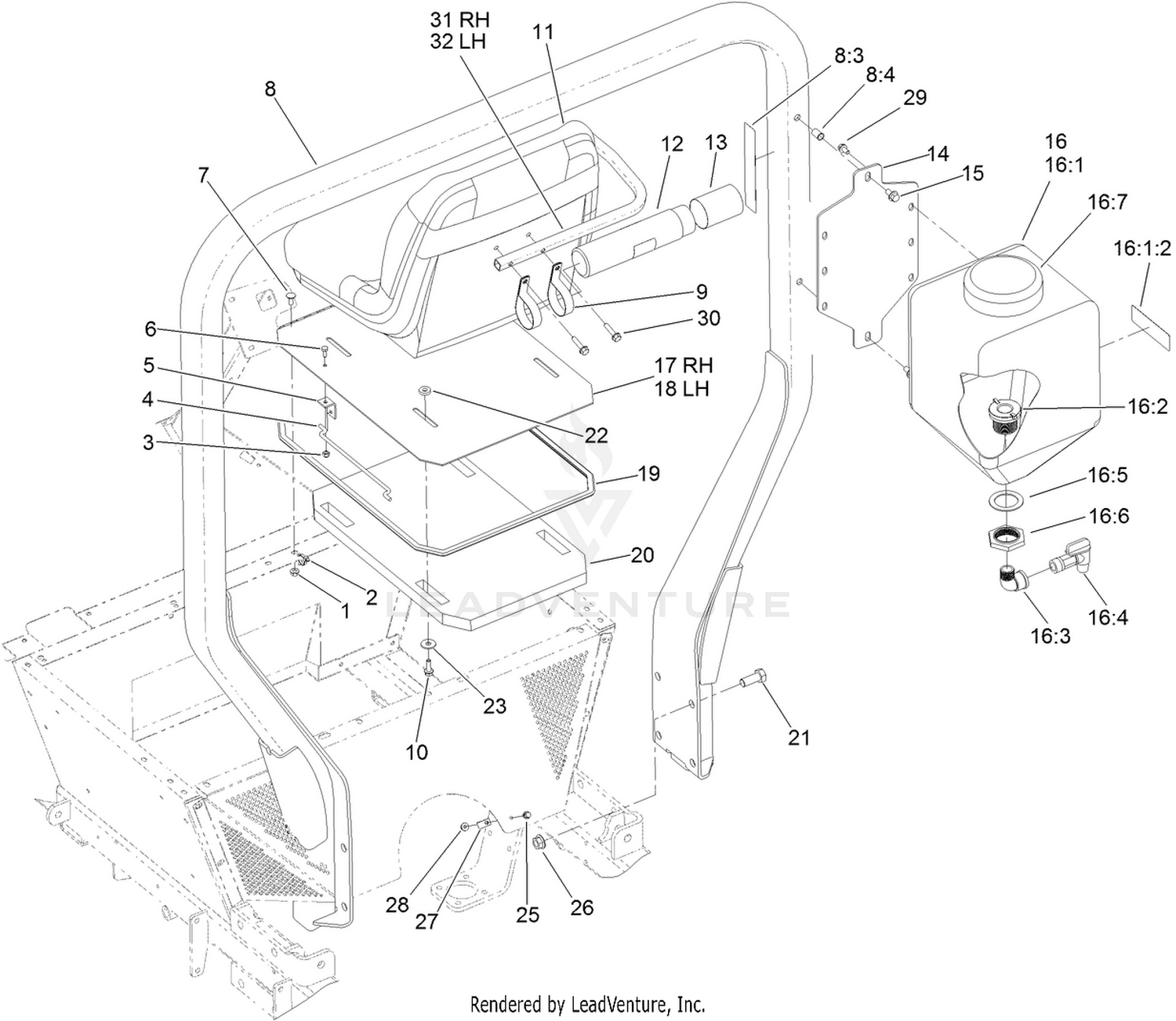

Roll-Over Protection System and Seat Assembly
Parts (30)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 32128-20 | NUT-HF Price: $0.99 |
| 2 | 3290-379 | TIE-CABLE Price: $0.31 |
| 3 | 3296-42 | NUT-LOCK, NI Price: $0.28 |
| 4 | 94-7204 | ROD-PROP, SEAT Price: $37.74 |
| 5 | 94-7203 | BRACKET Price: $30.73 |
| 6 | 321-3 | SCREW-HH Price: $0.28 |
| 7 | 3230-23 | SCREW-CARR Price: $0.89 |
| 8 | 119-0589 | ROPS ASM Price: $1,160.80 |
| 9 | 2412-133 | CLAMP-R Price: $3.19 |
| 10 | 33104-025 | SCREW-HHF Price: $6.47 |
| 11 | 112-2923 | SEAT ASM Price: $290.09 |
| 12 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 13 | 104-7048 | CAP-HOUSING Price: $5.21 |
| 14 | 120-0763-03 | PLATE-FRESH WATER Price: $57.28 |
| 15 | 3234-1 | SCREW-HHF Price: $1.62 |
| 16 | 117-7901 | FRESH WATER TANK ASM Price: $261.29 |
| 17 | 108-3289-03 | PANEL-SEAT, RH Price: $146.39 |
| 18 | 108-3288-03 | PANEL-SEAT, LH Price: $146.39 |
| 19 | 94-7085 | TRIM Price: $54.26 |
| 20 | 108-3290 | BARRIER-NOISE, SEAT Price: $30.83 |
| 21 | 327-4 | SCREW-HH Price: $2.20 |
| 22 | 7-0081 | WASHER-FLAT Price: $0.89 |
| 23 | 52-2861 | WASHER Price: $1.29 |
| 25 | 3234-4 | SCREW-HHF Price: $0.50 |
| 26 | 32128-50 | NUT-FLANGE Price: $1.78 |
| 27 | 2412-72 | CLIP-CLOSED, INSULATED Price: $1.90 |
| 28 | 104-7201 | NUT-HF Price: $0.69 |
| 29 | 3234-14 | SCREW-HHF Price: $0.61 |
| 30 | 33104-035 | SCREW-HHF Price: $0.88 |
| 31 | 140-6360 | ARMREST-RH This part replaces 119-0732-03. Price: $54.73 |
