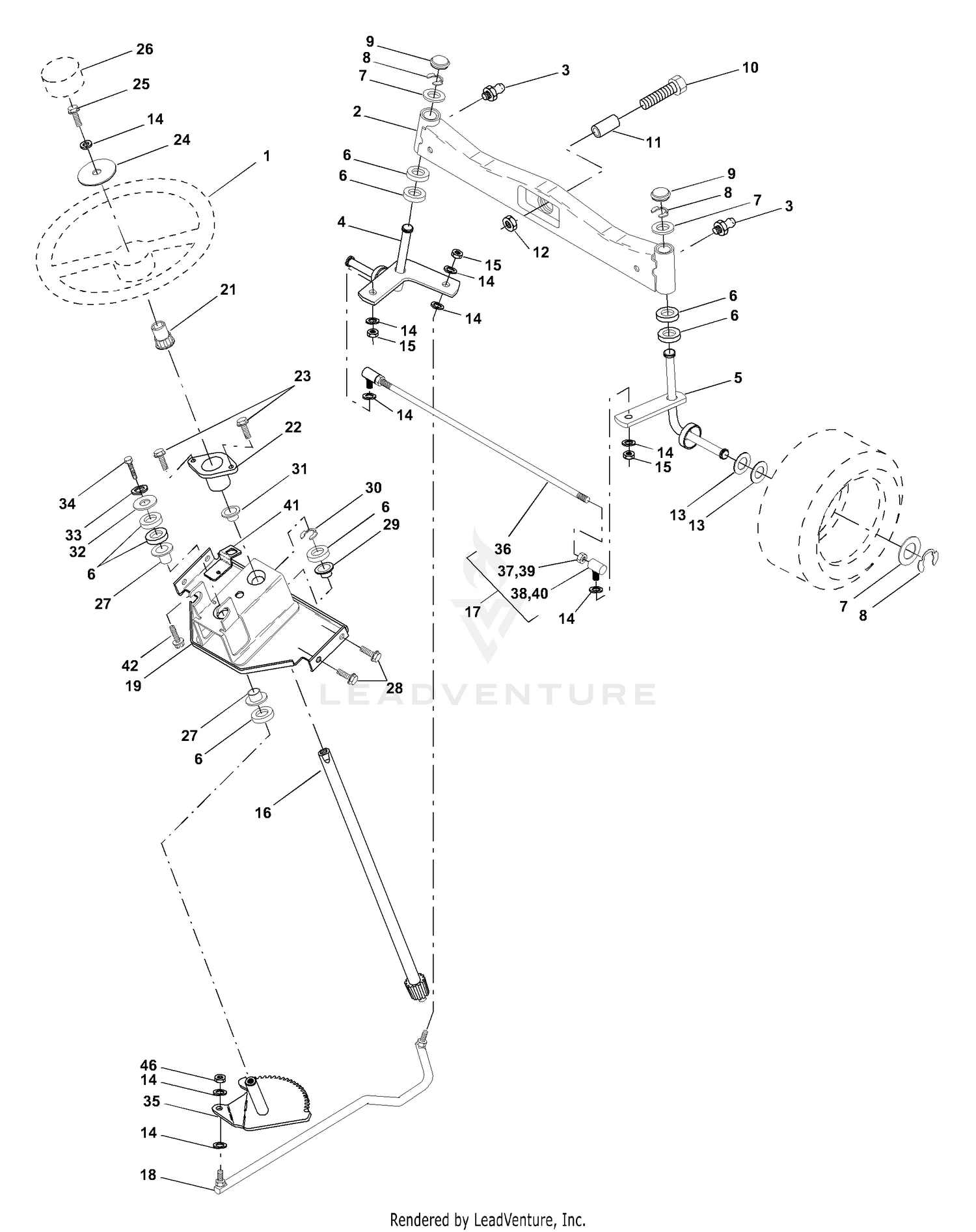

| Ref | Part Number | Description |
|---|
| 1 |
532166627 |
STEERING WHEEL Price: $64.99 |
| 1 |
70-4840 |
NUT Price: $30.33 |
| 2 |
532178557 |
AXLE.FRONT.CAST.MACHINE.W/ZERK This part replaces 532137094. Price: $179.99 |
| 2 |
70-6170 |
NOZZLE TIP ASSEMBLY Price: $230.23 |
| 3 |
532183226 |
FITTING.GREASE.TAPERED This part replaces 532124836. Price: $4.99 |
| 3 |
70-6830 |
PIN Price: $5.30 |
| 4 |
532161849 |
SPINDLE ASSY LH Price: $27.99 |
| 4 |
70-4930 |
PACKING Price: $56.58 |
| 5 |
532161848 |
SPINDLE ASM RH Price: $24.99 |
| 5 |
70-4820 |
PIN Price: $10.27 |
| 6 |
532006266 |
WASHER THRUST This part replaces 532124931. Price: $4.99 |
| 6 |
70-4830 |
SPRING Price: $4.21 |
| 7 |
532121748 |
WASHER This part replaces 532171039. Price: $3.99 |
| 7 |
70-4860 |
WASHER Price: $2.87 |
| 8 |
70-4810 |
BODY SUB ASSEMBLY Price: $304.32 |
| 8 |
812000029 |
RING CLIP Price: $3.99 |
| 9 |
532121232 |
CAP.SPINDLE.BLACK Price: $3.99 |
| 9 |
93-3510 |
SPRING-WASHER This part replaces 51-6390. Price: $1.49 |
| 10 |
60-7480 |
DISCONTINUED Price: Call Us |
| 10 |
874781044 |
Bolt, Hex 5/8-11 x 2-3/4 Grade 5 This part replaces 532171415. Price: $3.99 |
| 11 |
532136518 |
TUBE, PIVOT AXLE Price: $7.99 |
| 12 |
583612401 |
LOCKNUT M This part replaces 532171416. Price: $2.99 |
| 13 |
532121749 |
WASHER This part replaces 532171038. Price: $2.99 |
| 14 |
596238701 |
Washers This part replaces 532171029. Price: $3.99 |
| 15 |
60-5210 |
CLAMP Price: $6.50 |
| 15 |
873610600 |
NUT This part replaces 532171175. Price: $2.99 |
| 16 |
51-7400 |
WASHER Price: $1.31 |
| 16 |
532145103 |
SHAFT ASM, STEERING Price: $99.99 |
| 17 |
70-2840 |
BOLT Price: $2.64 |
| 18 |
532175572 |
DRAGLINK, BALL JOINT (3SPG1401 This part replaces 532137155. Price: $64.99 |
| 18 |
70-3180 |
CLAMP Price: $3.41 |
| 19 |
532156011 |
SUPPORT ASM., STEERING VGT Price: $22.99 |
| 19 |
70-3190 |
DISCONTINUED Price: Call Us |
| 20 |
70-2830 |
BOLT Price: $3.08 |
| 21 |
532159945 |
STEERING WHEEL ADAPTOR Price: $6.99 |
| 21 |
70-2820 |
DISCONTINUED Price: Call Us |
| 22 |
532155108 |
KIT.BUSHING.STEERING. This part replaces 532155105. Price: $6.99 |
| 22 |
70-5770 |
LEVER Price: $86.05 |
| 23 |
532152927 |
SCREW.TT.#10-32X.5.3/8.FLANGE This part replaces 532171193. Price: $3.99 |
| 23 |
70-2960 |
NUT Price: $1.24 |
| 24 |
819132411 |
Washer 13/32 x 1-1/20 x 11 Gauge This part replaces 532171388. Price: $2.99 |
| 25 |
596564401 |
Bolts This part replaces 532171427. Price: $3.99 |
| 25 |
70-5700 |
FUEL FEED PUMP Price: $796.28 |
| 26 |
532172092 |
INSERT.CAP.STRG.WH (3 2) (L B) This part replaces 532166626. Price: $12.99 |
| 26 |
70-6180 |
INJECTION PUMP ASM Price: $7,630.82 |
| 27 |
532003366 |
BEARING.STEERING.COLUMN This part replaces 532124937. Price: $3.99 |
| 27 |
70-5060 |
DISCONTINUED Price: Call Us |
| 28 |
51-4910 |
BOLT Price: $3.03 |
| 28 |
817000612 |
SCREW, 3/8-16X3/4 This part replaces 532171154. Price: $3.99 |
| 29 |
532104239 |
BEARING-FLANGE GT Price: $9.99 |
| 29 |
93-3510 |
SPRING-WASHER This part replaces 51-6390. Price: $1.49 |
| 30 |
70-2990 |
WASHER Price: $1.38 |
| 30 |
812000034 |
Ring, Klip Truarc #5304-75 Price: $2.99 |
| 31 |
532138136 |
BUSHING.NYLINER. Price: $8.99 |
| 31 |
60-7280 |
BOLT Price: $2.22 |
| 32 |
51-7250 |
WASHER Price: $1.22 |
| 32 |
819111610 |
WASHER This part replaces 532171425. Price: $4.99 |
| 33 |
596238801 |
WASHER SPRING LOCK WASHER WITH This part replaces 532171213. Price: $2.99 |
| 34 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 532171358. Price: $3.99 |
| 34 |
70-6210 |
FLANGE Price: $165.82 |
| 35 |
531165701 |
SERVICE KIT GEAR.ASM.SECT This part replaces 532138059. Price: $49.99 |
| 36 |
532186799 |
ROD.TIE.NON-ADJUSTABLE This part replaces 532137156. Price: $59.99 |
| 36 |
99-2180 |
HOSE This part replaces 70-3140. Price: $68.21 |
| 37 |
70-3150 |
PIPE Price: $84.54 |
| 37 |
873360600 |
NUT Price: $4.99 |
| 38 |
108-3818 |
FILTER-FUEL This part replaces 70-5730. Price: $10.10 |
| 38 |
532121160 |
JOINT.RH This part replaces 532109850. Price: $19.99 |
| 39 |
70-2980 |
NUT Price: $1.66 |
| 39 |
873700600 |
NUT Price: $2.99 |
| 40 |
532109851 |
JOINT.LH Price: $27.99 |
| 41 |
532155246 |
BRACKET INTERLOCK Price: $4.99 |
| 41 |
70-6120 |
PIPE Price: $335.76 |
| 42 |
596030701 |
Screws This part replaces 532171169. Price: $2.99 |
| 42 |
70-2850 |
BOLT Price: $2.34 |
| 43 |
70-6140 |
WASHER Price: $13.30 |
| 44 |
70-6220 |
DISCONTINUED Price: Call Us |
| 46 |
70-6160 |
NOZZLE ASSEMBLY Price: $1,055.79 |
| 47 |
70-3250 |
BOLT Price: $4.64 |
| 48 |
70-3210 |
PACKING Price: $6.42 |
| 49 |
70-5720 |
BRACKET Price: $152.24 |
| 50 |
70-3200 |
DISCONTINUED Price: Call Us |
| 51 |
70-3240 |
PLUG Price: $4.44 |
