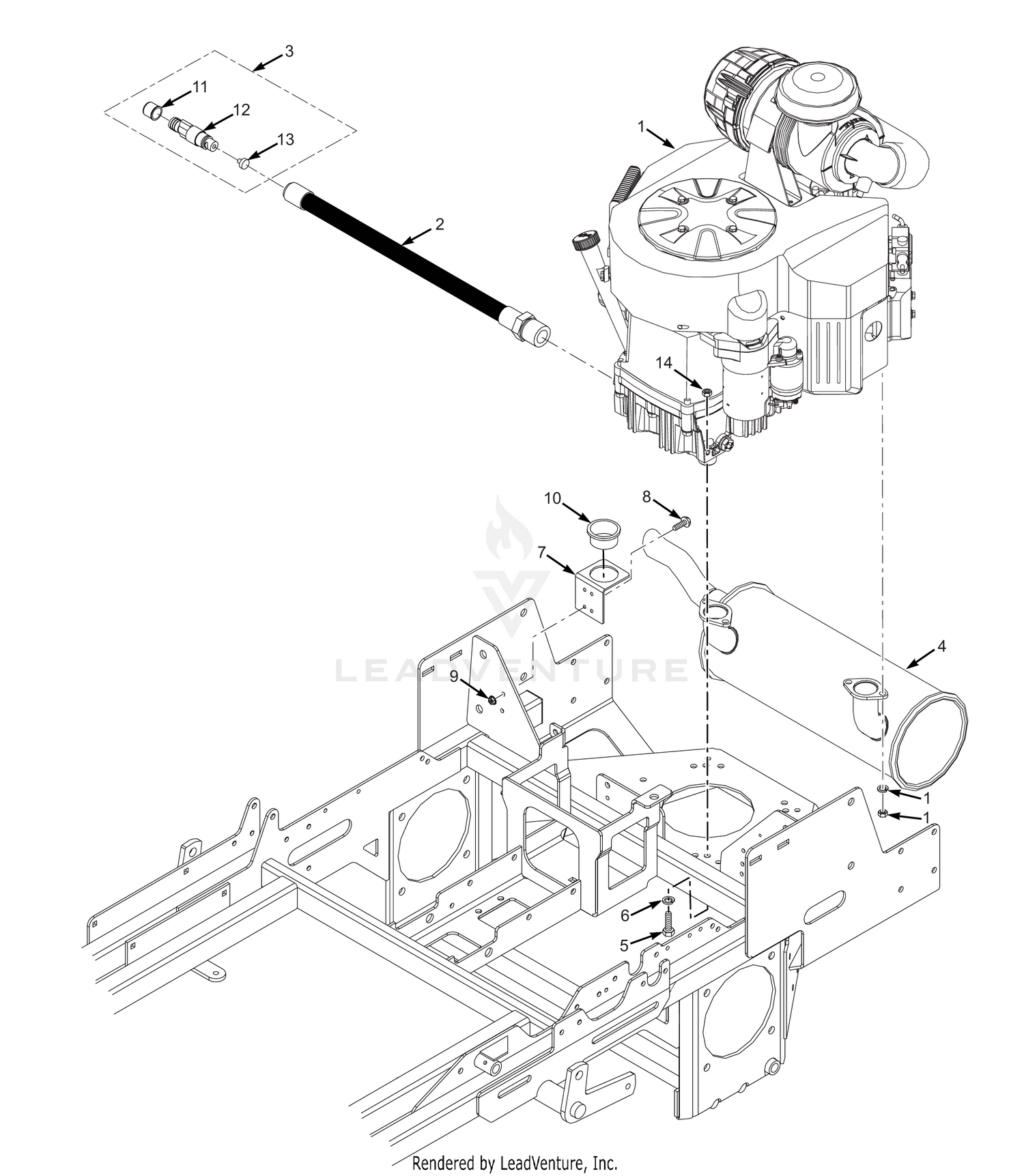

| Ref | Part Number | Description |
|---|
| 3 |
484583 |
Valve Assembly, Oil Drain Price: Call Us |
| 4 |
487293 |
Muffler, Kohler - 38CV-EFI Price: Call Us |
| 5 |
04001-32 |
Bolt, Hex Head 3/8-16 x 1-1/4", Kawasaki FX / FT & FT-EFI Price: Call Us |
| 6 |
04030-04 |
Lockwasher, 3/8” Spring, Kawasaki FX / FT & FT-EFI / B&S 32BV Price: Call Us |
| 7 |
425975-G |
Bracket, Oil Drain Hose (Scag Gold) Price: Call Us |
| 8 |
04010-32 |
SCR,#8-32 X .625 HX WSHR HD SLOTTED Price: Call Us |
| 9 |
04021-17 |
Nut, Elastic Stop #8-32 Price: Call Us |
| 10 |
484617 |
Bushing, Thick Panel Snap Price: Call Us |
| 11 |
484585 |
Cap Price: Call Us |
| 12 |
48603-12 |
O-Ring Price: Call Us |
| 13 |
484586 |
Seal Price: Call Us |
