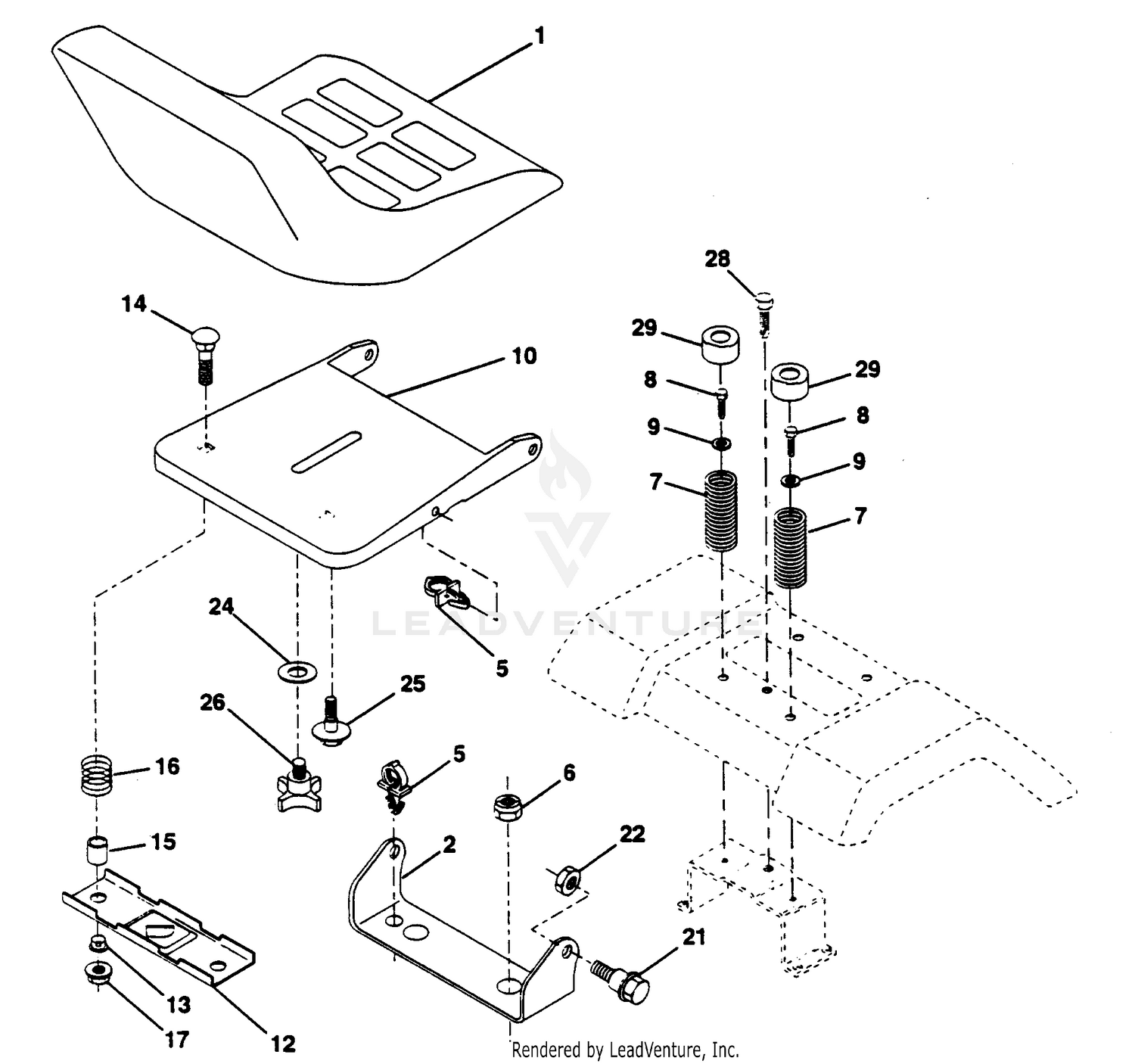

| Ref | Part Number | Description |
|---|
| 1 |
532127440 |
Seat V-560 Gry/blk Std (AYP part number) Price: $139.99 |
| 2 |
532140551 |
Bracket Pivot Seat (AYP part number) Price: $3.99 |
| 5 |
532140407 |
Clip, Push-In (AYP part number) Price: $3.99 |
| 6 |
873680600 |
LOCKNUT This part replaces 873800600. Price: $1.99 |
| 7 |
587613301 |
SPRING.COMPRESSION.SEAT.BLACK This part replaces 532124181. Price: $2.99 |
| 8 |
817490508 |
Screw Hwsh Thdrol 5/16-18 x 1/2 (AYP part number) Price: $3.99 |
| 9 |
819131612 |
Washer 13/32 X 1 X 12 Ga (AYP part number) This part replaces 819131614. Price: $3.99 |
| 10 |
532195530 |
PAN.ASM.SEAT.1SLOT This part replaces 532140552. Price: $14.99 |
| 12 |
532174648 |
BRKT.MNTNG.SWITCH.SEAT.BLACK This part replaces 532121246. Price: $4.99 |
| 13 |
532121248 |
Bushing Snap Blk Nyl 50 Id (AYP part number) Price: $3.99 |
| 14 |
872050411 |
Bolt Rdhd Sht Nk 1/4-20x1-3/8 Price: $2.99 |
| 15 |
532121249 |
Spacer Split 28x 88 Yel Zinc (AYP part number) Price: $3.99 |
| 16 |
532123740 |
Spring Cprsn 1 310 Blk Pnt (AYP part number) Price: $3.99 |
| 17 |
873680400 |
NUT.CROWNLOCK.1/4 This part replaces 532123976. Price: $2.99 |
| 21 |
532139888 |
Bolt Shoulder 5/16-18 Unc Blkz (AYP part number) Price: $2.99 |
| 22 |
873800500 |
NUT.71038.31-18.HEX.NYLOCK This part replaces 873680500. Price: $2.99 |
| 24 |
819171912 |
Washer 17/32 X 1-3/16 X 12 Ga (AYP part number) Price: $3.99 |
| 25 |
532127018 |
Bolt Shoulder 5/16-18 X 62 (AYP part number) Price: $3.99 |
| 26 |
532166369 |
KNOB.SEAT.ADJ.WINGNUT This part replaces 532120068. Price: $6.99 |
| 28 |
817490608 |
Screw Thdrol 3/8-36 x 1/2 (AYP part number) Price: $3.99 |
