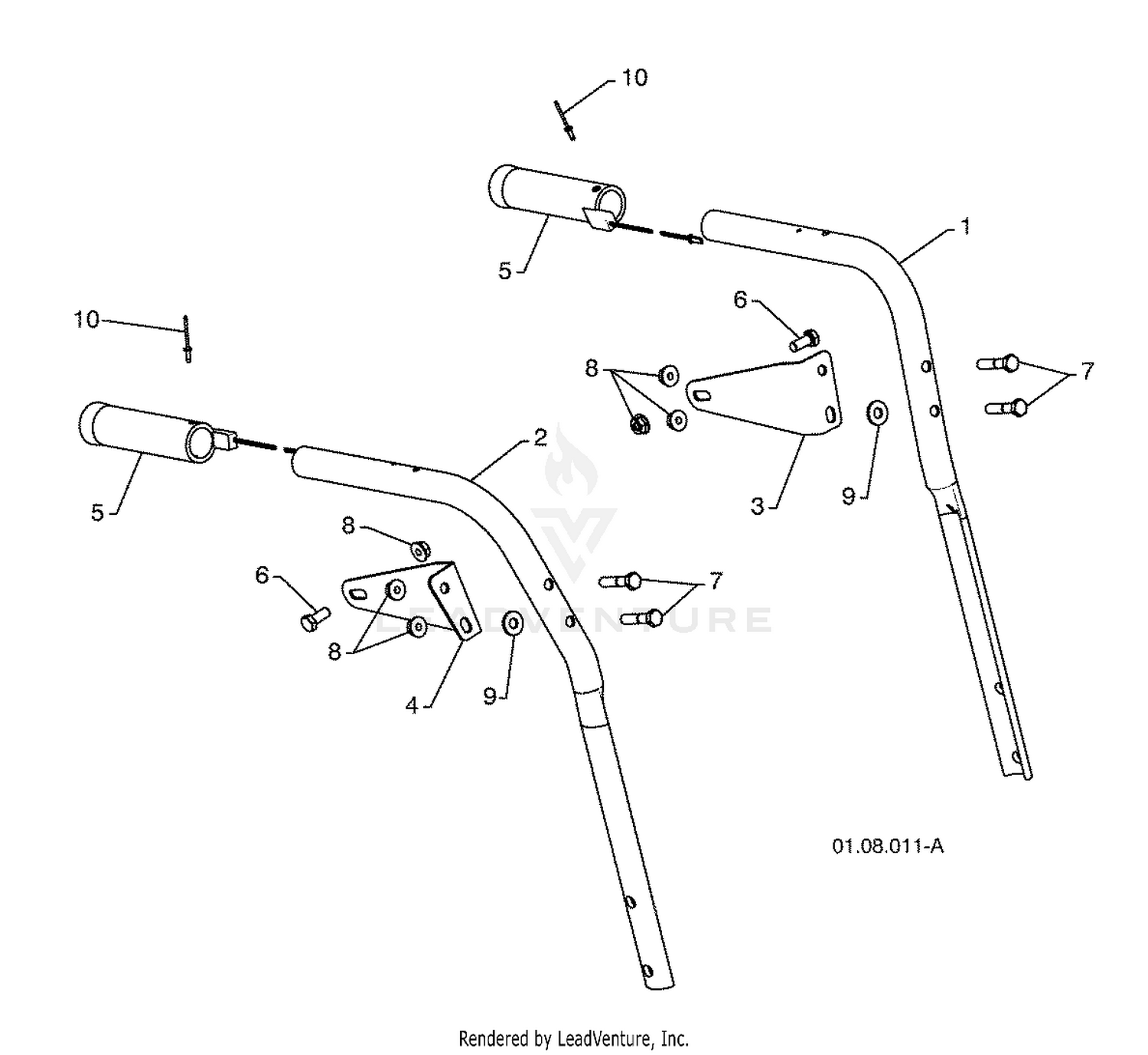

| Ref | Part Number | Description |
|---|
| 1 |
532421708 |
TUBE.HANDLE.PLOW.LH.GREY Price: $79.99 |
| 1 |
98-9579 |
BAND-PIPE Price: $5.22 |
| 2 |
532421709 |
TUBE.HANDLE.PLOW.RH.GREY Price: $34.99 |
| 2 |
98-9578 |
PIPE-RETURN, WATER Price: $11.28 |
| 3 |
532196944 |
BRKT.PANEL.LH.INT Price: $8.99 |
| 3 |
98-9713 |
WATER FLANGE ASM Price: $199.09 |
| 4 |
532196943 |
BRKT.PANEL.RH.INT Price: $8.99 |
| 5 |
532414515 |
GRIP.HANDLE.HEATED Price: $54.99 |
| 5 |
98-9719 |
THERMOSWITCH Price: $98.79 |
| 6 |
596030501 |
SCREW HEXAGON HEAD SCREW 5/16- This part replaces 874780512. Price: $3.99 |
| 7 |
596582201 |
Bolts This part replaces 874780524. Price: $2.99 |
| 8 |
532751153 |
NUT.LOCK.5/16-18 Price: $2.99 |
| 9 |
532155415 |
WASHER.20X8.5 Price: $4.99 |
| 9 |
98-7777 |
BOLT Price: $1.56 |
| 10 |
98-9471 |
COVER-THERMOSTAT Price: $34.62 |
| 11 |
105-3748 |
GASKET-THERMOSTAT This part replaces 98-7776. Price: $4.31 |
| 12 |
98-7778 |
THERMOSTAT ASM Price: $61.89 |
| 13 |
98-9638 |
GASKET-FLANGE, WATER Price: $3.74 |
| 14 |
98-7692 |
BOLT Price: $0.92 |
| 15 |
98-9356 |
BOLT Price: $2.06 |
