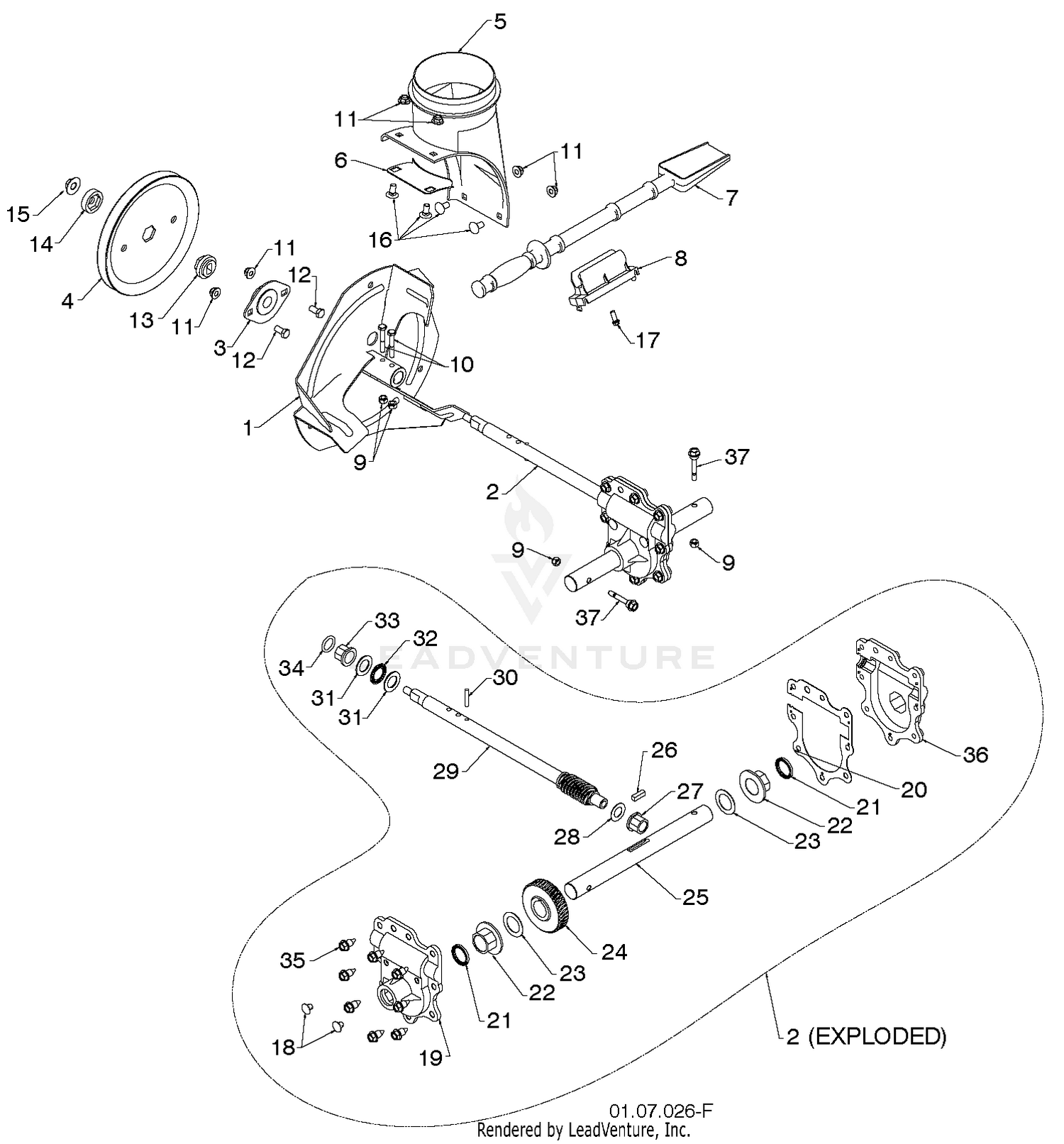

| Ref | Part Number | Description |
|---|
| 1 |
28-0650 |
SHAFT-AXLE, FLANGED Price: $1,130.23 |
| 1 |
532184105 |
IMPELLER ASSY Price: $49.99 |
| 2 |
532429659 |
KIT.GEARBOX.SNO This part replaces 532427148. Price: $249.99 |
| 2 |
99-6969 |
SEAL-OIL, WHEEL END This part replaces 21-8330. Price: $14.71 |
| 3 |
21-8180 |
BEARING ASM Price: $65.11 |
| 3 |
532188909 |
BEARING FLANGE Price: $12.99 |
| 4 |
24-9180 |
STRUT AND LEVER ASM Price: $86.76 |
| 4 |
532427146 |
PULLEY.FLANGE.IMPELLER Price: $17.99 |
| 5 |
21-9450 |
SHIELD-DUST Price: $45.14 |
| 5 |
585056901 |
CHUTE.DISCHARGE.BASE This part replaces 532442438. Price: $6.99 |
| 6 |
21-9410 |
SEE P.B.#734A Price: Call Us |
| 6 |
532184095 |
BRACKET, CORNER DISCHARGE Price: $2.99 |
| 7 |
21-9430 |
SPRING-RETURN, RH Price: $19.96 |
| 7 |
532192199 |
CLEAN OUT TOOL Price: $19.99 |
| 8 |
28-0670 |
SEAL-GREASE Price: $19.74 |
| 8 |
532405400 |
CLIP.CLEANOUT.TOOL Price: $2.99 |
| 9 |
21-9470 |
SEE PB #747 Price: Call Us |
| 9 |
539976978 |
NUT 1/4-20 NYLOC This part replaces 873800400. Price: $1.99 |
| 10 |
21-9460 |
RETAINER-LEVER, BRAKE Price: $2.18 |
| 10 |
874780426 |
SCREW.HEX.HD1/4-20X Price: $3.99 |
| 11 |
242-34 |
STUD-DRIVE Price: $11.61 |
| 11 |
532427942 |
NUTNYLOK.FLRANGE.5/16-18 Price: $2.99 |
| 12 |
21-8360 |
CLIP-RETAINING Price: $1.29 |
| 12 |
532163183 |
BOLT, HEX HEAD 5/16-18 Price: $2.99 |
| 13 |
28-0680-03 |
DRUM-BRAKE This part replaces 28-0680. Price: $358.84 |
| 13 |
532427145 |
HUB.IMP.PULLEY.D-SHAFT Price: $3.99 |
| 14 |
21-9440 |
SPRING-SCREW, ADJUSTING Price: $11.92 |
| 14 |
532427154 |
SLEEVE.IMP.PULLEY.D-SHAFT Price: $2.99 |
| 15 |
21-9390 |
SOCKET-SCREW, ADJUSTING Price: $5.56 |
| 15 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 532145212. Price: $2.99 |
| 16 |
21-9370 |
SCREW-ADJUSTING Price: $18.80 |
| 16 |
532180355 |
BOLT.CARRIAGE.5/16-18X Price: $3.99 |
| 17 |
21-9380 |
NUT-PIVOT Price: $26.77 |
| 17 |
532194189 |
SCREW.HWH.13-16-5.8.BZP Price: $3.99 |
| 18 |
32152-5 |
NUT-HEX Price: $0.54 |
| 18 |
532086447 |
Plug (AYP part number) This part replaces 532407760. Price: $3.99 |
| 19 |
21-9420 |
SPRING-RETURN, LH Price: $19.96 |
| 20 |
21-8320 |
REFER TO(PB#807 OR MISC COMM SB#50) Price: Call Us |
| 20 |
532427345 |
GASKET.GEAR.BOX Price: $3.99 |
| 21 |
24-8840 |
RING-RETAINING, WHEEL BEARING Price: $37.15 |
| 21 |
532174698 |
SEAL, OIL This part replaces 532407770. Price: $3.99 |
| 22 |
532174701 |
BUSHING FLANGE 1" This part replaces 532407762. Price: $27.99 |
| 23 |
532007396 |
Thrust Bearing Race (AYP part number) This part replaces 532174697. Price: $3.99 |
| 24 |
532407763 |
WORM GEAR Price: $44.99 |
| 25 |
532174657 |
SHAFT, AUGER This part replaces 532407764. Price: $39.99 |
| 26 |
532189282 |
KEY, SQUARE 1/4 X .875 Price: $3.99 |
| 27 |
532174686 |
BUSHING.FLANGE.(.625X.75) This part replaces 532407758. Price: $19.99 |
| 28 |
532174683 |
WASHER, THRUST 5/8 Price: $3.99 |
| 29 |
532427147 |
SHAFT.IMPELLER.D-SHAFT Price: $84.99 |
| 30 |
532001572 |
Pin, Roll, 3/16 x 1 (AYP part number) This part replaces 532184205. Price: $3.99 |
| 31 |
532174681 |
WASHER, THRUST 3/4 Price: $9.99 |
| 32 |
532174684 |
BEARING TRUST 3/4 NTA-1220 Price: $5.99 |
| 33 |
532407769 |
BUSHING, FLANGE 3/4 Price: $3.99 |
| 34 |
532407768 |
O-RING Price: $3.99 |
| 35 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 532407767. Price: $2.99 |
| 36 |
532427317 |
GEAR.BOX.COVER.LEFT.SIDE Price: $29.99 |
