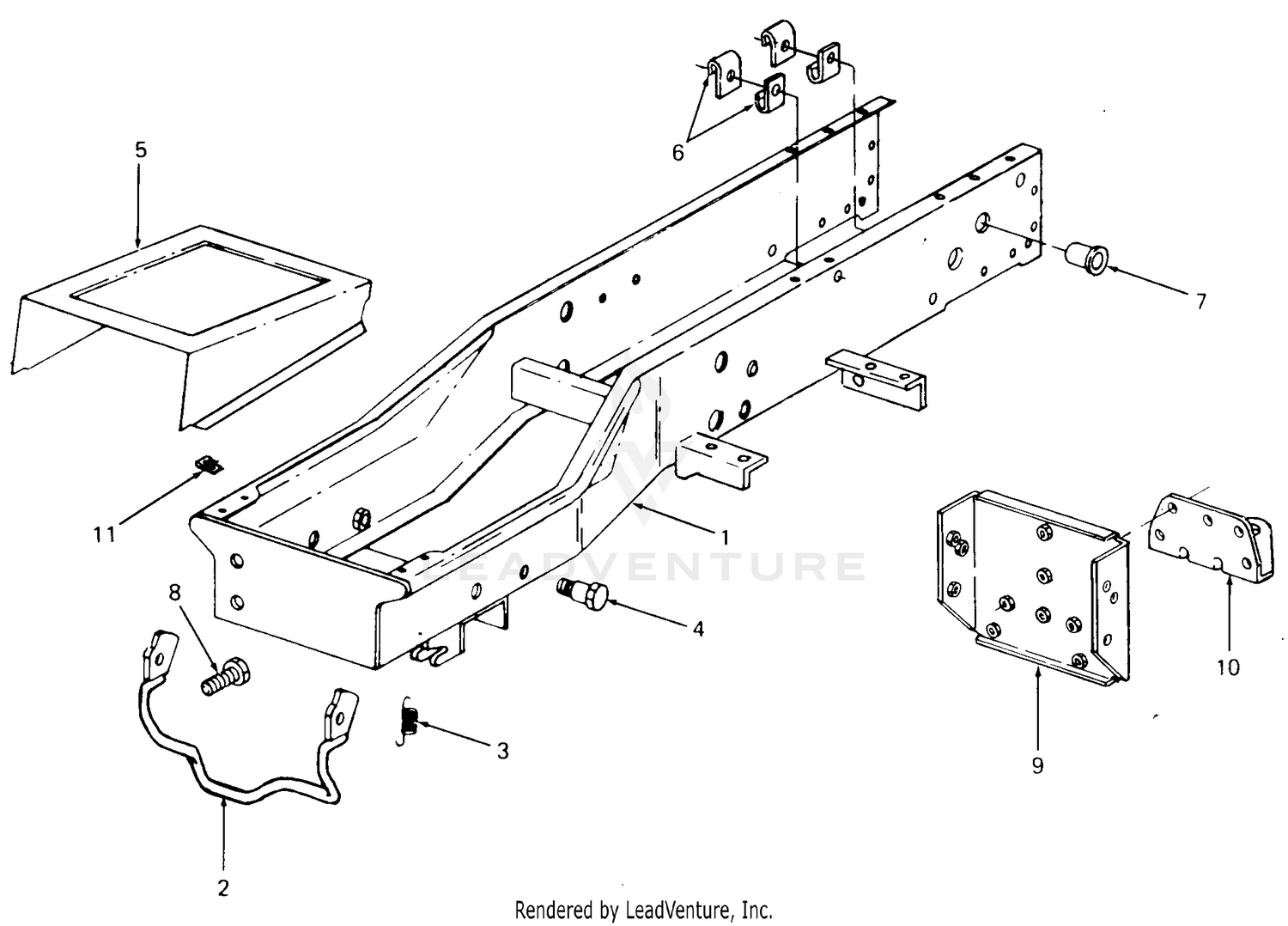

| Ref | Part Number | Description |
|---|
| 1 |
703-1929 |
Frame Assy Price: Call Us |
| 1 |
80-4860 |
PIN-CLEVIS Price: $6.13 |
| 2 |
589818702 |
MUFFLER.ASM.TWIN.MNTG.BRACKET This part replaces 532445962. Price: $44.99 |
| 2 |
703-1726 |
LATCH ASSEMBLY Not Available Price: |
| 2 |
75-3580 |
PLATE-SEAT Price: $213.06 |
| 3 |
75-3530 |
SPRING-COMPRESSION Price: $31.98 |
| 3 |
932-3002 |
Extension Spring, .51 x 2.12 This part replaces 732-3002. Price: $7.93 |
| 4 |
3256-5 |
WASHER-FLAT Price: $0.27 |
| 4 |
738-3001 |
BOLT-SHOUL Not Available Price: |
| 5 |
3256-24 |
WASHER-FLAT Price: $0.28 |
| 5 |
759-3532 |
FRAME COVER W/DECAL Not Available Price: |
| 6 |
3285-19 |
PIN-GROOVE This part replaces 75-3540. Price: $1.79 |
| 6 |
726-3008 |
Clip, Cable Price: $4.26 |
| 7 |
723-3042 |
SNAP BUSHING 7/8 Not Available Price: |
| 7 |
75-3550 |
BUMPER-SEAT Price: $18.48 |
| 8 |
710-3182 |
SCREW 1/2-20X1.0 GR5 Not Available Price: |
| 8 |
76-2940 |
BUMPER Price: $9.73 |
| 9 |
596501502 |
Keepers This part replaces 584908001. Price: $9.99 |
| 9 |
703-1943 |
PLATE ASSY, HITCH Not Available Price: |
| 9 |
76-1920 |
SLEEVE-BEARING Price: $22.50 |
| 10 |
66-8610 |
DISCONTINUED Price: Call Us |
| 10 |
703-0904-0498 |
DRAW BAR (CUB YELLOW) Not Available This part replaces 703-0904. Price: |
| 11 |
587241401 |
CLUTCH.OGURA.5.0PD.GT1.5A-EH01 Price: $229.99 |
| 11 |
66-8560 |
NUT-PUSH Price: $5.97 |
| 12 |
532194343 |
PULLEY ENGINE Price: $39.99 |
| 12 |
76-1910 |
DISCONTINUED Price: Call Us |
| 13 |
82-9060 |
DISCONTINUED Price: Call Us |
| 14 |
76-1940 |
SPRING-EXTENSION Price: $66.03 |
| 15 |
66-9290 |
SPACER-SUSPENSION Price: $3.60 |
| 16 |
108-6703 |
ADJUSTER-SEAT This part replaces 66-8530. Price: $183.47 |
| 17 |
66-8520 |
BUMPER-DOWNSTOP Price: $37.56 |
| 18 |
76-1960 |
KNOB KIT This part replaces 77-2870. Price: $357.33 |
| 19 |
106-1031 |
TENSION ADJUSTER KNOB ASM This part replaces 76-1930. Price: $68.93 |
| 20 |
3256-46 |
WASHER-FLAT Price: $5.77 |
| 20 |
587242701 |
THROTTLE.PRO.RSTART. 38 Price: $27.99 |
| 21 |
32128-26 |
NUT-FLANGE Price: $5.89 |
| 21 |
596321701 |
Screws This part replaces 532416358. Price: $2.99 |
| 22 |
3296-44 |
NUT-LOCK, NI Price: $2.46 |
| 23 |
75-3480 |
FRAME-UPPER Price: $323.32 |
| 24 |
3256-26 |
WASHER-FLAT Price: $0.39 |
| 25 |
3253-6 |
WASHER-LOCK Price: $0.39 |
| 26 |
75-3510 |
BOLT-SHOULDER Price: $14.55 |
| 27 |
93-3164 |
CAP Price: $11.64 |
| 28 |
587044864 |
HOSE 1/4" LOW PERMEATION FUEL This part replaces 532401135. Price: $17.99 |
| 28 |
93-3163 |
SPRING Price: $26.01 |
| 29 |
532137180 |
KIT.SPARK ARRESTOR 794945 B&S Price: $109.99 |
| 29 |
93-3165 |
BRACKET Price: $37.47 |
| 30 |
322-6 |
SCREW-HH Price: $0.45 |
| 31 |
3253-33 |
WASHER-LOCK Price: $1.19 |
| 37 |
532123487 |
HOSE CLAMP Price: $3.99 |
| 41 |
532126197 |
WASHER Price: $6.99 |
| 42 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 45 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873510400. Price: $3.99 |
| 69 |
532165391 |
GASKET.MUFFLER Price: $9.99 |
| 79 |
596134202 |
Screws This part replaces 532183906. Price: $2.99 |
| 81 |
532148456 |
TUBE, DRAIN OIL ASM. Price: $5.99 |
| 82 |
532428287 |
VALUE.OIL.DRAIN Price: $14.99 |
| 84 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 85 |
581636201 |
BOLT.HEX.7/16-20X3.0XGR5 Price: $4.99 |
| 90 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 91 |
532187495 |
BUSHING.1.375OD Price: $4.99 |
| 102 |
532428867 |
BOLT.HEX.HD.WASHER.5/16-18X.75 This part replaces 817000512. Price: $4.99 |
| 116 |
539132624 |
KNOB - SHIFT Price: $6.99 |
| 117 |
532420828 |
VALVE FUEL RESERVE Price: $27.99 |
