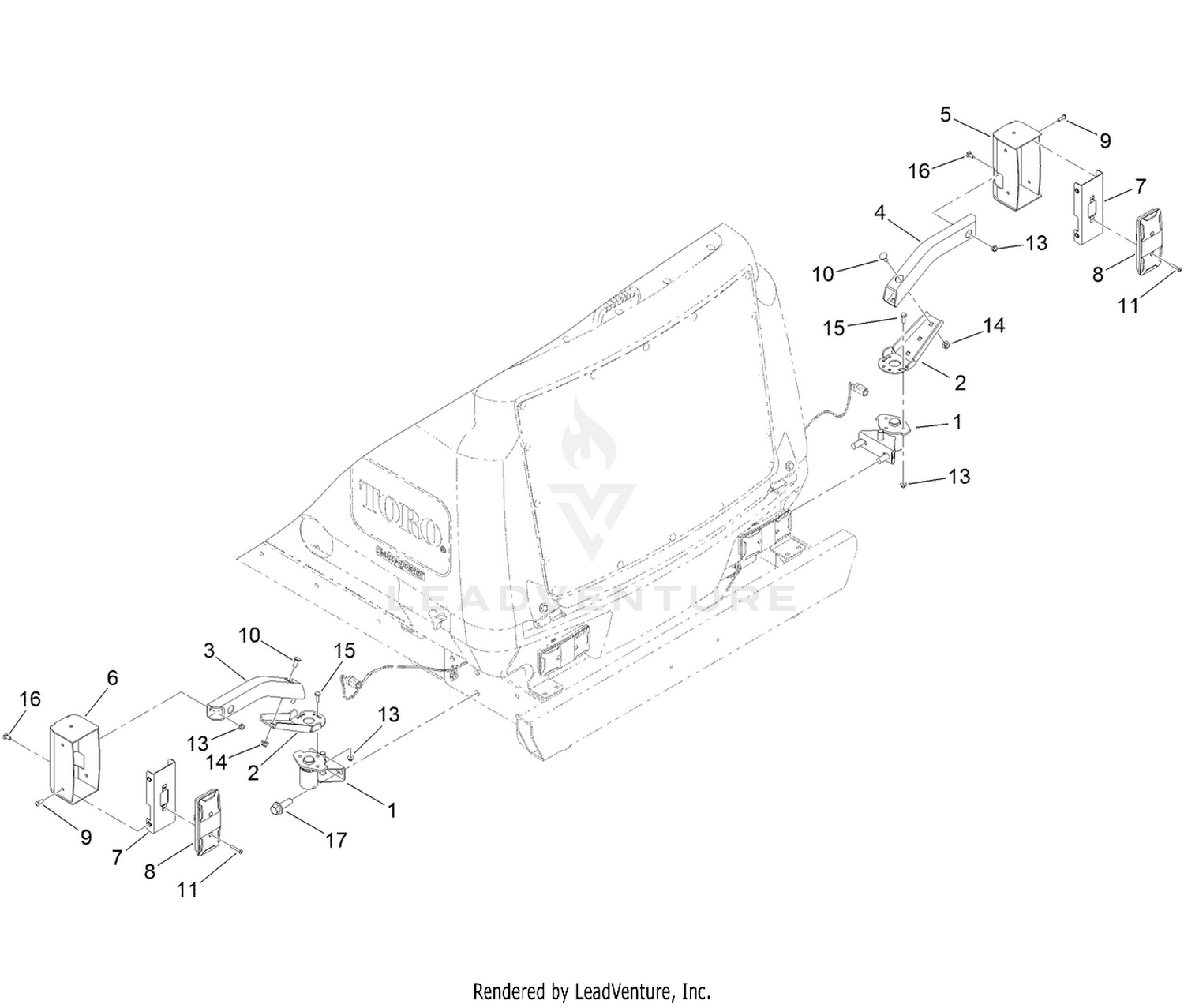

Tail Light Assembly
Parts (15)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 140-6882 | PIVOT BRACKET ASM Price: $273.29 |
| 2 | 144-3251-03 | MOUNT-LIGHT Price: $42.30 |
| 3 | 140-6705-03 | TUBE-MOUNT, LH Price: $47.29 |
| 4 | 140-6706-03 | TUBE-MOUNT, RH Price: $47.29 |
| 5 | 140-6829-03 | HOUSING-LIGHT, RH Price: $36.20 |
| 6 | 140-6828-03 | HOUSING-LIGHT, LH Price: $36.20 |
| 7 | 140-6835 | INNER MOUNT ASM Price: $48.12 |
| 8 | 139-2071 | LIGHT-REAR TAIL/STOP/TURN Price: $49.03 |
| 9 | 3274-69 | SCREW-HSBH Price: $0.43 |
| 10 | 3230-23 | SCREW-CARR Price: $0.89 |
| 11 | 3250-23 | SCREW-PPH Price: $2.49 |
| 13 | 104-7201 | NUT-HF Price: $0.69 |
| 14 | 104-8300 | NUT-HF, NI Price: $0.39 |
| 15 | 321-4 | SCREW-HH Price: $0.99 |
| 16 | 3229-11 | SCREW-CARR Price: $0.99 |
