Home / OPE / Riding Products / 650D, Reelmaster 3240-D Traction Unit, 2009 (SN 290000001-290999999) / Centre Arm

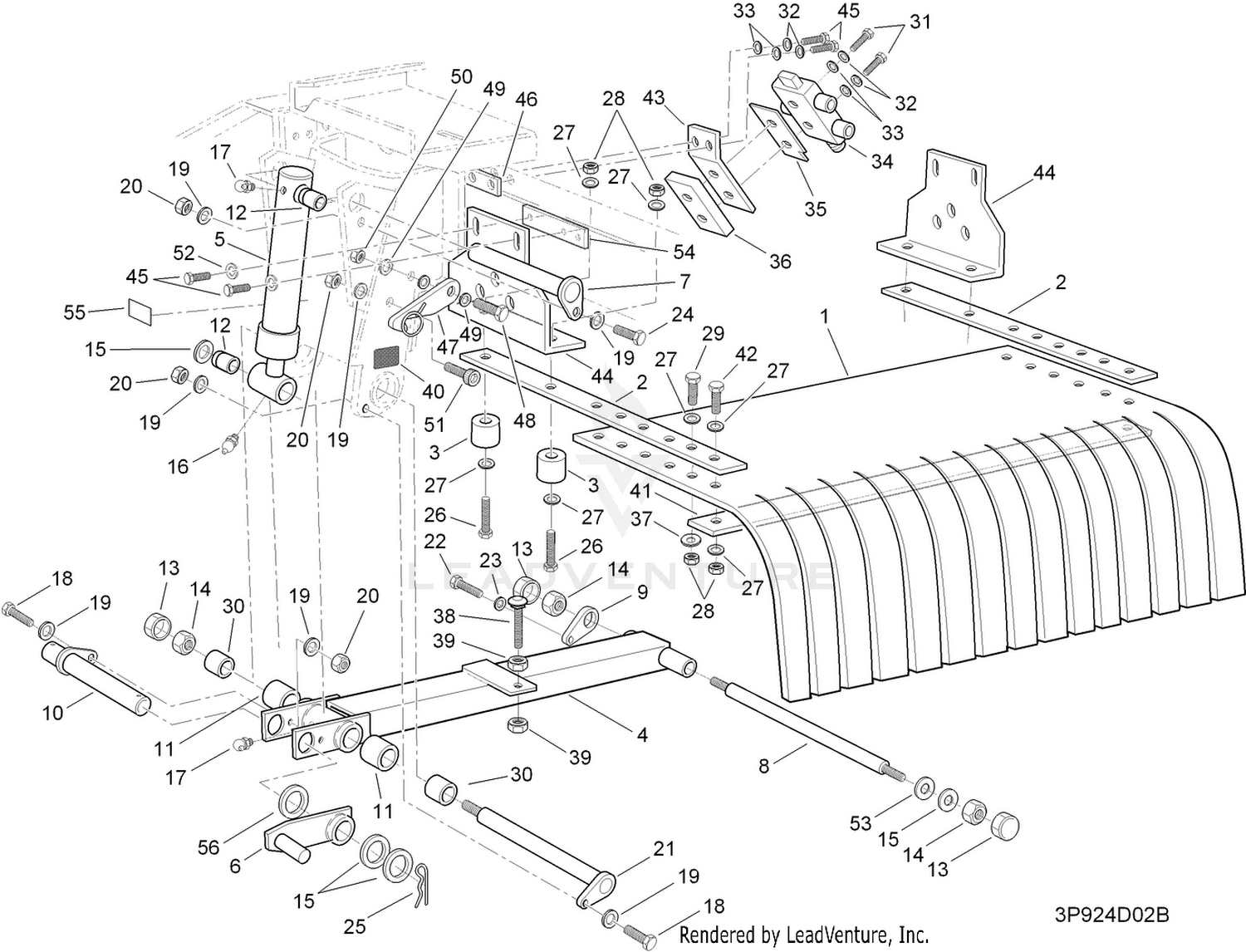

Centre Arm

Centre Arm

Parts (56)

RefPart NumberDescription
1 924406 DEFLECTOR CENTRE Price: $106.28
2 924405W BRACKET CENTRE DEFLECTOR Price: $43.30
3 61-07-003 RUBBER BUFFER Price: $9.55
4 910465W ARM CENTRE W/A Price: $817.49
5 910109W CYLINDER LIFT Price: $275.44
6 910445C CENTRE HEAD LATCH Price: $138.91
7 910510 PIN CYLINDER RAM Price: $46.84
8 65-05-120 HEAD PIVOT PIN (30/353MM) Price: $32.70
8 65-05-127 HEAD PIVOT PIN MK3 10"HD (400MM) Price: $38.34
9 63-01-185W RETAINER Price: $48.24
10 910518 CENTRE HEAD ROD PIN Price: $75.78
11 876066 BUSH Price: $8.34
12 25-07-007 TENSION BUSH 30/25*50 LG Price: $14.47
13 10-11-100 NUT CAP M24 Price: $1.97
14 ZNN1X000U HEX.NUT M24 NYLOC Price: $5.40
15 09555 WASHER M24 PLAIN Price: $1.31
16 10-11-017 GREASE NIPPLE 1/8BSP STR Price: $1.44
17 63-07-027 GREASE NIPPLE 1/8BSP 9OD Price: $1.55
18 09394 BOLT M10 X 35 Price: $1.40
19 09479 WASHER M10 X 21 X 1.45 THK (P) Price: $1.39
20 09480 WASHER M10 SC SPRING Price: $1.36
21 910513 PIN CENTRE ARM PIVOT W\A Price: $86.70
22 09415 BOLT M12 X 30 GD. 8.8 PLATED This part replaces ZDH1L030U. Price: $1.40
23 09599 WASHER Price: $1.42
24 09392 SETSCREW M10 X 30 HEX HD Price: $1.31
25 63-07-020 RCLIP 4MM DIA Price: $1.35
26 ZBH1F040U HEX HD BOLT M6*40 Price: $1.26
27 09472 WASHER-PLAIN Price: $1.25
28 09438 NUT M6 X 1.5 PLAIN Price: $1.39
29 09363 SETSCREW M6 X 20 Price: $1.31
30 74-07-028 BUSH DEVOL 28DIAX25X20 Price: $8.10
31 ZBH1H050U HEX.HD BOLT M8*50 Price: $1.38
32 03469 WASHER M8 SC SPRING Price: $1.40
33 09475 WASHER M8 X 17 X 1.6 ZN & PASS Price: $1.40
34 953601 VALVE 3 PORT DIVERTER Price: $236.37
35 70-01-722 PLATE VALVE POSITION Price: $8.99
36 910217 BRACKET - DIVERTER ADJUSTER Price: $25.01
37 09263 WASHER 1/4 X 7/8 X .08" THK Price: $1.34
38 ZDH1H060U SETSCREW - HEX HEAD Price: $1.30
39 09449 NUT M10 PLAIN Price: $1.34
40 70-13-077 DECAL - SAFETY LATCHES Price: $4.59
41 924128W PLATE CENTRE DEFLECTOR STRUT Price: $42.27
42 09364 SETSCREW M6 X 25 This part replaces ZDH1F025U. Price: $1.34
43 910407W PLATE CENTRE DIVERTER BRACKET Price: $38.13
44 910433W PLATE BUMP STOP BRACKET Price: $28.54
45 03162 STEEL BOLT Price: $1.39
46 924407 PLATE SECURING Price: $37.40
47 994355C LATCH W/A RH This part replaces 924130C. Price: $45.95
48 63-11-010 HEX HD.BOLT M12*40HT/10.9 Price: $6.59
49 HY09485 WASHER M12 PLAIN Price: $1.40
50 ZNN1L000U HEX.NUT NYLOC M12 Price: $1.40
51 ZCS1J020U SOC HD CAP SCW. M10*20 Price: $1.31
52 09267 WASHER 5/16 X 7/8 X 15G GALV Price: $1.39
53 09298 WASHER 1.1/8 X 1.5/8 X 15G Price: $1.69
54 924407 PLATE SECURING Price: $37.40
55 950832 DECAL Price: $5.78
