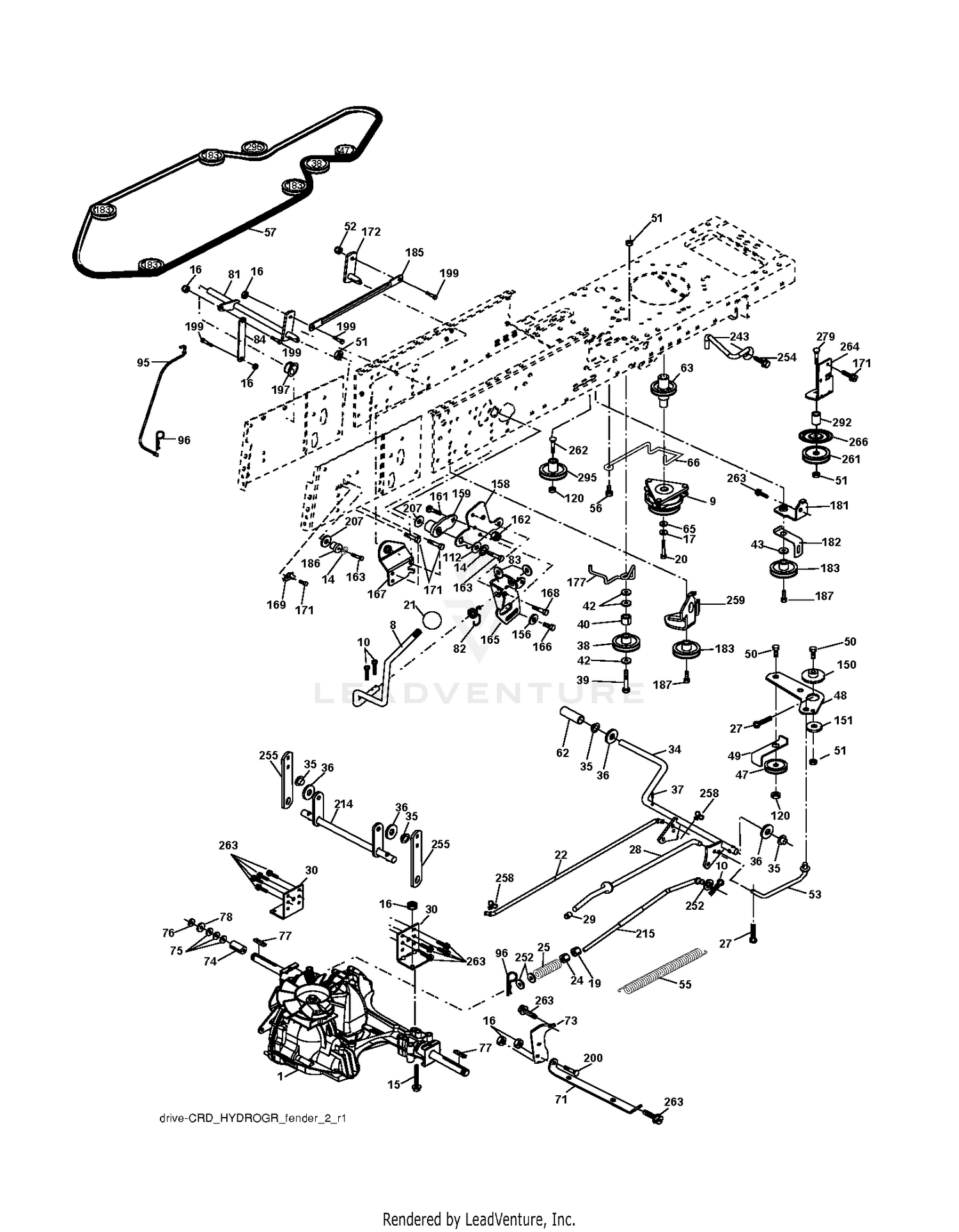

| Ref | Part Number | Description |
|---|
| 1 |
32128-23 |
NUT-HF Price: $1.51 |
| 3 |
32153-5 |
NUT-HEX Price: $1.59 |
| 4 |
3290-355 |
PIN-HAIR Price: $2.09 |
| 5 |
47-3800-01 |
STRAP-LOCKING This part replaces 47-3800. Price: $156.60 |
| 6 |
325-14 |
SCREW-HH Price: $2.64 |
| 7 |
32128-20 |
NUT-HF Price: $0.99 |
| 8 |
47-3480-03 |
SMV BRKT This part replaces 47-3480. Price: $36.01 |
| 9 |
38-6200 |
SOCKET-SLOW MOVING VEHICLE Price: $21.04 |
| 9 |
532414337 |
CLUTCH KIT This part replaces 532198143. Price: $249.99 |
| 10 |
3230-1 |
BOLT-CARR Price: $1.49 |
| 10 |
596029601 |
Pins This part replaces 876020416. Price: $1.99 |
| 11 |
3-2196-01 |
SHEAVE This part replaces 3-2196. Price: $141.72 |
| 12 |
3-0136-01 |
CHAIN KEEPER ASM This part replaces 3-0136. Price: $51.92 |
| 13 |
325-18 |
SCREW-HH Price: $3.19 |
| 14 |
20-4390 |
SPACER Price: $12.54 |
| 14 |
596029801 |
WASHER SPRING LOCK WASHER WITH This part replaces 810040400. Price: $2.99 |
| 15 |
47-3990 |
DECAL Price: $19.68 |
| 15 |
595316601 |
Bolts This part replaces 874490544. Price: $3.99 |
| 16 |
115-4947-01 |
HYDRAULIC CYLINDER ASM (10.69 STROKE) This part replaces 22-7520. Price: $880.23 |
| 16 |
596040501 |
Hardware This part replaces 873800500. Price: $2.99 |
| 17 |
322-3 |
SCREW-HH Price: $0.79 |
| 17 |
532126197 |
WASHER Price: $6.99 |
| 18 |
3253-4 |
WASHER-LOCK Price: $0.25 |
| 19 |
37-2760-01 |
PIN-LIFT, BAIL This part replaces 37-2760. Price: $89.10 |
| 19 |
596322601 |
Nuts This part replaces 873800600. Price: $2.99 |
| 20 |
501606501 |
BOLT.HEX.7/16-20X4.GR5.1.5BLUE This part replaces 532173937. Price: $2.99 |
| 20 |
8-1280-01 |
REAR CROSS CHANNEL ASM This part replaces 8-1280. Price: $998.35 |
| 21 |
3296-50 |
NUT-LOCK, NI Price: $2.68 |
| 21 |
532121274 |
KNOB.DUCKHEAD.1/2 Price: $8.99 |
| 22 |
47-3840 |
ELBOW-ORIFICE (.094) Price: $37.03 |
| 22 |
583070201 |
ROD.BRAKE.MAIN.CRD This part replaces 532175607. Price: $22.99 |
| 23 |
49-8170 |
SPACER Price: $27.34 |
| 24 |
3290-216 |
WASHER Price: $3.83 |
| 24 |
873220600 |
NUT.HEX.3/8-16UNC This part replaces 873350600. Price: $4.99 |
| 25 |
3234-22 |
SCREW-HHF Price: $2.69 |
| 25 |
583201301 |
SPRING.ROD.BRAKE.GR This part replaces 532192036. Price: $3.99 |
| 26 |
325-6 |
SCREW-HH Price: $1.42 |
| 27 |
3272-24 |
PIN-COTTER Price: $0.54 |
| 27 |
596029501 |
Pins This part replaces 876020412. Price: $2.99 |
| 28 |
3-0144 |
SHAFT Price: $53.89 |
| 28 |
532175765 |
ROD, PARKING BRAKE Price: $4.99 |
| 29 |
532071673 |
PLUNGER CAP This part replaces 532124236. Price: $4.99 |
| 29 |
65-2710 |
PLATE-INFORMATION Price: $19.40 |
| 30 |
3290-274 |
RIVET-POP Price: $0.25 |
| 30 |
531149601 |
SERVICE KIT BRACKET BRKT This part replaces 532169592. Price: $8.99 |
| 34 |
532175578 |
SHAFT, FOOT PEDAL Price: $27.99 |
| 35 |
532120183 |
BEARING.NYLON Price: $5.99 |
| 36 |
596933401 |
Washers This part replaces 819211616. Price: $2.99 |
| 37 |
532001572 |
PIN.ROLL.3/16 X 1" This part replaces 532124963. Price: $3.99 |
| 38 |
532165936 |
PULLEY.FLAT Price: $22.99 |
| 39 |
874760644 |
BOLT Price: $3.99 |
| 40 |
532124965 |
SPACER T Price: $3.99 |
| 42 |
596134901 |
GSPH This part replaces 819131312. Price: $2.99 |
| 43 |
596039901 |
Washers This part replaces 819111012. Price: $2.99 |
| 47 |
532139245 |
PULLEY IDLER This part replaces 532127783. Price: $32.99 |
| 48 |
532154407 |
BELLCRANK, CLUTCH Price: $5.99 |
| 49 |
531151801 |
SERVICE KIT RETAIN BELT RETAIN This part replaces 532123205. Price: $3.99 |
| 50 |
596136101 |
GSPW Bolts This part replaces 872110612. Price: $2.99 |
| 51 |
596322601 |
Nuts This part replaces 873680600. Price: $2.99 |
| 52 |
596040501 |
Hardware This part replaces 873680500. Price: $2.99 |
| 53 |
532199652 |
LINK.CLUTCH.7.66.2005 Price: $8.99 |
| 55 |
532105709 |
SPRING, RETURN LT Price: $9.99 |
| 56 |
817060620 |
SCREW.3/8-16 Price: $5.99 |
| 57 |
547543401 |
V-BELT TRACTION DRIVE This part replaces 532170140. Price: $49.99 |
| 62 |
510089501 |
PAD, FOOT PEDAL This part replaces 532124872. Price: $4.99 |
| 63 |
532180397 |
PULLEY.ENGINE.CVX.LT Price: $27.99 |
| 65 |
596238901 |
Washers This part replaces 810040700. Price: $2.99 |
| 66 |
531151001 |
SERVICE KIT BELT KEEPER This part replaces 532154778. Price: $6.99 |
| 71 |
532169183 |
STRAP TORQUE LH HYDRO Price: $4.99 |
| 73 |
532169182 |
STRAP TORQUE RH HYDRO Price: $14.99 |
| 74 |
532137057 |
SPACER AXLE Price: $5.99 |
| 75 |
532121749 |
WASHER Price: $2.99 |
| 76 |
812000001 |
E-RING LT Price: $3.99 |
| 77 |
532123583 |
SQUARE KEY Price: $3.99 |
| 78 |
532121748 |
WASHER Price: $3.99 |
| 81 |
532170006 |
ASM.CROSS.SHAFT.REAR.CRD.0510 Price: $24.99 |
| 82 |
532165711 |
SHIFT SPRING Price: $5.99 |
| 83 |
734117771 |
BUSHING This part replaces 819171216. Price: $3.99 |
| 84 |
583035901 |
LINK.TRANS This part replaces 532170007. Price: $5.99 |
| 95 |
583036101 |
ROD.BYPASS This part replaces 532170015. Price: $17.99 |
| 96 |
532004497 |
RETAINER M This part replaces 532124788. Price: $4.99 |
| 112 |
596039801 |
Washers This part replaces 819091210. Price: $2.99 |
| 120 |
532409149 |
NUT.HEX.FLANGE.3/8-16.LOCKNUT This part replaces 873900600. Price: $3.99 |
| 150 |
532165850 |
BUSHING.BELLCRANK.GRD.DR Price: $4.99 |
| 151 |
596135501 |
Washers This part replaces 819133210. Price: $4.99 |
| 156 |
596218801 |
Washers This part replaces 532166002. Price: $1.99 |
| 158 |
532437458 |
BRACKET.SHIFT.MOUNT This part replaces 532165589. Price: $5.99 |
| 159 |
532444304 |
HUB.SHIFT This part replaces 532183900. Price: $5.99 |
| 161 |
872110407 |
BOLT.CARRIAGE.1/4-20 X 7/8 This part replaces 872140406. Price: $3.99 |
| 162 |
586668901 |
NUT HEX_LRG FLG_1_4-20_LOCK This part replaces 873680400. Price: $3.99 |
| 163 |
596230901 |
Screws This part replaces 874780416. Price: $2.99 |
| 165 |
531149501 |
SERVICE KIT BRACKET BRACKET.PI This part replaces 532165623. Price: $4.99 |
| 166 |
594094101 |
Bolts This part replaces 817490510. Price: $1.99 |
| 167 |
532165588 |
BRACKET.SUPT.SHIFT.CRD Price: $17.99 |
| 168 |
532165492 |
BOLT.SHOULDER.5/16-18X Price: $8.99 |
| 169 |
532165580 |
PLATE.FASTENING.CROSS.SHAFT Price: $5.99 |
| 171 |
596564001 |
Bolts This part replaces 817490608. Price: $2.99 |
| 172 |
583037801 |
SHAFT.ASM This part replaces 532170271. Price: $19.99 |
| 177 |
532165932 |
KEEPER Price: $6.99 |
| 181 |
583099101 |
BRKT.PULLY.V-V-IDL.GRD.CRD This part replaces 532180211. Price: $4.99 |
| 182 |
529846301 |
SERVICE KIT KEEPER.BELT.2.5".V This part replaces 532182682. Price: $5.99 |
| 183 |
532199534 |
PULLEY.V-IDLER. This part replaces 532199532. Price: $32.99 |
| 185 |
583036001 |
LINK.SHIFT This part replaces 532170008. Price: $11.99 |
| 186 |
532165614 |
HUB.TAPERED.ROUND.CRD Price: $4.99 |
| 187 |
817580520 |
BOLT.5/16-18X1.25 Price: $3.99 |
| 197 |
532169613 |
NYLINER SNAP 5/8" ID Price: $4.99 |
| 199 |
596231101 |
BOLT.5/16-18X.910 ST CLR ZINC This part replaces 532169612. Price: $3.99 |
| 200 |
595901501 |
Bolts This part replaces 872140508. Price: $3.99 |
| 207 |
532169845 |
WASHER NYL Price: $2.99 |
| 214 |
583070401 |
SHAFT.ASM.BRAKE.CRD This part replaces 532175609. Price: $11.99 |
| 215 |
583070601 |
ROD.BRAKE.HY This part replaces 532175652. Price: $22.99 |
| 243 |
532190736 |
BRACKET, ANTI-ROTATION Price: $24.99 |
| 252 |
596140201 |
Washers This part replaces 819131616. Price: $2.99 |
| 254 |
817000616 |
SCREW 3/8-16X1 Price: $5.99 |
| 255 |
583070301 |
BRACE.SHAFT.BRAKE.MTG.CRD This part replaces 532175608. Price: $2.99 |
| 258 |
532178062 |
CLIP RETAINER Price: $2.99 |
| 259 |
583099201 |
BRKT.PULLY.IDL This part replaces 532180212. Price: $6.99 |
| 261 |
597025001 |
CLG This part replaces 532131494. Price: $22.99 |
| 262 |
872110622 |
BOLT Price: $3.99 |
| 263 |
817000612 |
SCREW, 3/8-16X3/4 Price: $3.99 |
| 264 |
532197607 |
NEEDS DESCRIPTION Price: Call Us |
| 266 |
583119101 |
SHIELD.IDLER.MOWER.CRD. This part replaces 532182061. Price: $4.99 |
| 279 |
596136301 |
Bolts This part replaces 872110616. Price: $2.99 |
| 292 |
583261101 |
SPACER.NORAM.CRD This part replaces 532400271. Price: $4.99 |
| 295 |
532179114 |
PULLEY IDLER COMPOSITE Price: $19.99 |
