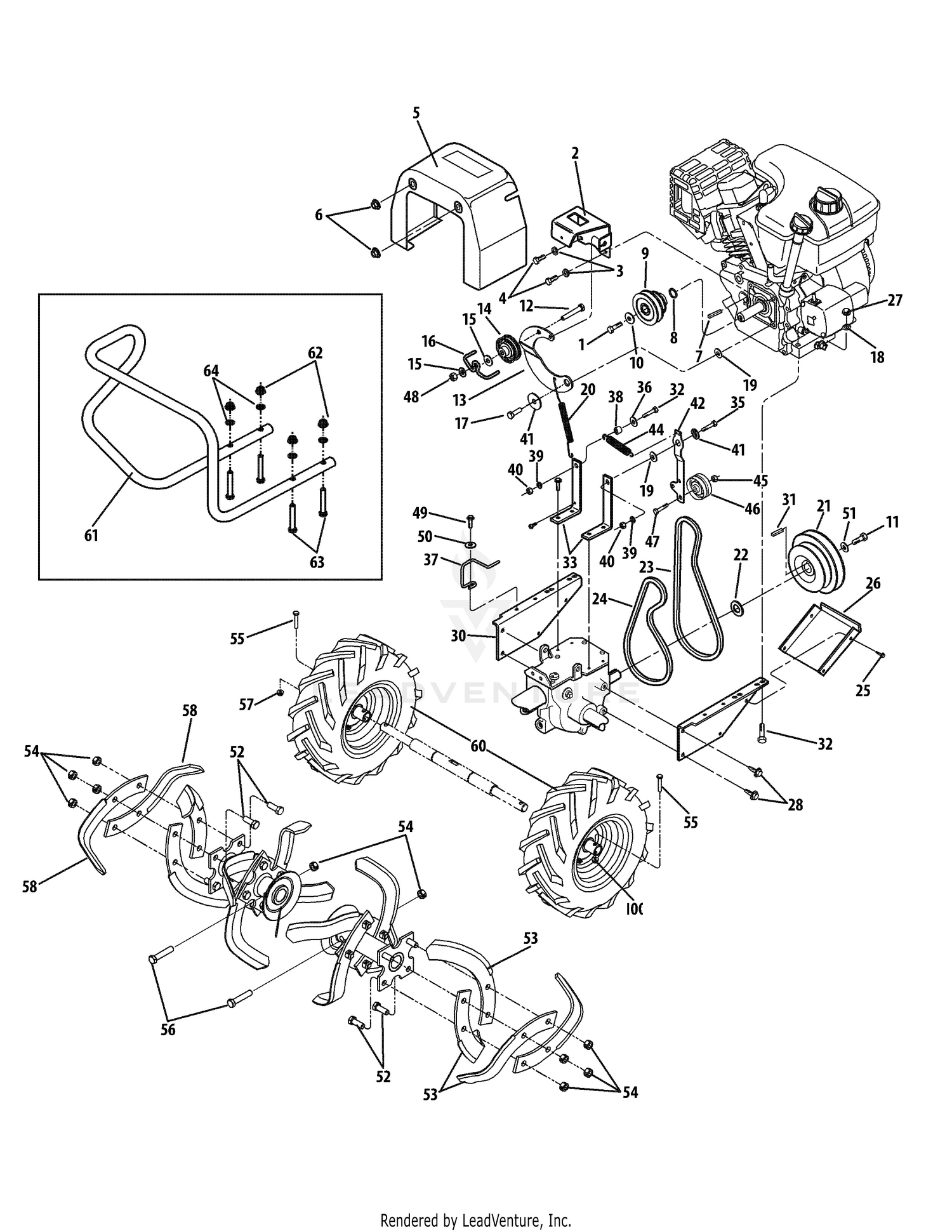

| Ref | Part Number | Description |
|---|
| 2 |
786-04070-0637 |
BELT COVER BRACKET Not Available This part replaces 786-04070. Price: |
| 3 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 4 |
710-0107 |
HEX SCREW 5/16-24 x .50 Not Available Price: |
| 5 |
731-05290 |
Cover Price: $23.70 |
| 6 |
712-3004A |
HEX FLANGE NUT Price: $3.49 |
| 8 |
736-04187 |
Shim Price: $4.36 |
| 11 |
710-0672 |
BOLT- hex. hd., 5/16"-24 x 1-1/8", engine mounting This part replaces 710-04458. Price: $3.85 |
| 12 |
710-3103 |
Hex Head Screw, 5/16-18 x 2 Price: $4.02 |
| 13 |
786-04276 |
Reverse Idler Arm Price: $14.46 |
| 14 |
756-04169 |
Reverse Idler Pulley Price: $22.24 |
| 15 |
736-0159 |
Flat Washer, 5/16 Price: $3.71 |
| 16 |
732-04081 |
Wire Formed Belt Guide Price: $9.09 |
| 17 |
710-0888 |
Hex Head Screw, 5/16-24 x 1 This part replaces 710-0117. Price: $3.86 |
| 18 |
726-0201 |
Speed Nut, .3125 Price: $6.01 |
| 19 |
736-3078 |
Flat Washer, 1-1/8 Price: $3.95 |
| 20 |
732-04077 |
Reverse Return Spring Price: $9.20 |
| 21 |
619-04123 |
Transmission Pulley Price: $145.54 |
| 22 |
736-04079 |
Support Washer Price: $4.13 |
| 23 |
954-04095 |
Reverse Clutch Belt This part replaces 754-04095. Price: $17.19 |
| 24 |
954-04094 |
Forward Clutch Belt This part replaces 754-04094. Price: $28.34 |
| 25 |
1900396 |
SCREW-HW M10-32X.5 Not Available This part replaces 710-04459. Price: |
| 26 |
786-04080-0638 |
Belts/Pulleys Guard This part replaces 786-04080. Price: $18.41 |
| 27 |
712-04063 |
Hex Flange Nut, 5/16-18 Price: $3.56 |
| 28 |
710-04043 |
Hex Flange Screw, 5/16-18 x 3/4 Price: $3.96 |
| 29 |
786-04066 |
ENGINE SUPPORT (LH) Not Available Price: |
| 30 |
786-04067-0637 |
ENGINE SUPPORT (RH) Not Available This part replaces 786-04067. Price: |
| 31 |
714-0133 |
KEY-SQ 3/16X1.50 This part replaces 714-04042. Price: $4.20 |
| 32 |
710-0395 |
Hex Head Screw, 5/16-18 x 2-1/4 Price: $4.08 |
| 33 |
1918774001 |
BRACKET-BELT COVER Not Available This part replaces 786-04277. Price: |
| 34 |
710-1260A |
SCREW 5/16-18 x .750 This part replaces 7101260. Price: $3.34 |
| 35 |
710-0805A |
SCREW 5/16-18 x 1.5 LG This part replaces 710-0805. Price: $3.75 |
| 36 |
736-0275 |
FLAT WASHER This part replaces 7360275. Price: $5.99 |
| 37 |
732-04082 |
Belt Guide Price: $9.67 |
| 38 |
750-04160 |
Pivot Bushing Price: $1.12 |
| 39 |
936-0119 |
LOCK WASHER 5/16 This part replaces 736-0119. Price: $4.29 |
| 40 |
712-3010 |
HEX NUT 5/16-18 This part replaces 7123010. Price: $3.89 |
| 41 |
748-04087A |
Forward Idler Pivot Spacer This part replaces 748-04087. Price: $5.66 |
| 42 |
786-04275-0637 |
Forward Tiller Direction Idler Arm This part replaces 786-04275. Price: $31.56 |
| 43 |
710-04460 |
Self-tapping Screw, #10-24 Price: $3.95 |
| 44 |
732-04078 |
FORWARD RETURN SPRING Not Available Price: |
| 45 |
712-3000 |
Hex Locknut, 5/16-18 Price: $3.90 |
| 46 |
756-04170 |
Forward Idler Pulley Price: $31.29 |
| 47 |
710-0347 |
Screw, 3/8-16 x 1-3/4 Price: $4.39 |
| 48 |
912-0158 |
Hex Lock Nut, 5/16-18 This part replaces 712-0158. Price: $2.83 |
| 49 |
1754128 |
SCR-FLANGE 1/4-20X3/4 GR5 Not Available This part replaces 710-04461. Price: |
| 50 |
736-0463 |
Flat Washer, 1/4 Price: $3.91 |
| 51 |
736-04193 |
Belleville Washer, .827 x .331 x .098 Price: $5.94 |
| 52 |
710-0514 |
Hex Head Screw, 3/8-16 x 1 Price: $3.78 |
| 53 |
742-04223-0637 |
Tines - LH This part replaces 742-04119. Price: $23.75 |
| 54 |
712-3000 |
Hex Locknut, 3/8-16 Price: $3.90 |
| 55 |
710-0606 |
Hex Head Screw, 1/4-20 x 1.5 Price: $4.67 |
| 56 |
710-3096 |
Hex Head Screw, 3/8 -16 x 2 Price: $7.03 |
| 57 |
712-04064 |
Flange Hex Locknut, 1/4-20 Price: $3.64 |
| 58 |
742-04224-0637 |
Tines - RH This part replaces 742-04118. Price: $23.75 |
| 59 |
686-04067 |
Tine Holder Not Available Price: |
| 60 |
N/A |
Wheel Assembly, 13 x 5 x 6 |
| 61 |
749-04193-0637 |
Bumper This part replaces 749-04193. Price: $47.60 |
| 62 |
712-04063 |
Hex Lock Nut, 5/16-18 Price: $3.56 |
| 63 |
710-0395 |
Hex Screw, 5/16-18 x 2-1/4 Price: $4.08 |
