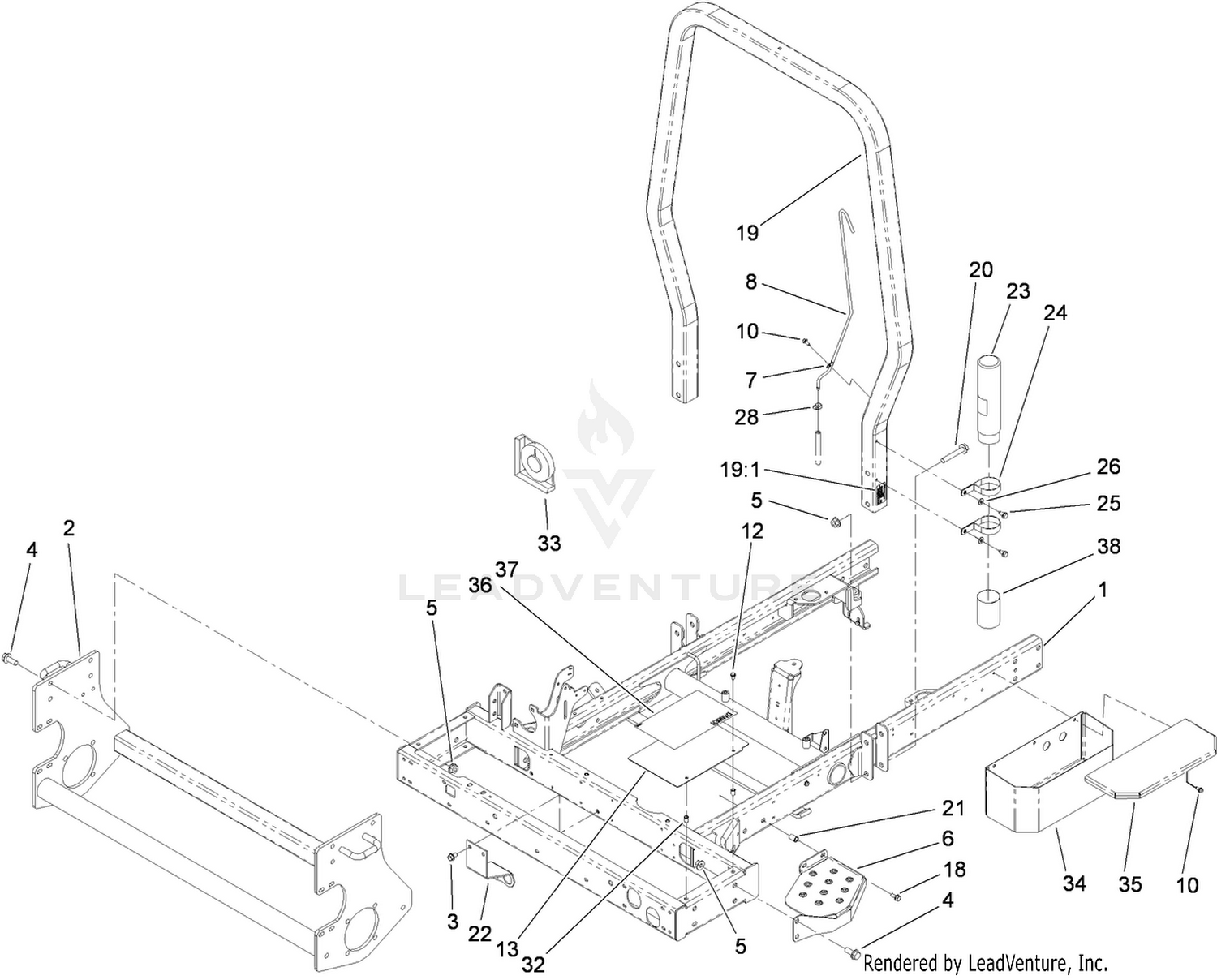

Frame Assembly
Parts (27)
| Ref | Part Number | Description |
|---|---|---|
| 1 | 99-3610-03 | FRAME Price: $2,076.66 |
| 2 | 95-8568-03 | FRAME-LOWER Price: $957.21 |
| 3 | 32144-15 | SCREW-HHFTF Price: $7.99 |
| 4 | 3234-38 | SCREW-HHF Price: $3.33 |
| 5 | 32128-49 | NUT-HHF Price: $1.04 |
| 6 | 99-3375-03 | STEP Price: $81.69 |
| 7 | 2412-72 | CLIP-CLOSED, INSULATED Price: $1.90 |
| 8 | 95-8615 | TUBE-BREATHER Price: $48.92 |
| 10 | 32144-10 | SCREW-HWH Price: $4.29 |
| 12 | 3234-4 | SCREW-HHF Price: $0.50 |
| 13 | 104-0468-01 | COVER-FRAME Price: $26.94 |
| 18 | 3234-5 | SCREW-HHF Price: $0.42 |
| 19 | 107-7833 | ROPS ASM Price: $590.55 |
| 20 | 3234-40 | SCREW-HF Price: $3.38 |
| 21 | 32148-8 | NUT-CLINCH Price: $2.31 |
| 22 | 115-3417-0P | BRACKET-BULKHEAD,SCISSOR This part replaces 115-3417-03. Price: $35.82 |
| 23 | 104-7050 | TUBE-MANUAL Price: $8.76 |
| 24 | 2412-133 | CLAMP-R Price: $3.19 |
| 25 | 32144-70 | SCREW-HWHTF Price: $1.99 |
| 26 | 3256-23 | WASHER-PLAIN Price: $0.28 |
| 28 | 2412-108 | CLAMP-WORM Price: $1.29 |
| 32 | 32148-6 | NUT-CLINCH Price: $1.24 |
| 33 | 99-3503 | INDICATOR-ANGLE Price: $92.89 |
| 34 | 104-4634-03 | TOOLBOX Price: $153.88 |
| 35 | 104-4633-03 | COVER-TOOLBOX Price: $85.18 |
| 36 | 121-3623 | DECAL-DANGER This part replaces 104-0484. Price: $10.99 |
| 37 | 104-5181 | DECAL-DANGER, CE Price: $22.28 |
